Xpresskit DBALL User Manual

Platform: DBALL/DBALL2
Firmware: TL1 Remote Start Ready (RSR) Installation
© 2015 Directed. All rights reserved.
Rev.: 20150709
1
If required for your installation, connect the 10-pin & 12-pin
harnesses to the module. Press and hold the programming
button, then connect the 14-pin harness to the module.
10-pin
D2D
st
1
12-pin
14-pin
nd
2
th
4
rd
3
Warning Against Executing a Hard Reset!
A hard reset will revert the flashed firmware back to its default settings. Depending on the installation, some settings (such
as RFTD and D2D options) may have to be reconfigured. See the Feature & Option List section of this guide.
2
Solid
&
Release
3
Release the programming button. The LED turns ON solid red.

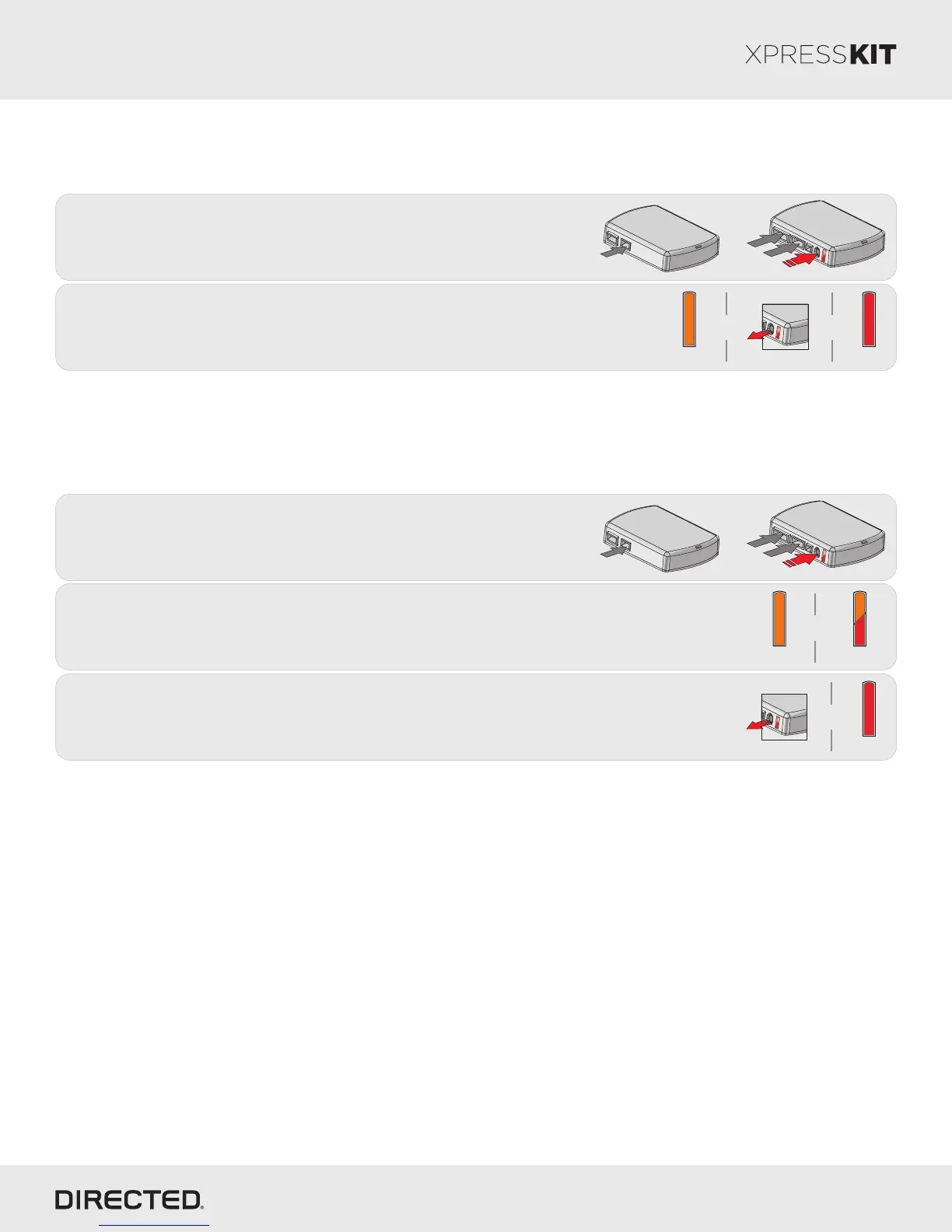

Module Reset
Hard Reset
2
& &
1
Wait 3 seconds until the LED turns ON solid orange then release the
programming button. The LED turns ON solid red.
If required for your installation, connect the 10-pin & 12-pin
harnesses to the module. Press and hold the programming
button, then connect the 14-pin harness to the module.
10-pin
D2D
st
1
12-pin
14-pin
nd
2
th
4
rd
3
A module reset will only erase programming performed in the previous steps. All settings (firmware) and settings flashed
to the module using the web config tool will not be affected.
Solid
Release
Solid
Solid
Flashes
&
Wait 3 seconds until the LED turns ON solid orange, and wait 10 more seconds
until the LED starts to flash orange and red.
Page 12
Vehicles
2013 2012 2011 2010 2009 2008 2007 PK-Immobilizer Bypass-Data No Key Req'd DL-Arm Factory Security DL-Disarm Factory Security DL-Door Lock Control DL-Door Unlock DL-Driver Priority Unlock DL-Hatch Glass Release DL-Trunk / Hatch Release EIPS RS-Remote Start Ready RS-SmartStart RS-Tach / RPM Output SS-Entry Monitoring ALL Door Pins SS-Entry Monitoring Driver Door Pin SS-Entry Monitoring Hood Pin SS-Entry Monitoring Trunk/Hatch Pin SS-Factory Alarm Trigger Monitoring ST-Brake Status (foot brake) ST-Ignition Status
ES 350 (Smart Key) 2 2 2 2 2 2 • • • • • • • • • • • • • • • • • •
Camry (Smart Key) 2 2 2 2 2 • • • • • • • • • • • • • • • • • •
Camry Hybrid 2 2 2 2 2 • • • • • • • • • • • • • • • • • •
Corolla (Smart Key) 1 1 1 1 1 • • • • • • • • • • • • • • • • • •
Highlander (Smart Key) 2 2 2 2 2 2 • • • • • • • • • • • • • • • • • •
Highlander Hybrid 2 2 2 2 2 2 • • • • • • • • • • • • • • • • • •
RAV4 (Smart Key) 1 1 1 1 • • • • • • • • • • • • • • • • •
Legend:
PK: Transponder & Immobilizer Override
DL: OE Door Lock & Alarm Controls
EIPS: Engine Idle Protection System
RS: Remote Start & Engine Controls
SS: Integrated Security & Monitoring
ST: Function/Feature Status
Toyota
Lexus
