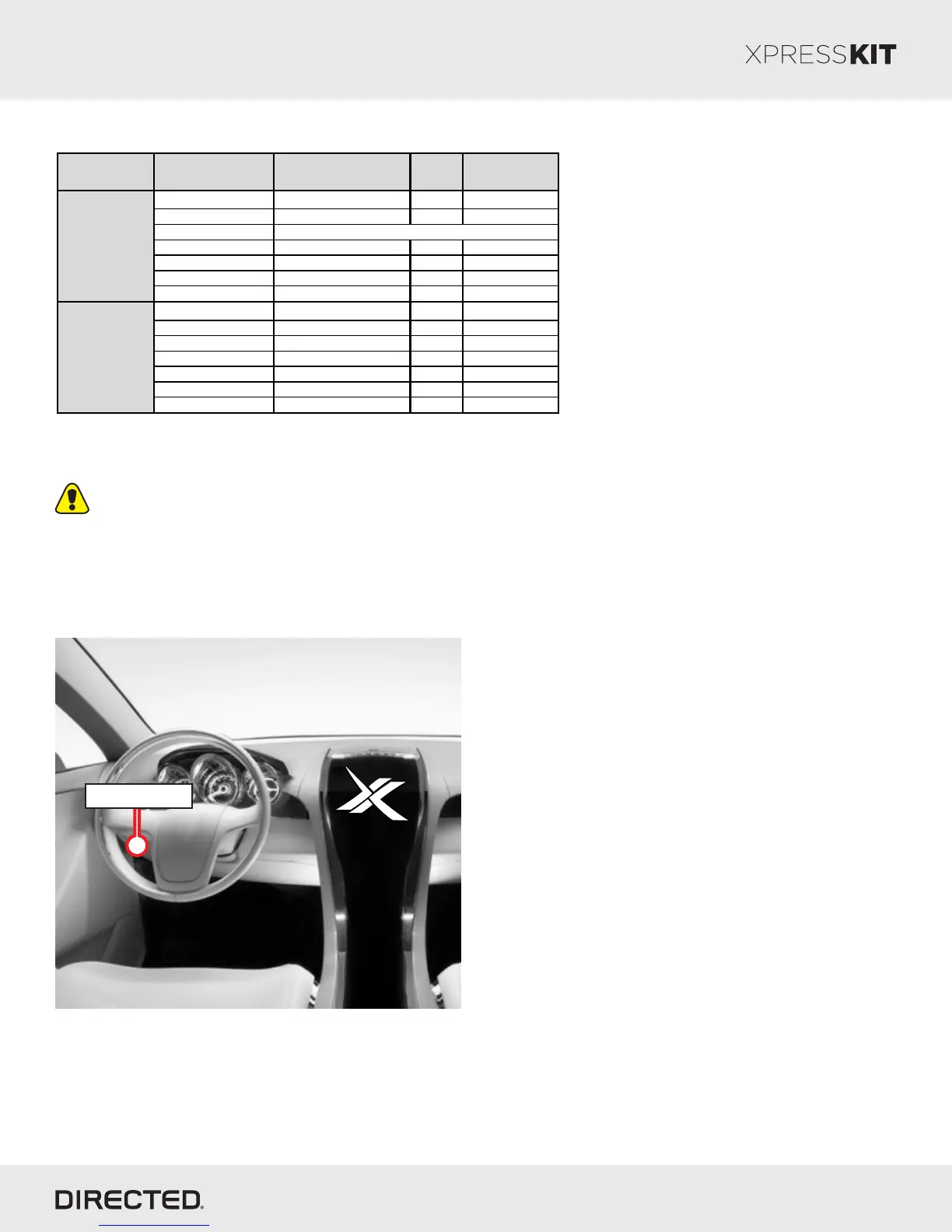

Xpresskit DBALL User Manual

Vehicle Wiring Reference Chart - Type 1
Locating key components in the vehicle
Main Body ECU
Page 6
WARNING
- No takeover feature is available on Push-to-Start vehicles. See Quick Reference Guide (QRG) at the end of this
guide.
- To remote start the engine, all doors must be closed, including rear hatch.
Wire function Connector
Pin
position
Wire color
CAN High Diagnostic Connector 6 Light Green
CAN Low Diagnostic Connector 14 White
Autolight
Parking Lights Headlight Switch (E8) 18 Brown or White
Push-to-Start at PTS button 7 White
STSW* E52 at Main Body ECU 4 Black or White
12V 2G at fuse box 1 White
CAN High Diagnostic Connector 6 Black
CAN Low Diagnostic Connector 14 White
Autolight Headlight Switch (E12) 19 Green
Parking Lights Headlight Switch (E12) 18 White
Push-to-Start at PTS button 7 White
STSW* E17 at Main Body ECU 4 Red
12V IG at fusebox 1 White
*STSW: Starter Switch Wire
Toyota RAV4
(Smart Key)
2009-2012
Toyota Corolla
(Smart Key)
2009-2013
Not equipped
Platform: DBALL/DBALL2
Firmware: TL1 Remote Start Ready (RSR) Installation
© 2015 Directed. All rights reserved.
Rev.: 20150709
Vehicles
2013 2012 2011 2010 2009 2008 2007 PK-Immobilizer Bypass-Data No Key Req'd DL-Arm Factory Security DL-Disarm Factory Security DL-Door Lock Control DL-Door Unlock DL-Driver Priority Unlock DL-Hatch Glass Release DL-Trunk / Hatch Release EIPS RS-Remote Start Ready RS-SmartStart RS-Tach / RPM Output SS-Entry Monitoring ALL Door Pins SS-Entry Monitoring Driver Door Pin SS-Entry Monitoring Hood Pin SS-Entry Monitoring Trunk/Hatch Pin SS-Factory Alarm Trigger Monitoring ST-Brake Status (foot brake) ST-Ignition Status
ES 350 (Smart Key) 2 2 2 2 2 2 • • • • • • • • • • • • • • • • • •
Camry (Smart Key) 2 2 2 2 2 • • • • • • • • • • • • • • • • • •
Camry Hybrid 2 2 2 2 2 • • • • • • • • • • • • • • • • • •
Corolla (Smart Key) 1 1 1 1 1 • • • • • • • • • • • • • • • • • •
Highlander (Smart Key) 2 2 2 2 2 2 • • • • • • • • • • • • • • • • • •
Highlander Hybrid 2 2 2 2 2 2 • • • • • • • • • • • • • • • • • •
RAV4 (Smart Key) 1 1 1 1 • • • • • • • • • • • • • • • • •
Legend:
PK: Transponder & Immobilizer Override
DL: OE Door Lock & Alarm Controls
EIPS: Engine Idle Protection System
RS: Remote Start & Engine Controls
SS: Integrated Security & Monitoring
ST: Function/Feature Status
Toyota
Lexus
