VESDA VLI Product Guide VESDA by Xtralis
60 www.xtralis.com

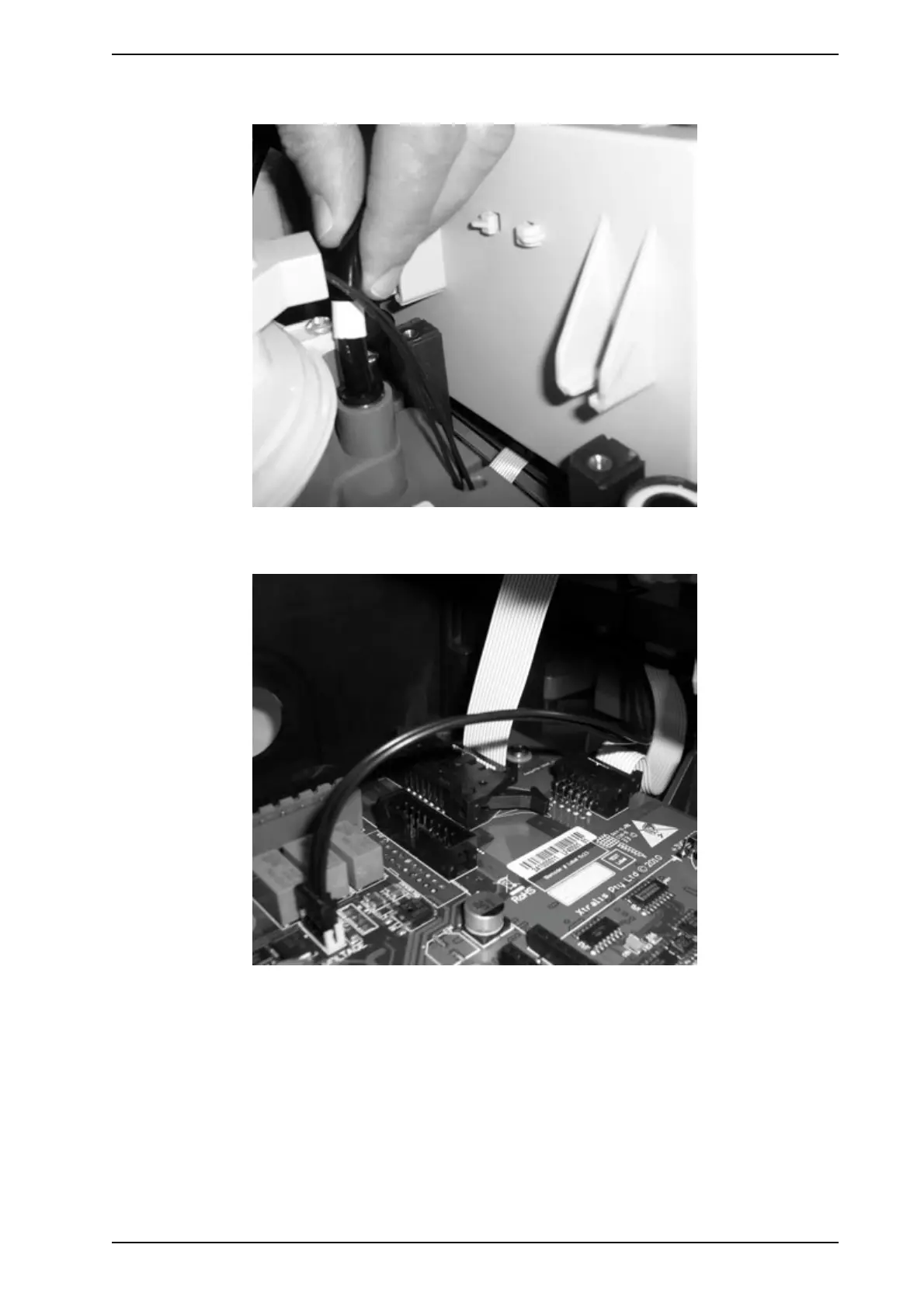

8. Gently remove the Chamber. To prevent the tube from kinking, lift the chamber while removing the tube
(Figure 7-11).
Figure 7-11: Lift Chamber
9. Unlock the connection arms and disconnect the ribbon cable from the main board (Figure 7-12).
Figure 7-12: Disconnect Ribbon Cable
