VESDA by Xtralis VESDA VLI Product Guide
www.xtralis.com 61
Install a new Chamber Assembly
1. Ensure that the 24V input is still disconnected.
2. Plug the ribbon cable from the chamber into the main board (Figure 7-12). Ensure that the cable connector
is fully in and arms are locked.
3. Fold the ribbon cable under the chamber and hook it on the tabs provided (Figure 7-13).

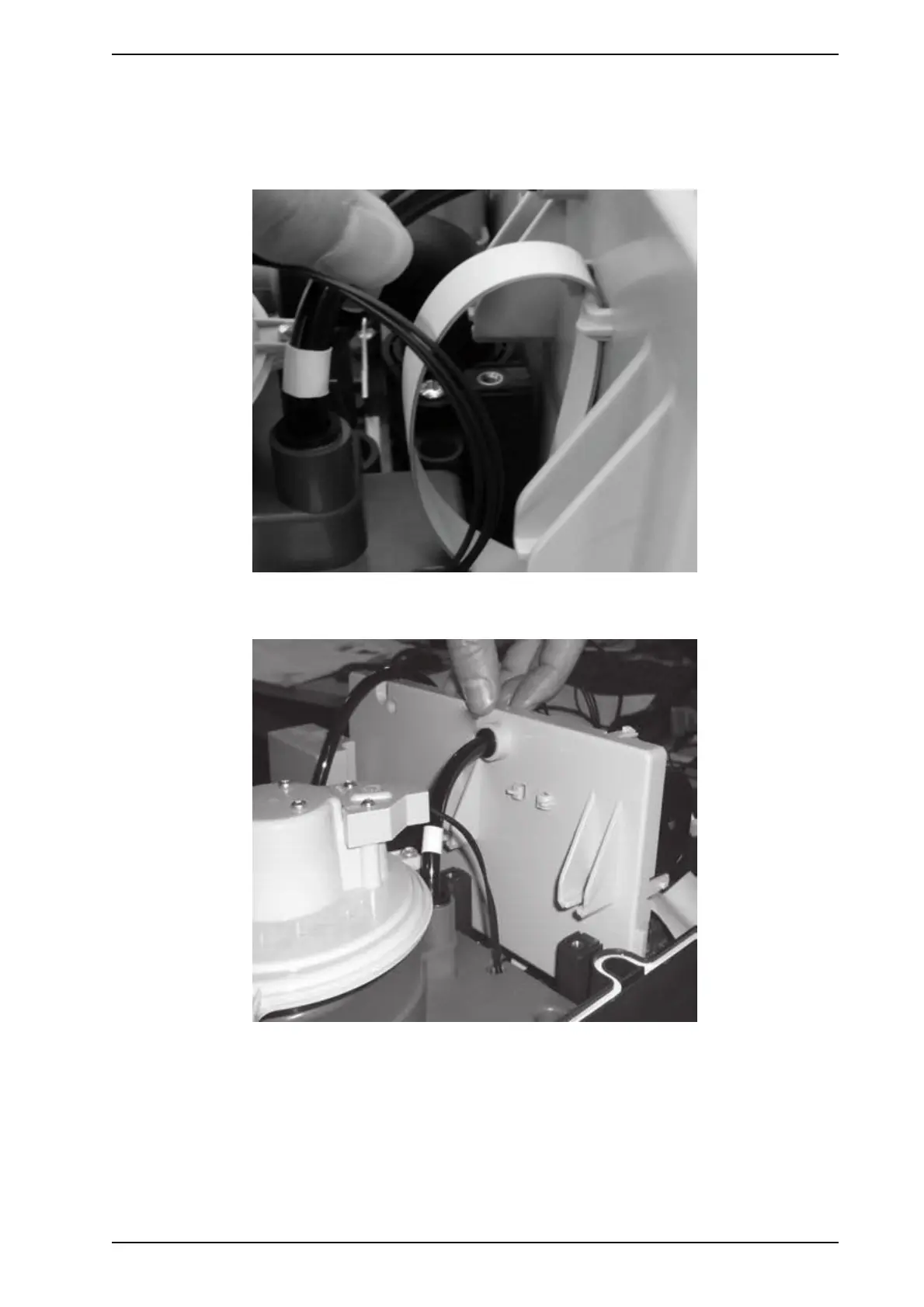

Figure 7-13: Ribbon Cable Hooks
4. Insert chamber in slots but hold the chamber 20mm from bottom (Figure 7-14).
Figure 7-14: Insert Chamber
