5. Insert the short tube into the Cartsick connector under the fan and lower the chamber while inserting
(Figure 7-15).

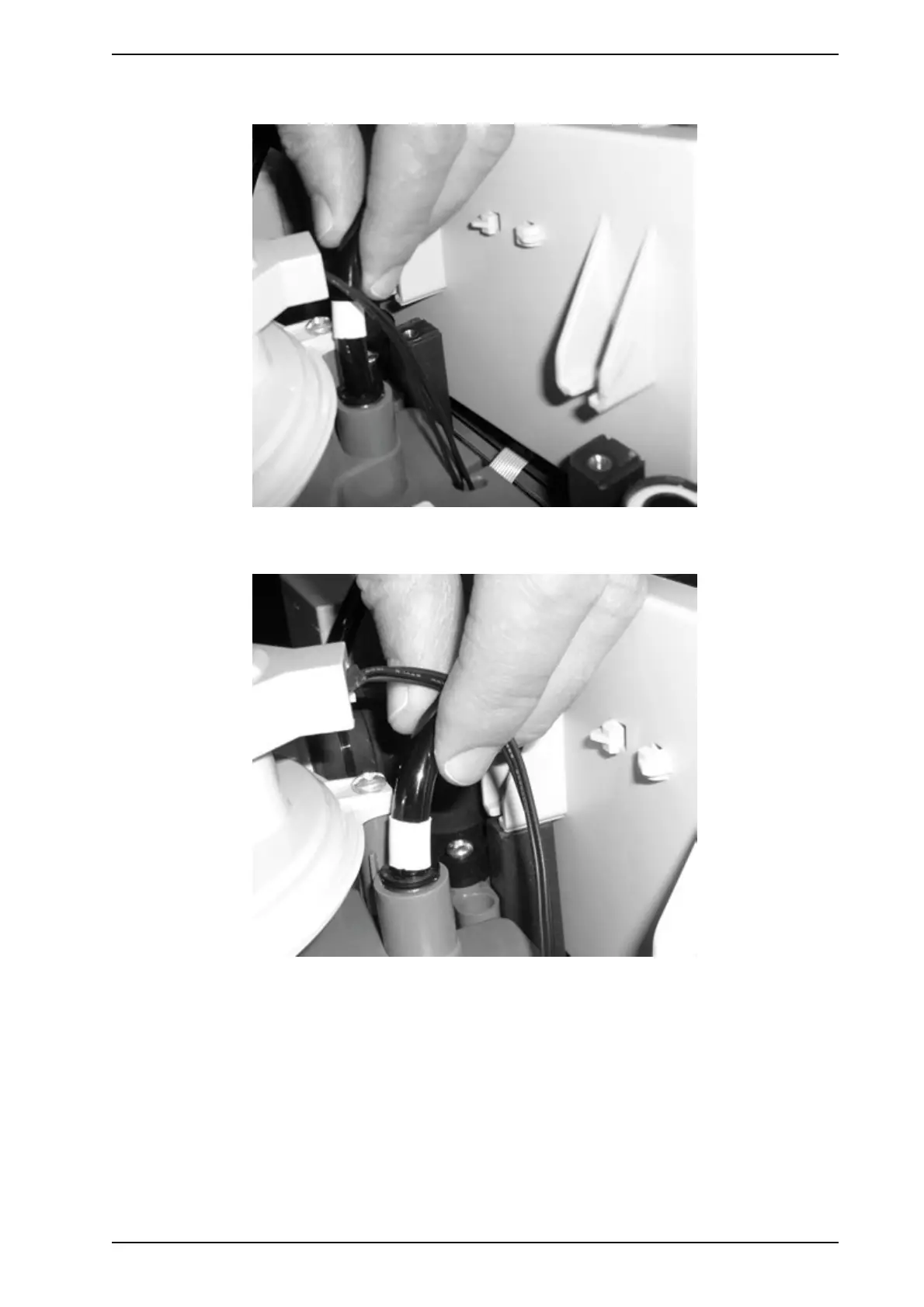

Figure 7-15: Lift Chamber
6. Insert the short tube until the white tape touches the black ring on the Carstick connector (Figure 7-16).
Figure 7-16: Insert Short Tube
