3-1
Chapter 3 – Installation
This chapter illustrates the installation of and the options for the 9460/9462. The figures
on the next several pages show the internal and external components on the front and
back panels of the unit to help you locate features relevant to installation.
Front Panel
The 9460/9462 comes with a NEMA 4/4X/12 and IP65 sealed front panel. The panel
protects the system’s interior when the system is properly panel mounted.

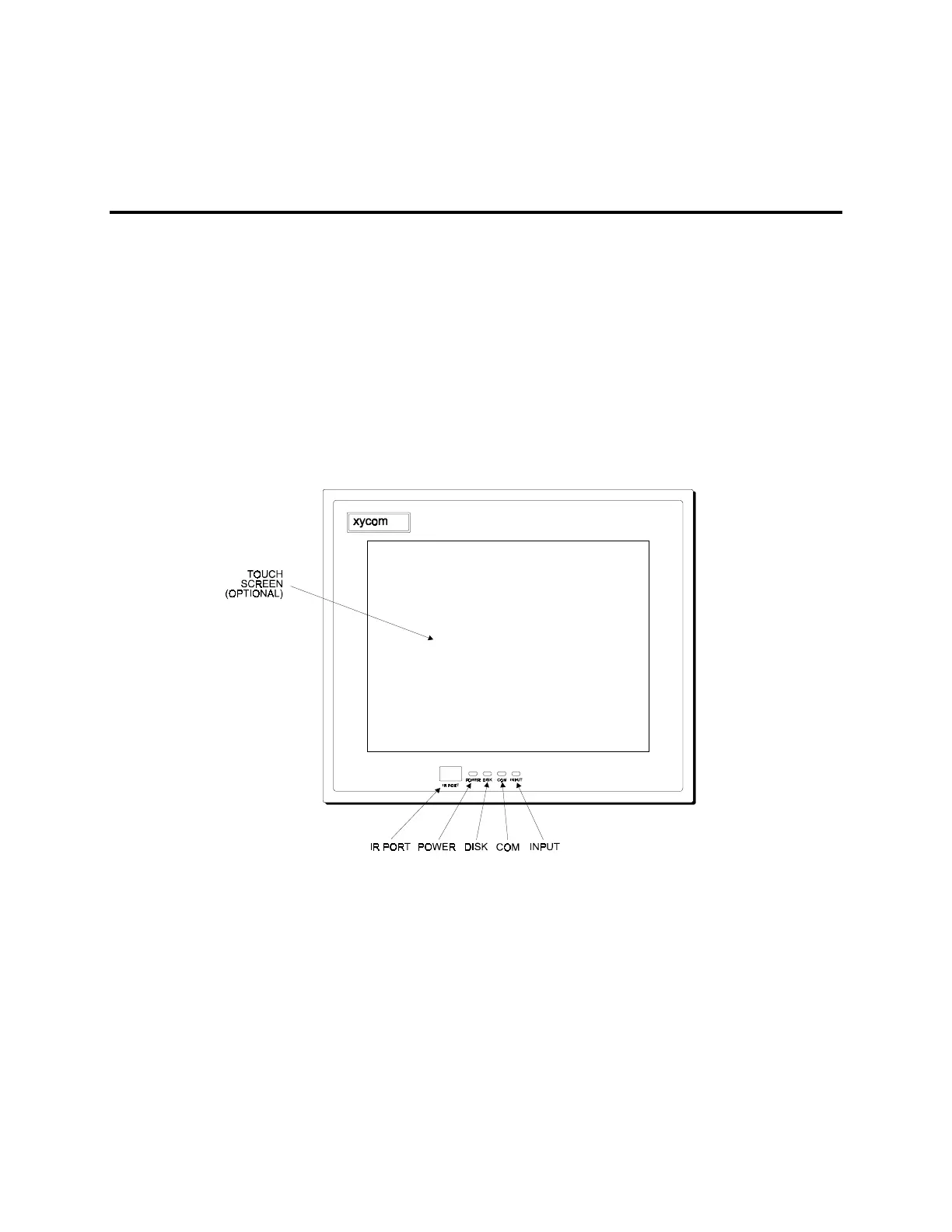

9460/9462 Front Panel
Figure Chapter 3 -1. 9460/9462 Front Panel
