Chapter 3 – Installation
3-15
Custom Logo
You have the option to place a custom label on the unit. Refer to the following figure for
the dimensions and recommended requirements for a customized label. Once a custom-
ized label is procured, place the new label over the “Xycom” label (inside the recessed
area).

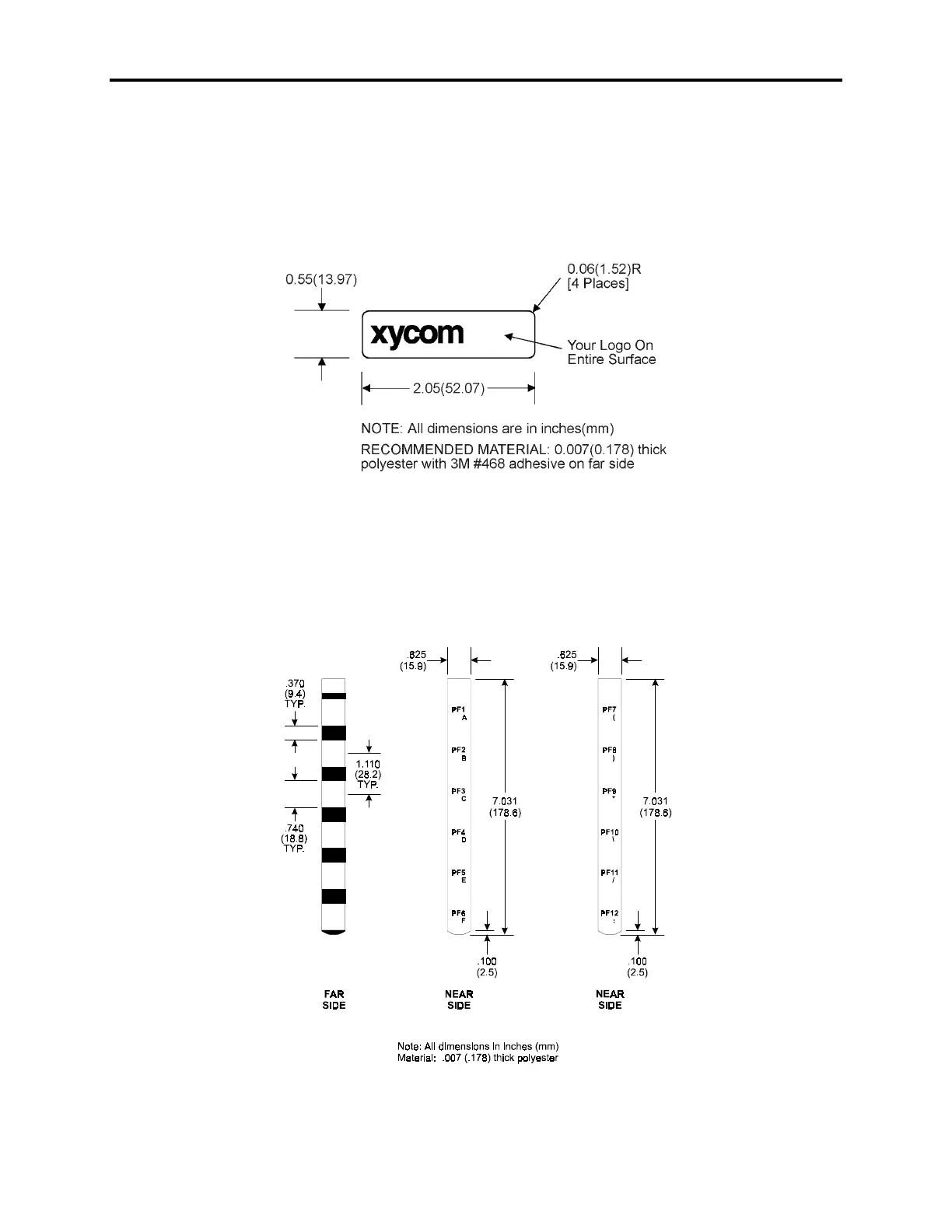

Figure Chapter 3 -11. Logo Label Dimensions
Customized Keypad Inserts (9460KP/9462KP only)
You can customize your keypad with keypad inserts. Refer to the following figures for
insert dimensions and installation.
Figure Chapter 3 -12. 9460KP/9462KP Keypad Inserts with Dimensions (PF1 - PF20)
