Chapter 3 – Installation
3-29
9460KP/9462KP

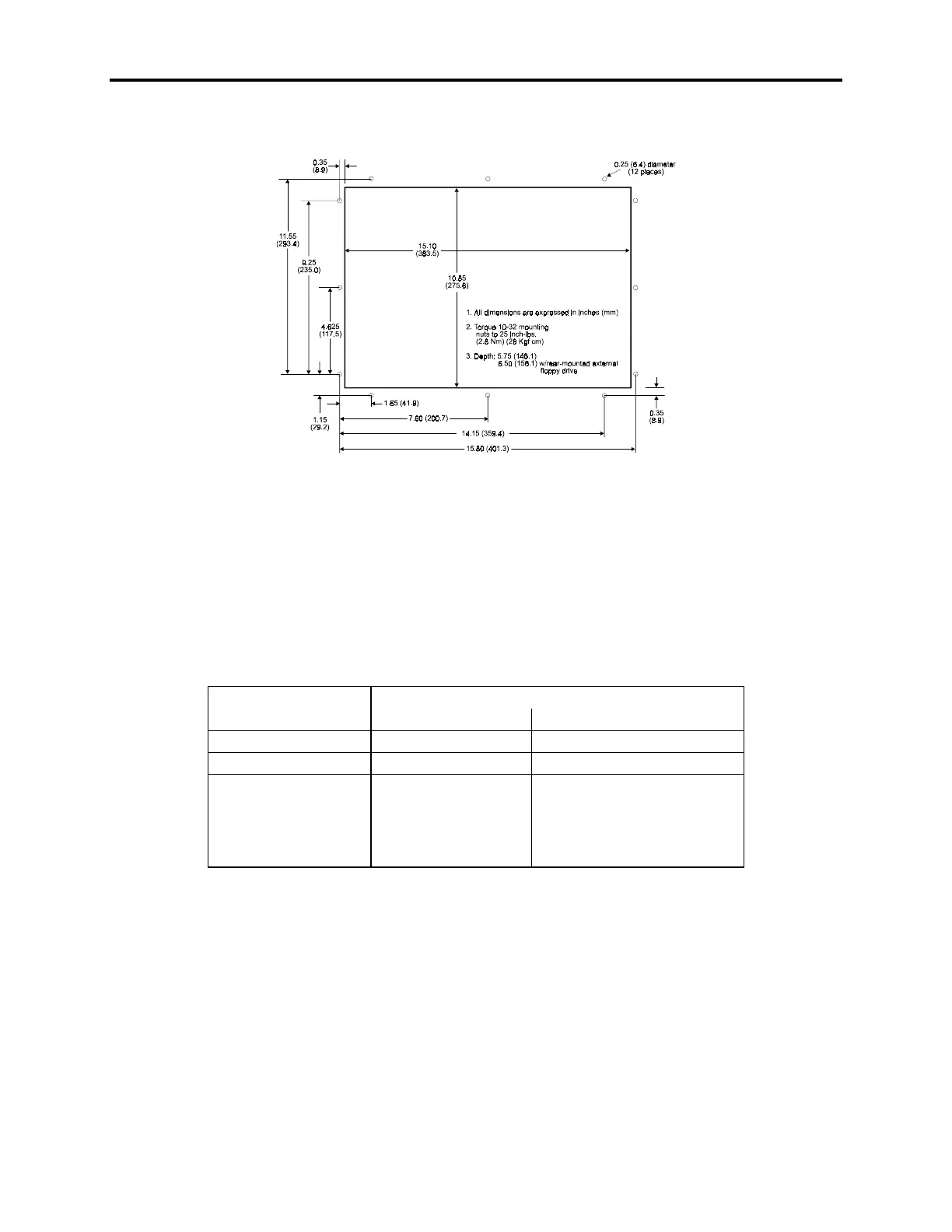

Figure Chapter 3 -19. 9460KP/9462KP System Cutout Dimensions
Power Supply
The power supply provides 80 watts of output throughout the system’s temperature
range. The expansion power is limited as shown in the following table.
Available Expansion Current
Voltage Available Current
AHIP4+ AHIP5+
+5VDC 6.17A 30.9W 1.54A 7.7W
+12 VDC 1.88A 22.6W 1.82A 21.84W
-5VDC plus -12 VDC
combined
0.71A 8.5W
total not to exceed
46 watts
(based on Am5x86
133Mhz Processor)
0.72A 8.64W
total not to exceed
36 watts
(based on 200 MHz
Pentium MMX Processor)
Hazardous Location Installations
Xycom designed the systems to meet the requirements of Class I, Division 2 Hazardous
Locations applications. Division 2 locations are those locations that are normally non-
hazardous, but could become hazardous due to accidents that may expose the area to
flammable vapors, gases or combustible dusts.
These systems have been designed as non-incendiary devices. They are not intrinsically
safe and should never be operated within a Division 1 (normally hazardous) location
when installed as described here. Nor should any peripheral interface device attached to
these systems be located within Division 1 locations unless approved and/or certified di-
