Xylem HYDROVAR HV2.1f - Page 13

13

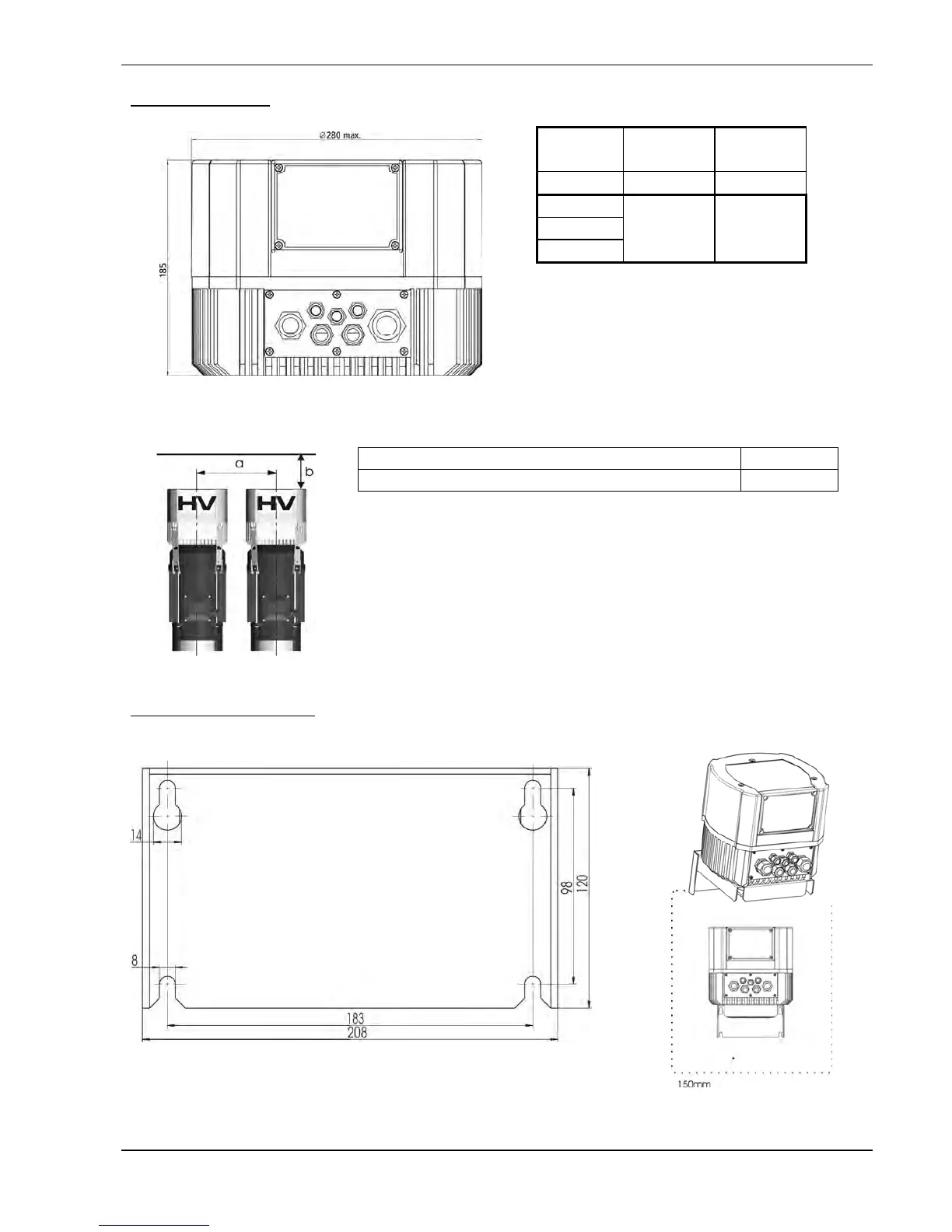

HV 3.5/3.7/3.11 f
Type Weight HV +
WM-Kit
[kg] [kg]
HV 3.5f
HV 3.7f
HV 3.11f
10,00 12,60
All dimensions in millimetres! Drawings are not in scale!
a … centre-distance between the HYDROVAR 430 [mm]
b … expansion space for maintenance 120 [mm]
Wall-mounting version:
high: 305 [mm] width: 280 [mm] depth: 280 [mm]
Mounting space around the HYDROVAR: 150 [mm]
