Xylem Lowara Genyo plus - Component Identification; Identification Code and Main Components

en - Original instructions
10 Genyo plus, Additional Installation, Operation and Maintenance Instructions

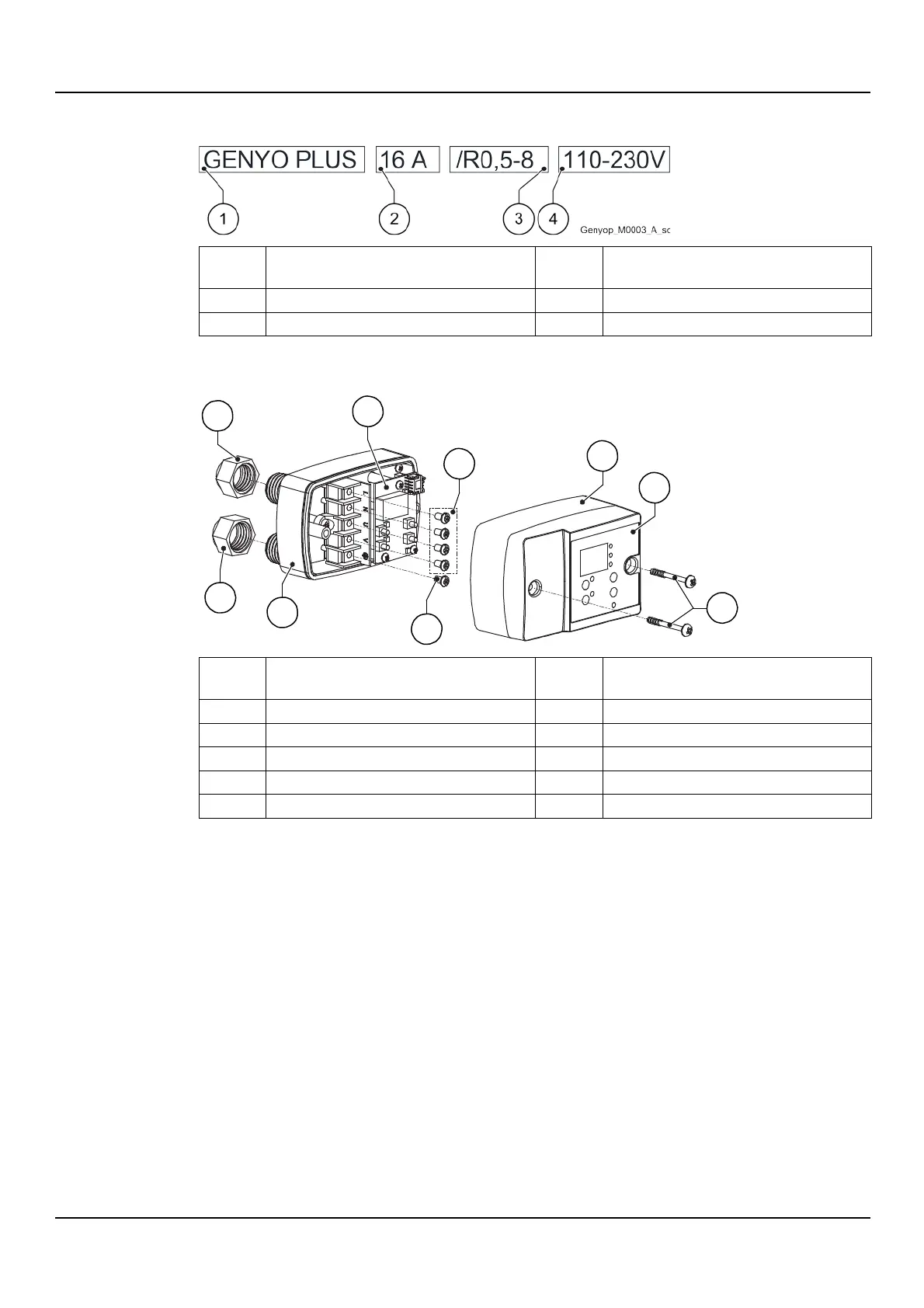

3.3 Identification code
Position
number
Description
Position
number
Description
1
Series name
3
Pressure adjustment range, bar
2
Maximum current of the pump unit, A
4
Voltage supply range 50/60Hz, V
3.4 Names of the main components
Position
number
Description
Position
number
Description
1
Cable gland of the U
in
power supply cord
6
Screws of the cover
2
Electronic circuit boards
7
Cable gland of the U
OUT
motor power supply cord
3
Fastening screws of the power supply cords
8
Base
4
Cover
9
Fastening screw of the ground cable
5
Control panel
-
-
Genyop_M0004_A_ds
6
1
2
4
7
8
9
3
5
