Xylem Lowara Genyo plus - Power Supply Connection Steps

en - Original instructions
18 Genyo plus, Additional Installation, Operation and Maintenance Instructions

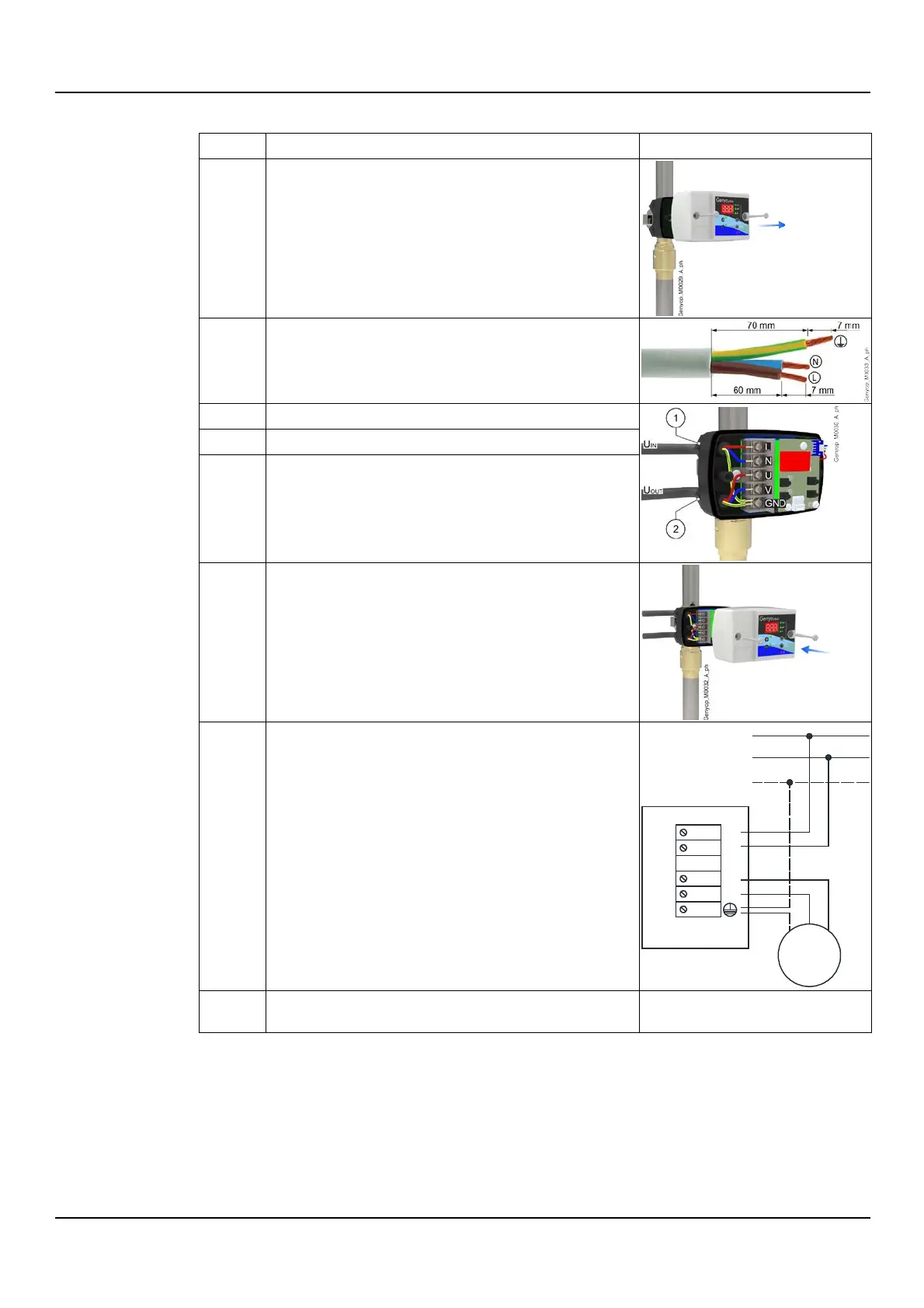

Power supply connection of the unit
Phase
Action
Illustration
1
Undo the screws to remove the cover.
2
Unsheathe the conductors.
3
Insert the Uin power supply cord in cable gland 1.
4
Insert the Uout motor power supply cord in cable gland 2.
5
Insert the cores of the conductors in the respective holes and tighten the
screws.
Tightening torque: 1.2 Nm (10.6 lbf·in).
6
Put the cover back in place, refastening the screws.
Tightening torque: 1.5 Nm (13.3 lbf·in).
7
Connect the unit to the mains power supply referring to the diagram.
8
Tighten cable glands 1 and 2.
Tightening torque: 4 Nm (35.4 lbf·in).
Genyop_M0031_A_ph
L
N
U
V
IN
OUT
L1
N
PE
GENYO PLUS
M
1~
1X110/230 V
50/60 Hz, PE
