Yale Assure Lever YRL216 - Installation Step 8: Install Cylinder; YRL216 Cylinder Installation; YRL236 Key-Free Cylinder Installation

P/N YRL-PB-MNL-0017 Rev C
Part of ASSA ABLOY
10

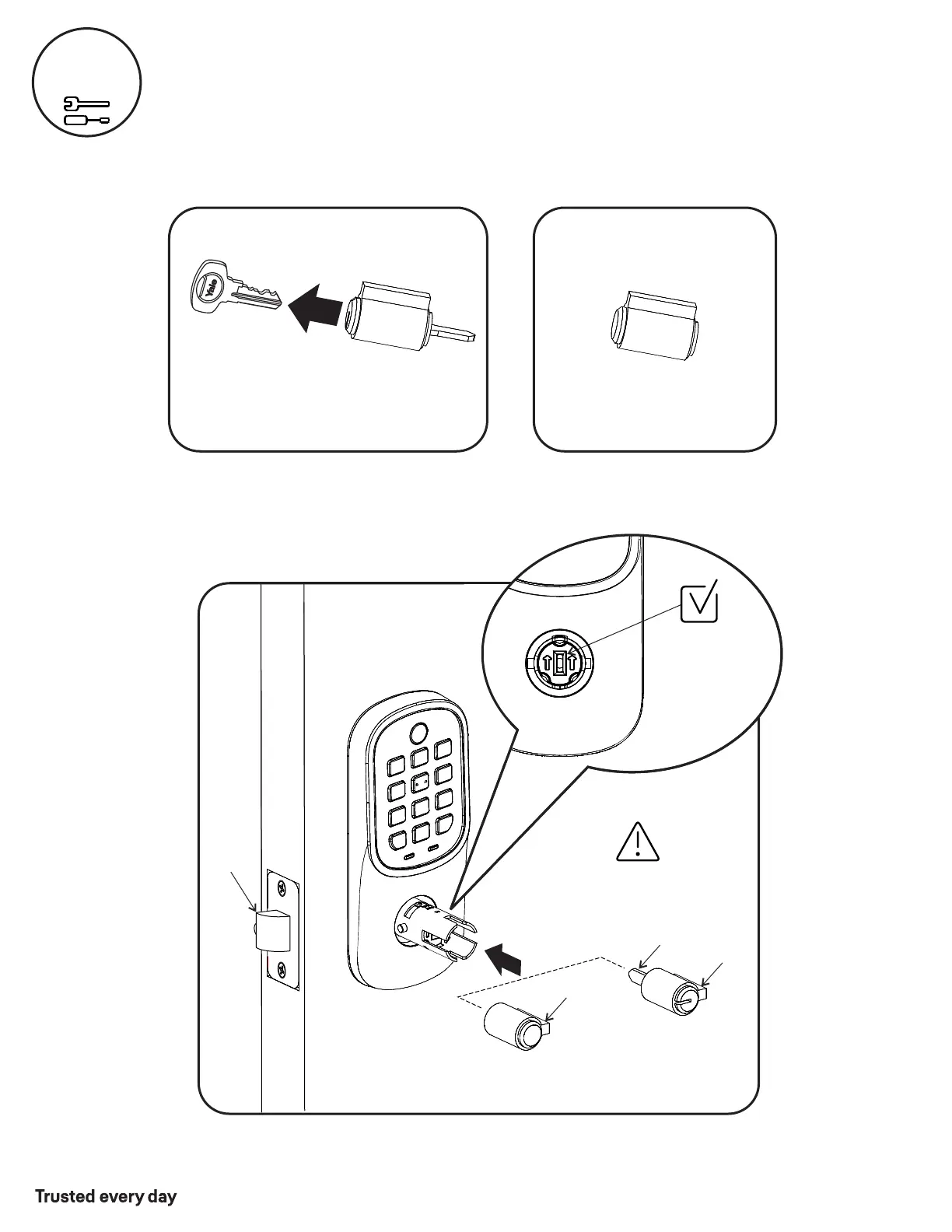

Install Cylinder (YRL216)
or Key-Free Cylinder (YRL236)
8
Outside of
Right Hand Door
Cylinder must be installed
with bar away from latch
Latch
Bar
Bar
Tailpiece
Cylinder
(YRL216)
Key-Free Cylinder
(YRL236)
or
YRL216 Cylinder YRL236 Key-Free Cylinder
Remove key from cylinder.
OR
There is no key.
Cylinder
Tailpiece
(YRL216) must
slide into
vertical slot
