Table 3. Operator Controls (See Figure 9) (Continued)
Item
No.
Item Function

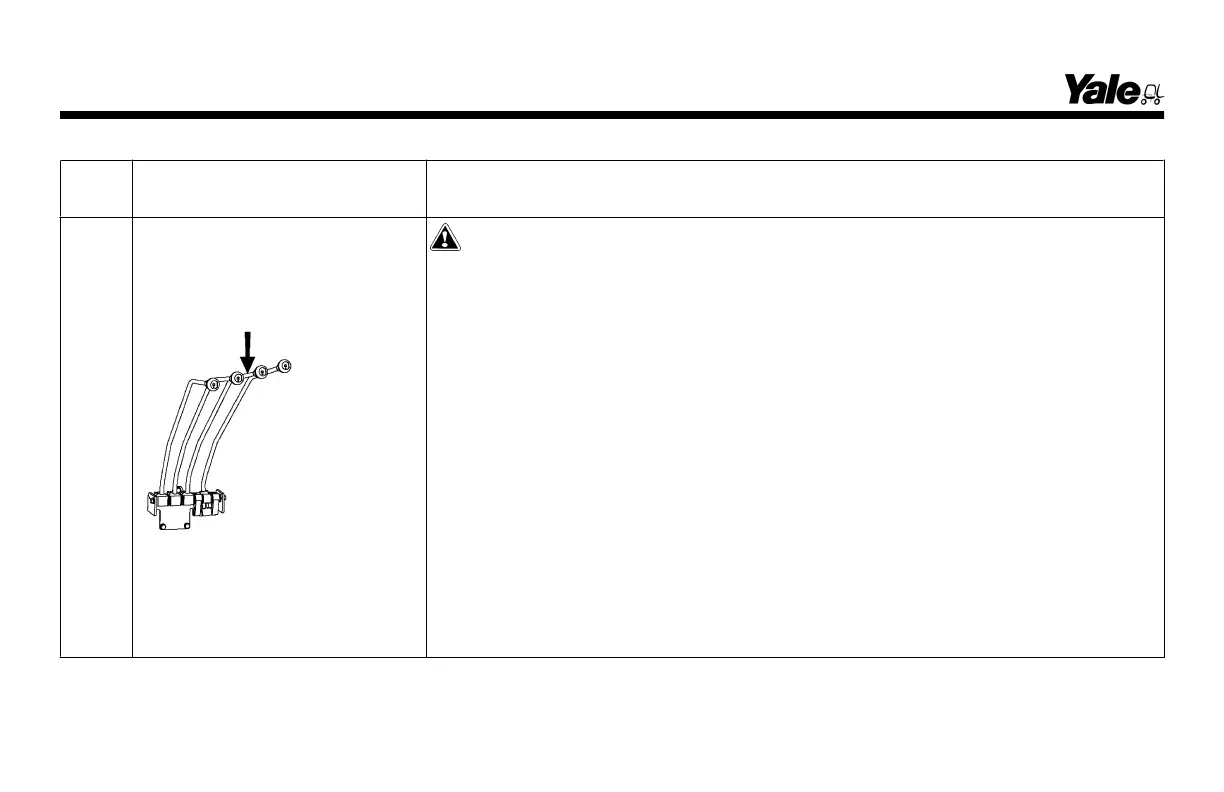

10 Manual Control Lever for
Auxiliary Hydraulic
Functions (3rd lever).
See Figure 9.
WARNING
A manual control lever with a detent must be installed when an attachment
with a clamp is installed. See your dealer for Yale lift trucks to get the correct
control lever.
NOTE: Manual hydraulic control levers are standard on the trucks covered in this
manual (see Figure 9).
The third manual control lever is installed to the right of the manual tilt control lever.
This lever can have two methods of operation, depending on the attachment.
NOTE: If truck is equipped with only three levers and clamp attachment, the last
(3rd) lever controls clamp functions.
Control Lever with a Detent - Attachments with a clamp action: The lever is
spring-loaded toward the operator. The lever is operated by moving it to the right,
then forward and back.
Control Lever without a Detent - Attachments without a clamp action: The lever
is operated by moving it forward and back.
