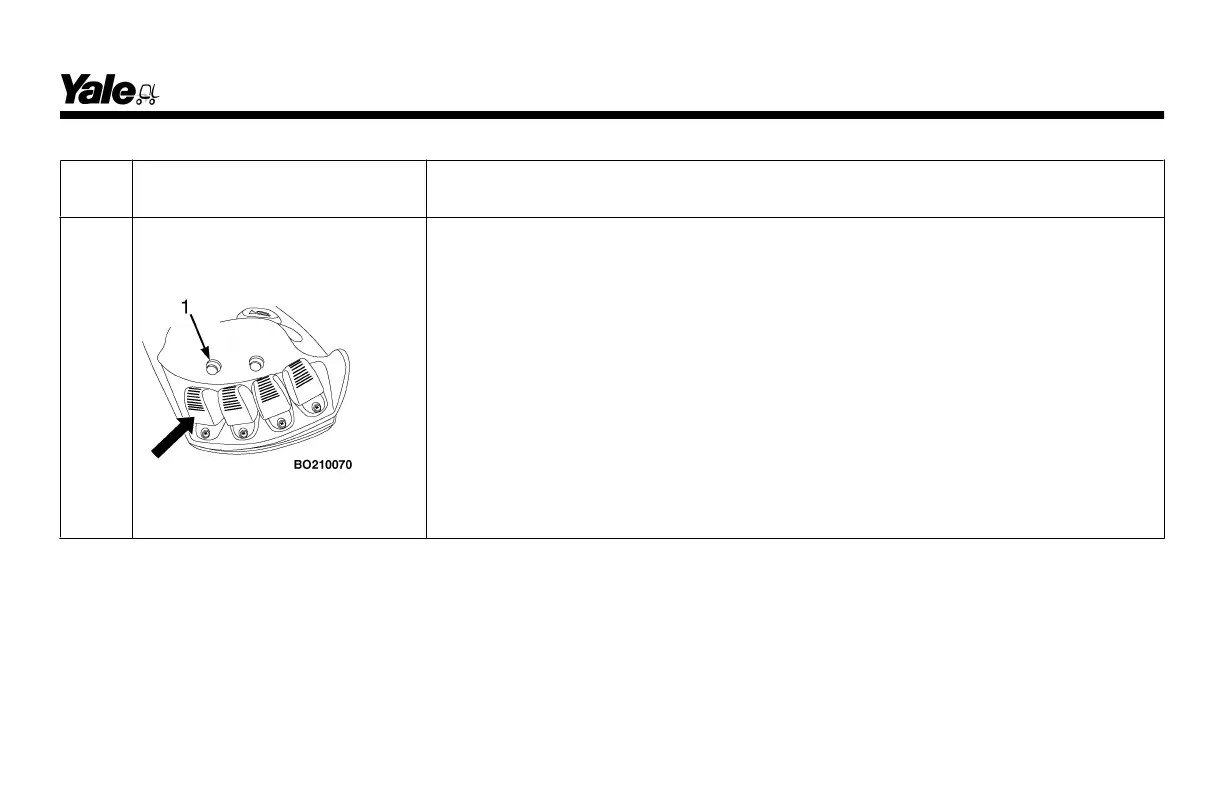

Table 3. Operator Controls (See Figure 9) (Continued)
Item
No.
Item Function
11 Electronic Control Mini-Lever for
Auxiliary Hydraulic Functions
(4th lever). See Figure 9.
1. OVERRIDE BUTTON
The fourth electronic control lever is installed to the right of the third electronic control
lever. This lever can have two methods of operation, depending on the attachment.
NOTE: To operate the mini-levers, the operator must be on the seat and the arm
rest must be in the down position.
NOTE: If truck is equipped with four levers and clamp attachment, the last (4th) lever
controls clamp functions.
Trucks with Clamp Attachment: To engage the clamp, move the mini-lever back-
ward. To disengage the clamp, press the override button located directly behind the
mini-lever and push the mini-lever forward.
Trucks without Clamp Attachment: The lever is operated by moving it forward and
back. The lever is spring-loaded to return to the neutral position when released.
Model Description
53
