4-66

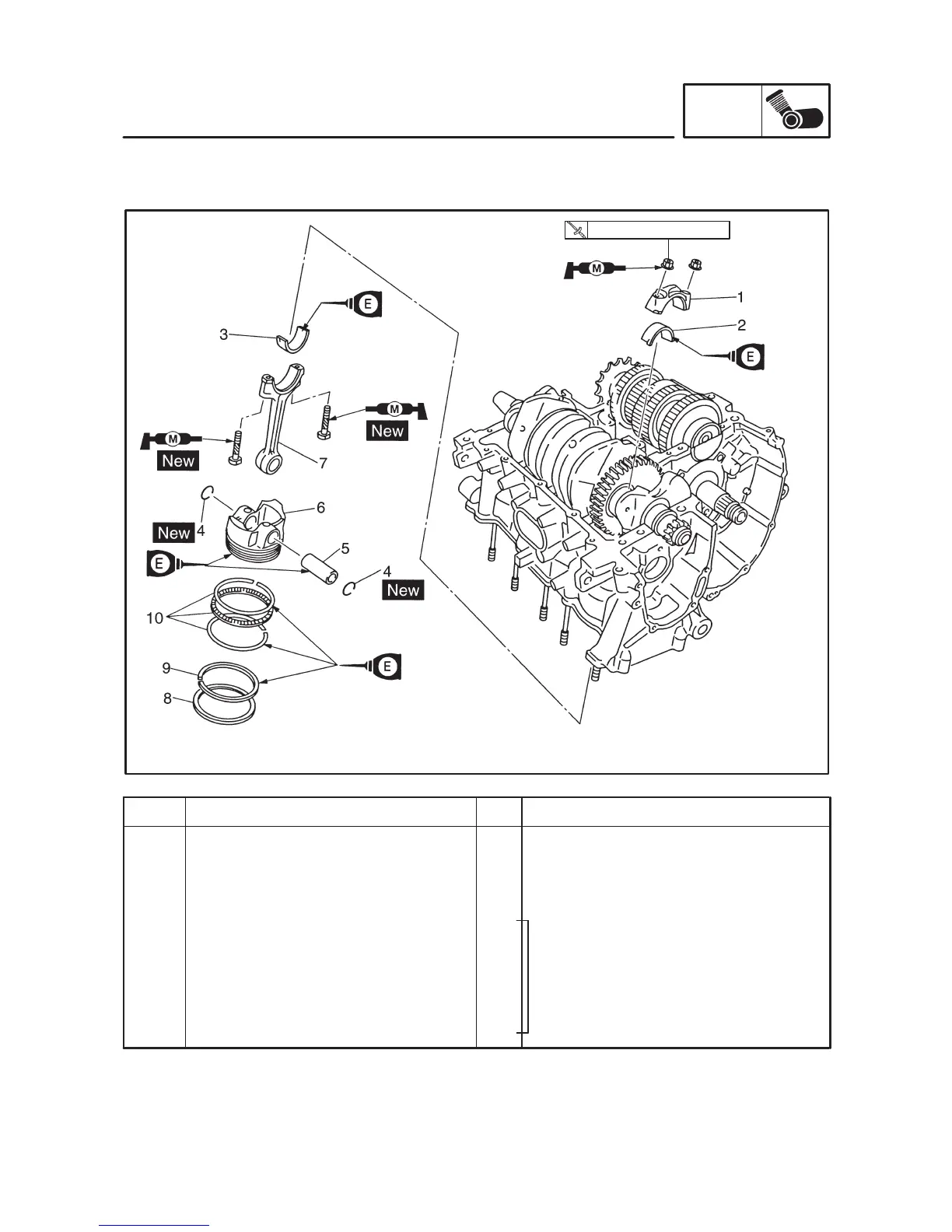

CONNECTING RODS AND PISTONS
ENG
Order Job/Part Q’ty Remarks
1
2
3
4
5
6
7
Removing the connecting rods and
pistons
Lower crankcase
Connecting rod cap
Big end lower bearing
Big end upper bearing
Piston pin clip
Piston pin
Piston
Connecting rod
4
4
4
8
4
4
4
Remove the parts in the order listed.
Separate.
Refer to “CRANKCASE”.
Refer to “REMOVING/INSTALLING THE
CONNECTING RODS AND PISTONS”.
15 Nm (1.5 mSkg)+90_
EAS00252
CONNECTING RODS AND PISTONS
