Yamaha 1999 YZF-R6 Service Manual

6-13
CARBURETORS
CARB
NOTE:
NOTE:
EAS00502

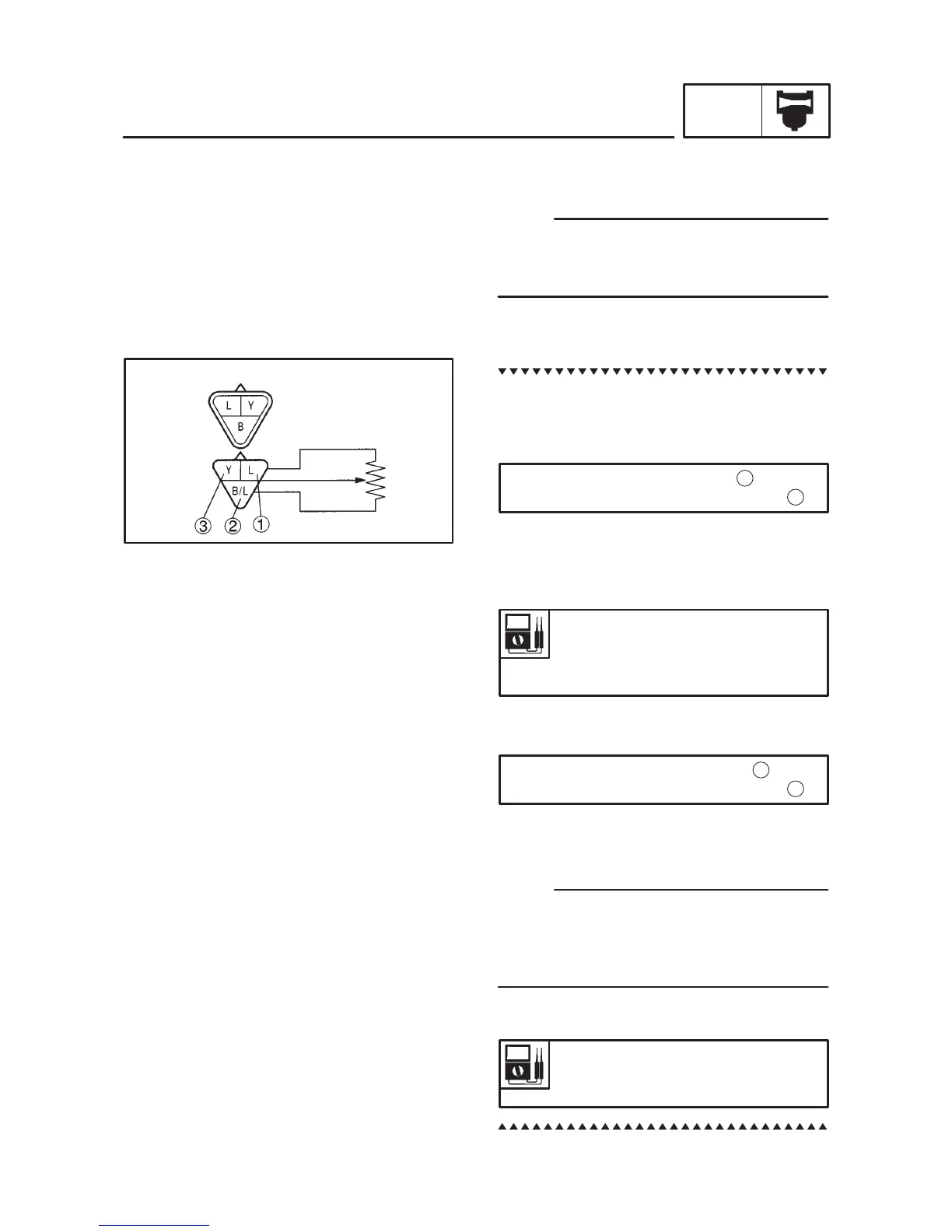

CHECKING AND ADJUSTING THE THROTTLE
POSITION SENSOR
Before adjusting the throttle position sensor, the
engine idling speed should be properly ad-
justed.
1. Check:
S throttle position sensor
(installed on the carburetor)
a. Disconnect the throttle position sensor cou-
pler.
b. Connect the pocket tester (Ω 1k) to the
throttle position sensor.
Tester positive probe  blue
1
Tester negative probe  black/blue
2
c. Measure the throttle position sensor maxi-
mum resistance.
Out of specification  Replace the throttle
position sensor.
Throttle position sensor maximum
resistance
4.0 X 6.0 kΩ at 20_C
(blue – black/blue)
d. Connect the pocket tester (Ω 1k) to the
throttle position sensor.
Tester positive probe  yellow
3
Tester negative probe  black/blue
2
e. While slowly opening the throttle, check that
the throttle position sensor resistance is
within the specified range.
Check mainly that the resistance changes grad-
ually when turning the throttle, since the read-
ings (from closed to wide-open throttle) may dif-
fer slightly from those specified.
Out of specification or the resistance changes
abruptly  Go to step (2).
Throttle position sensor resistance
0 X 5 ± 1.0 kΩ at 20_C
(yellow – black/blue)

Yamaha 1999 YZF-R6 Specifications

General

Bore x Stroke	65.5 mm x 44.5 mm
Compression Ratio	12.4:1
Ignition	Digital TCI
Transmission	6-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Front Brakes	Dual 298 mm discs
Front Tire	120/60-ZR17
Rear Tire	180/55-ZR17
Wheelbase	1, 380 mm (54.3 in)
Seat Height	820 mm (32.3 in)
Engine Type	liquid-cooled, DOHC, inline 4-cylinder
Rear Suspension	Single shock
Rear Brakes	220mm disc
Fuel Capacity	17 l (4.5 US gal)
Dry Weight	169 kg
