7-70
SWINGARM AND DRIVE CHAIN
CHAS
NOTE:
NOTE:
NOTE:
NOTE:
Before removing the drive sprocket, drive chain,
and rear wheel, measure the drive chain slack
and the length of a tenlink section of the drive
chain.
EC573000

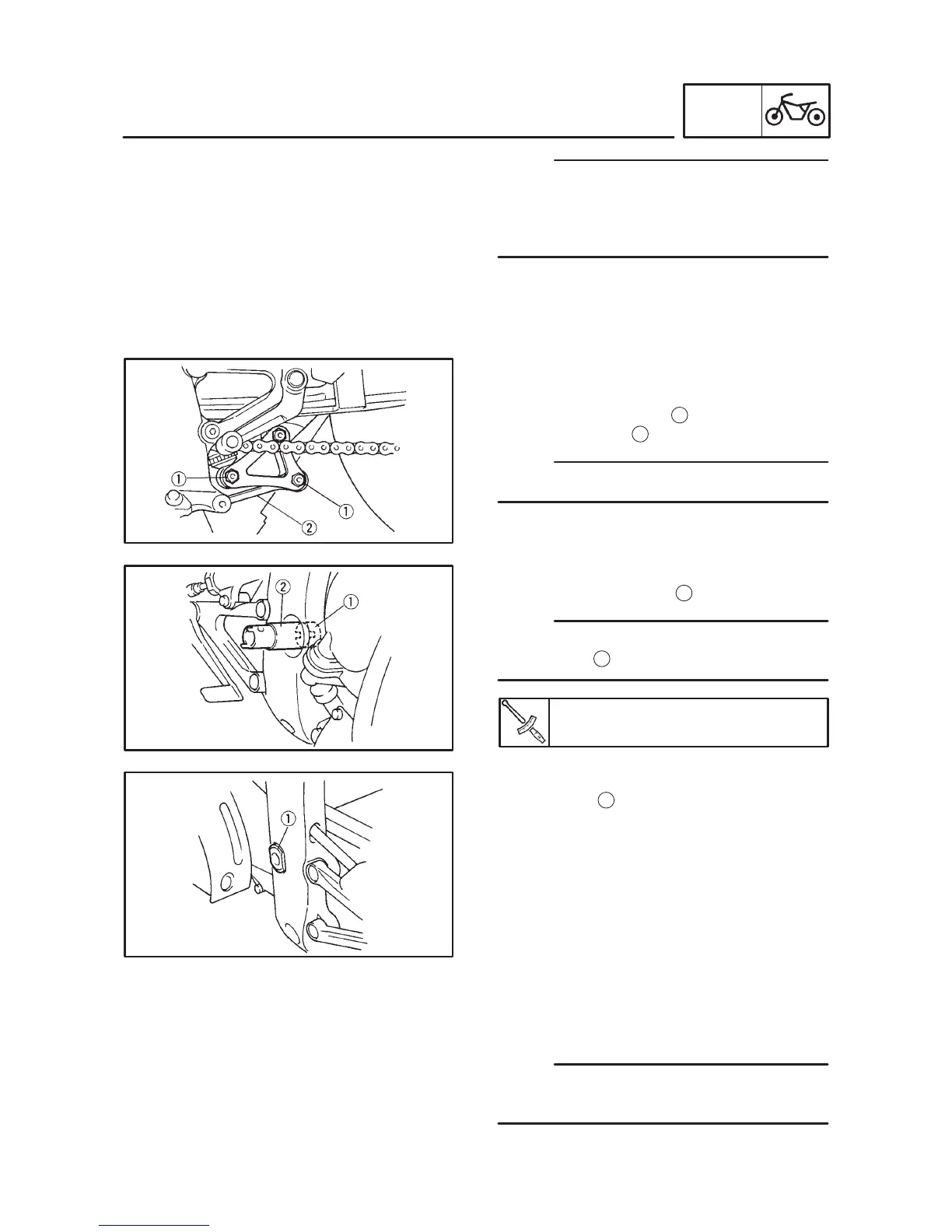

REMOVING THE SWINGARM
1. Remove:
Bolt (connecting rod)
1
Connecting rod
2
Remove the bolt while holding the swingarm.
2. Loosen:
Pivot shaft adjust bolt
1
Loosen the pivot shaft adjust bolt using a pivot
shaft wrench
2
Pivot shaft wrench:
90890-01471
3. Remove:
Pivot shaft
1
Swingarm
EAS00704
REMOVING THE DRIVE CHAIN
1. Remove:
drive chain
Only cut the drive chain if or the swingarm is to
be replaced.
