Yamaha 1999 YZF-R6 Service Manual

8-11
1 Main switch
5 Battery
6 Main fuse
9 Starting circuit cutoff relay
11 Sidestand switch
14 CDI unit
15 Ignition coil #1
16 Ignition coil #2
17 Ignition coil #3
18 Ignition coil #4
19 Spark plugs
20 Pick up coil
21 Neutral switch
56 Ignition fuse
63 Engine stop switch
66 Diode 2

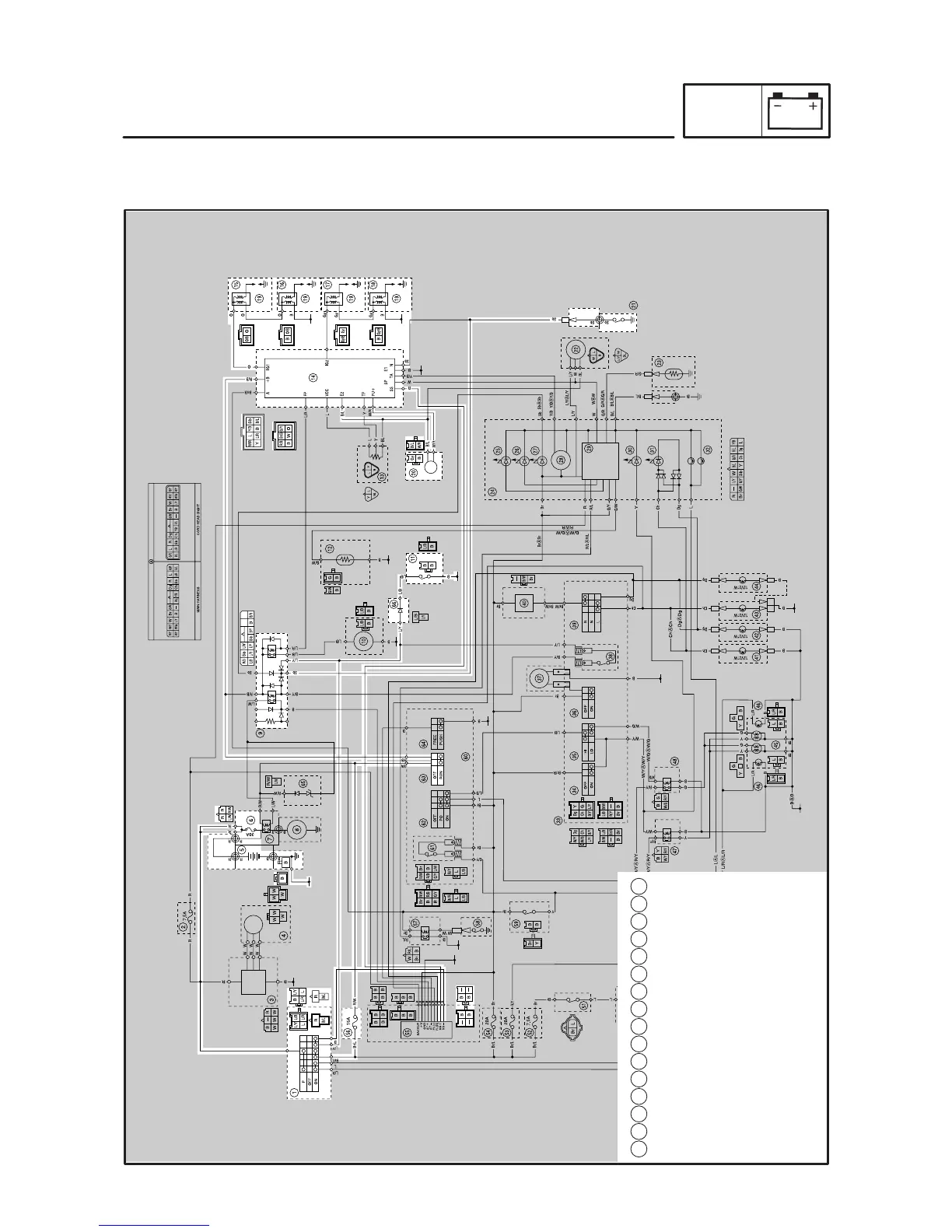

IGNITION SYSTEM
ELEC
EB802001
IGNITION SYSTEM
CIRCUIT DIAGRAM

Yamaha 1999 YZF-R6 Specifications

General

Bore x Stroke	65.5 mm x 44.5 mm
Compression Ratio	12.4:1
Ignition	Digital TCI
Transmission	6-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Front Brakes	Dual 298 mm discs
Front Tire	120/60-ZR17
Rear Tire	180/55-ZR17
Wheelbase	1, 380 mm (54.3 in)
Seat Height	820 mm (32.3 in)
Engine Type	liquid-cooled, DOHC, inline 4-cylinder
Rear Suspension	Single shock
Rear Brakes	220mm disc
Fuel Capacity	17 l (4.5 US gal)
Dry Weight	169 kg
