Yamaha CL Series User Manual

Support for Shure AXT400, QLXD4 and ULXD4
V4.1 Supplementary Manual
7
This section explains how to control Shure wireless mics that do not output Dante
signals.
Example: Connecting the output of an AXT400 to OMNI 1 on a CL console, and
assigning the signal to input channel 1.

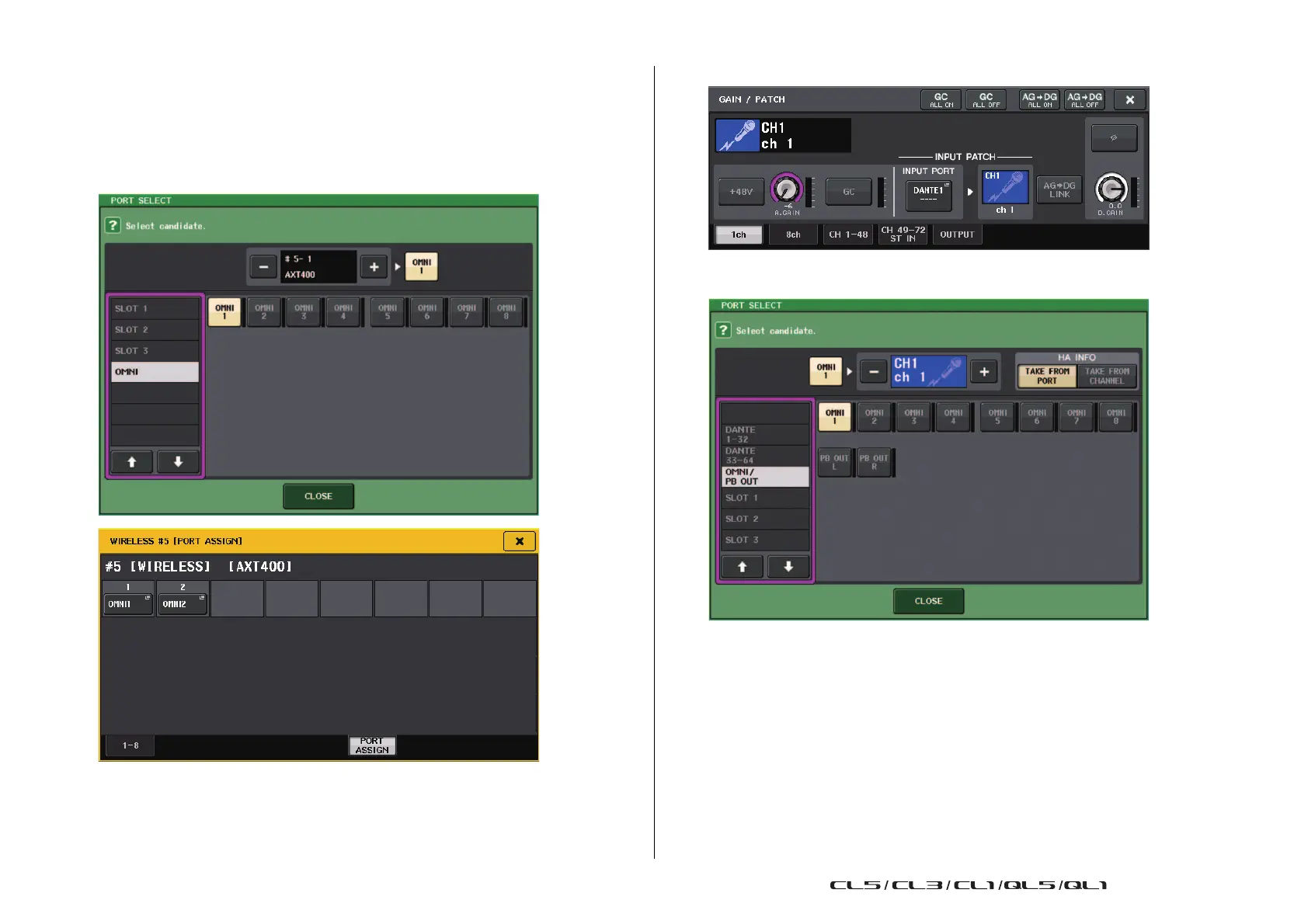

Press the PORT ASSIGN button to open the PORT SELECT window.
Select the port to which the output from the AXT400 is connected (OMNI 1).
Access the GAIN/PATCH window.
Press the INPUT PORT button, and on the PORT SELECT window select the port to which
the output signal from the AXT400 is connected (OMNI 1).

Yamaha CL Series Specifications

General

Dante Network	Yes
Touch Screen	Yes
Type	Digital Mixing Console
Control Surface	Yes
Mixing Channels	CL5: 72, CL3: 64, CL1: 48
Local I/O	CL5: 8 in / 8 out, CL3: 8 in / 8 out, CL1: 8 in / 8 out
USB Recording	Yes
EQ	4-band parametric EQ per channel
Effects	Yes
DAW Control	Yes
Word Clock	Yes
Input Channels	CL5: 72, CL3: 64, CL1: 48
Output Channels	CL5: 34, CL3: 34, CL1: 34
Sampling Rate	44.1kHz, 48kHz, 88.2kHz, 96kHz
Connectivity	Dante, USB
Recallable Scenes	Yes
Expandability	Yes
