Multiple-unit Hookup Examples

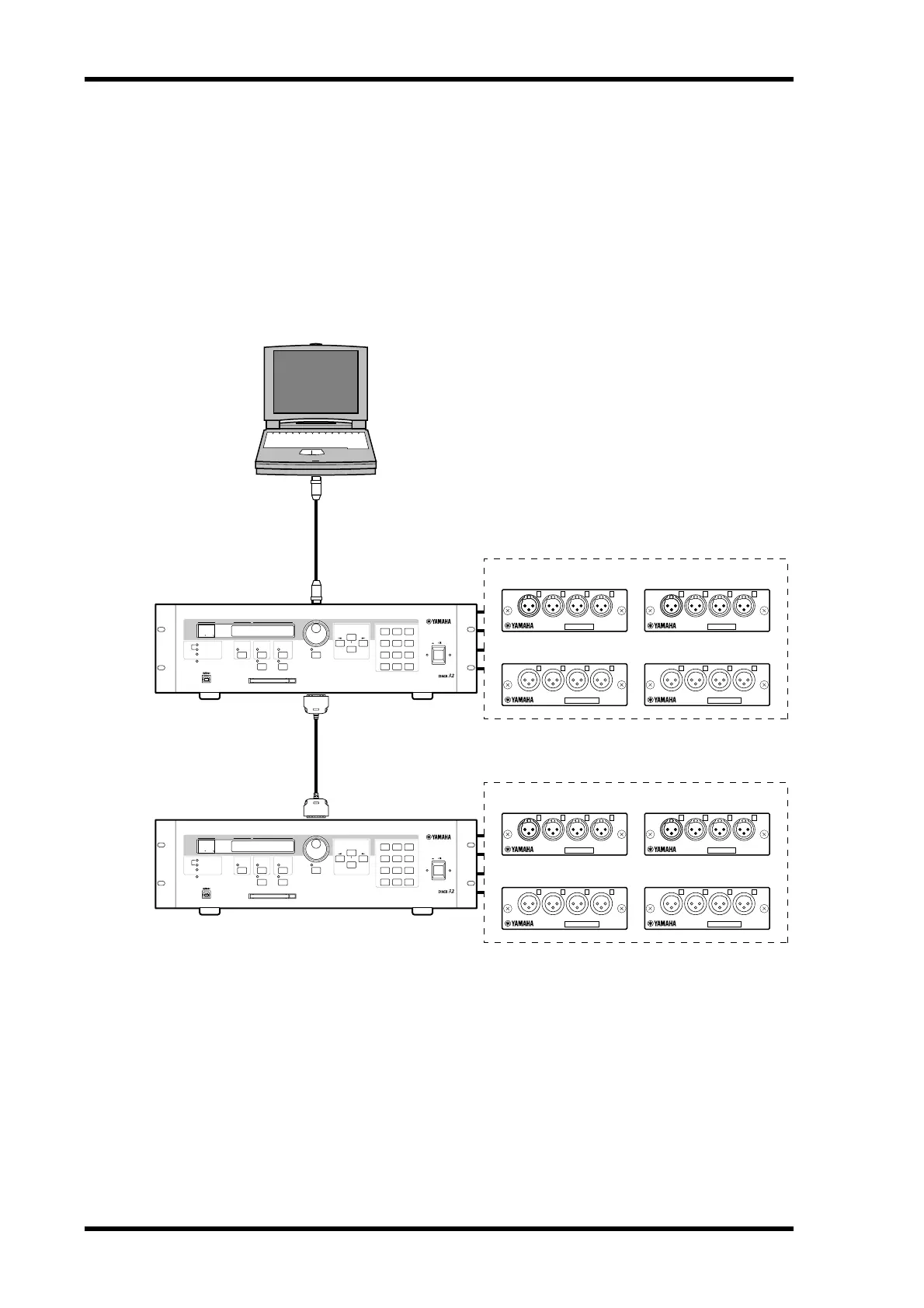

The following example shows how two DME32s can be cascaded to achieve 16 analog
inputs and 16 analog outputs by using MY4-AD and MY4-DA I/O cards. DME32 #1 is
automatically assigned ID #1 because nothing is connected to its CASCADE IN port,
while DME32 #2 is automatically assigned ID 2 because nothing is connected to its
CASCADE OUT port. DME32 #1 is the wordclock master and its wordclock source is
set to Internal. DME32 #2 automatically receives its wordclock from the cascade con-
nection.
DME32 #1
CASCADE IN
CASCADE OUTWC=Internal
PC CONTROL
DME32 #2
MY4-AD x2
CH 1–8
CH 9–16
MY4-DA x2
ANALOG OUT
DA CARD
MODEL MY4-DA
4 3 2 1
ANALOG IN
AD CARD
MODEL MY4-AD
4 3 2 1
ANALOG OUT
DA CARD
MODEL MY4-DA
4 3 2 1
ANALOG IN
AD CARD
MODEL MY4-AD
4 3 2 1
MY4-AD x2
MY4-DA x2
ANALOG OUT
DA CARD
MODEL MY4-DA
4 3 2 1
ANALOG IN
AD CARD
MODEL MY4-AD
4 3 2 1
ANALOG OUT
DA CARD
MODEL MY4-DA
4 3 2 1
ANALOG IN
AD CARD
MODEL MY4-AD
4 3 2 1
SCENE NO. CONFIGURATION
48kHz
LOCK
EMERGENCY
44.1kHz
SCENE
COMPONENT PARAMETER
UTILITY
VALUE
CARD
USER DEFINE
PROTECT
INC
DEC
DIGITAL MIXING ENGINE
POWER
ON OFF
7 8 9
4 5 6
1 2
0STORE RECALL
3
SCENE RECALLDATA
XDigitalX MixingXEngine
XXXXXYAMAHAXDME32
88
SCENE NO. CONFIGURATION
48kHz
LOCK
EMERGENCY
44.1kHz
SCENE
COMPONENT PARAMETER
UTILITY
VALUE
CARD
USER DEFINE
PROTECT
INC
DEC
DIGITAL MIXING ENGINE
POWER
ON OFF
7 8 9
4 5 6
1 2
0STORE RECALL
3
SCENE RECALLDATA
XDigitalX MixingXEngine
XXXXXYAMAHAXDME32
88
SCSI cable
9-pin cable
Windows PC running DME32 software
(only required when configuring the system)
Serial port
