Yamaha DSP-A1 User Manual

12

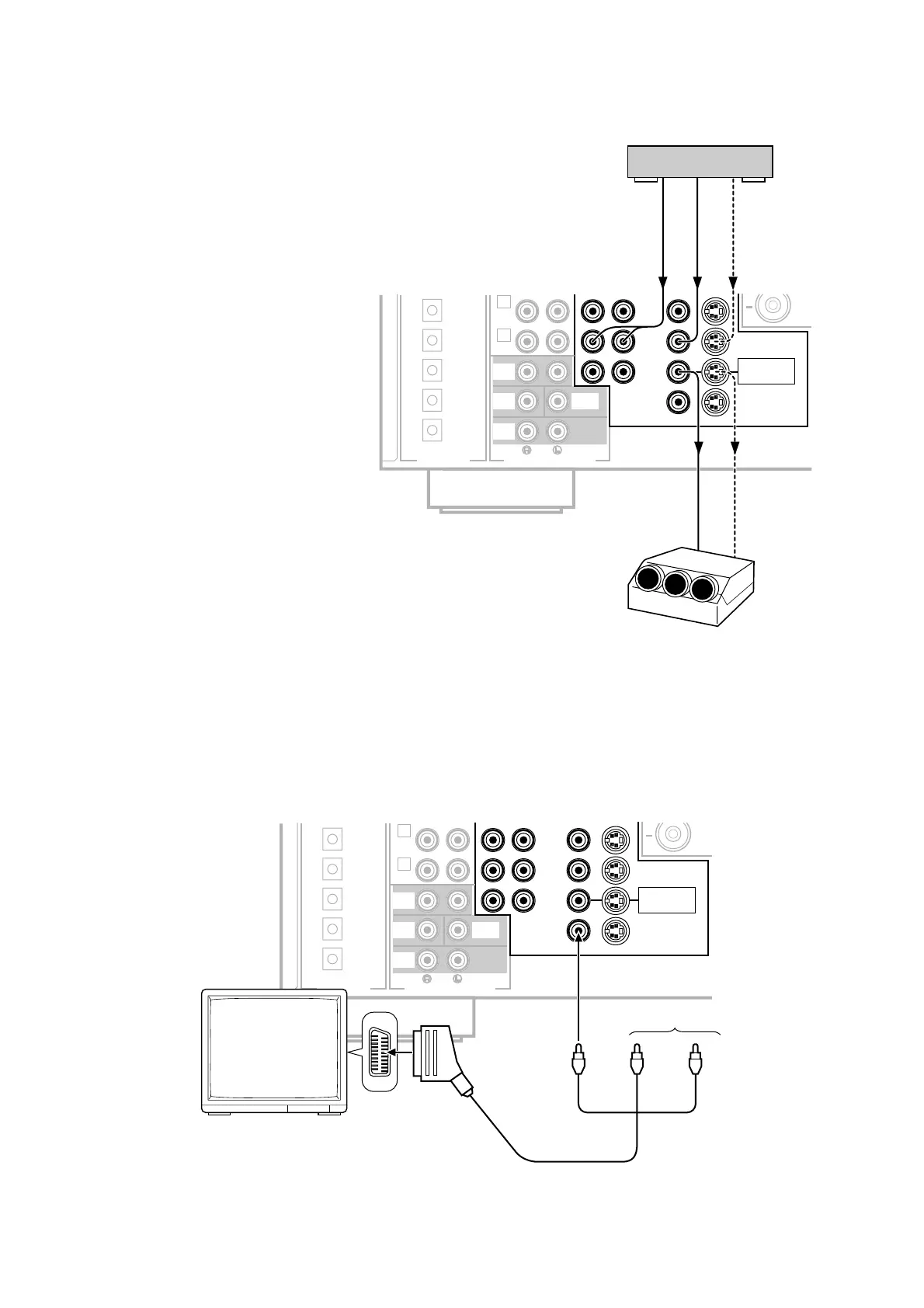

For connecting with a monitor TV that uses a 21 pin
connector for input (for Europe and U.K. models)
Make a connection as figured below with a commercially
available scart-plug connector cable.
VCR 2
OUT
IN
DVD/
VCR 3
OUT
MONITOR
OUT
DVD/VCR 3 OUT
CAN BE USED AS A SECOND
MONITOR OUT, IF SELECTED
BY SET MENU.
3
PLAY
4
REC
TAPE 2
EXTERNAL DECODER INPUT
MAIN
SUB
WOOFER
CENTER
SURROUND
PLAY
REC
MD/TAPE 1
LD
TV/DBS
DVD/
VCR 3
DIGITAL SIGNAL
VIDEO
AUDIO L
AUDIO R
Monitor TV
No connection
Scart-plug connector cable
Note
If you wish to connect a second monitor TV (or a projector) to this
unit, you can switch the DVD/VCR 3 VIDEO OUT terminal (and S
VIDEO terminal also) to a second monitor out terminal for the
connection with another monitor TV. (Refer to page 38.)
VCR 2
OUT
IN
DVD/
VCR 3
OUT
MONITOR
OUT
DVD/VCR 3 OUT
CAN BE USED AS A SECOND
MONITOR OUT, IF SELECTED
BY SET MENU.
3
PLAY
4
REC
TAPE 2
EXTERNAL DECODER INPUT
MAIN
SUB
WOOFER
CENTER
SURROUND
PLAY
REC
MD/TAPE 1
LD
TV/DBS
DVD/
VCR 3
DIGITAL SIGNAL
AUDIO OUT
S-VIDEO OUT
VIDEO OUT
S-VIDEO IN
VIDEO IN
DVD player, etc.
Projector

Yamaha DSP-A1 Specifications

General

Surround Sound	Dolby Digital, DTS, Dolby Pro Logic
Frequency Response	10 Hz-100 kHz +0, -3 dB
Total Harmonic Distortion	0.015%
Signal to Noise Ratio	96 dB
Output	Pre-out
Speaker Load Impedance	4-16 ohms
Digital Inputs	Coaxial, Optical
Video Inputs	Composite, S-Video
Dimensions	171 mm
Input Sensitivity	200mV (line)
