Yamaha DSP-A1 User Manual

Name: Yamaha DSP-A1
Brand: Yamaha
Rating: 4 (1 reviews)

80 pages

To Next Page

To Previous Page

English

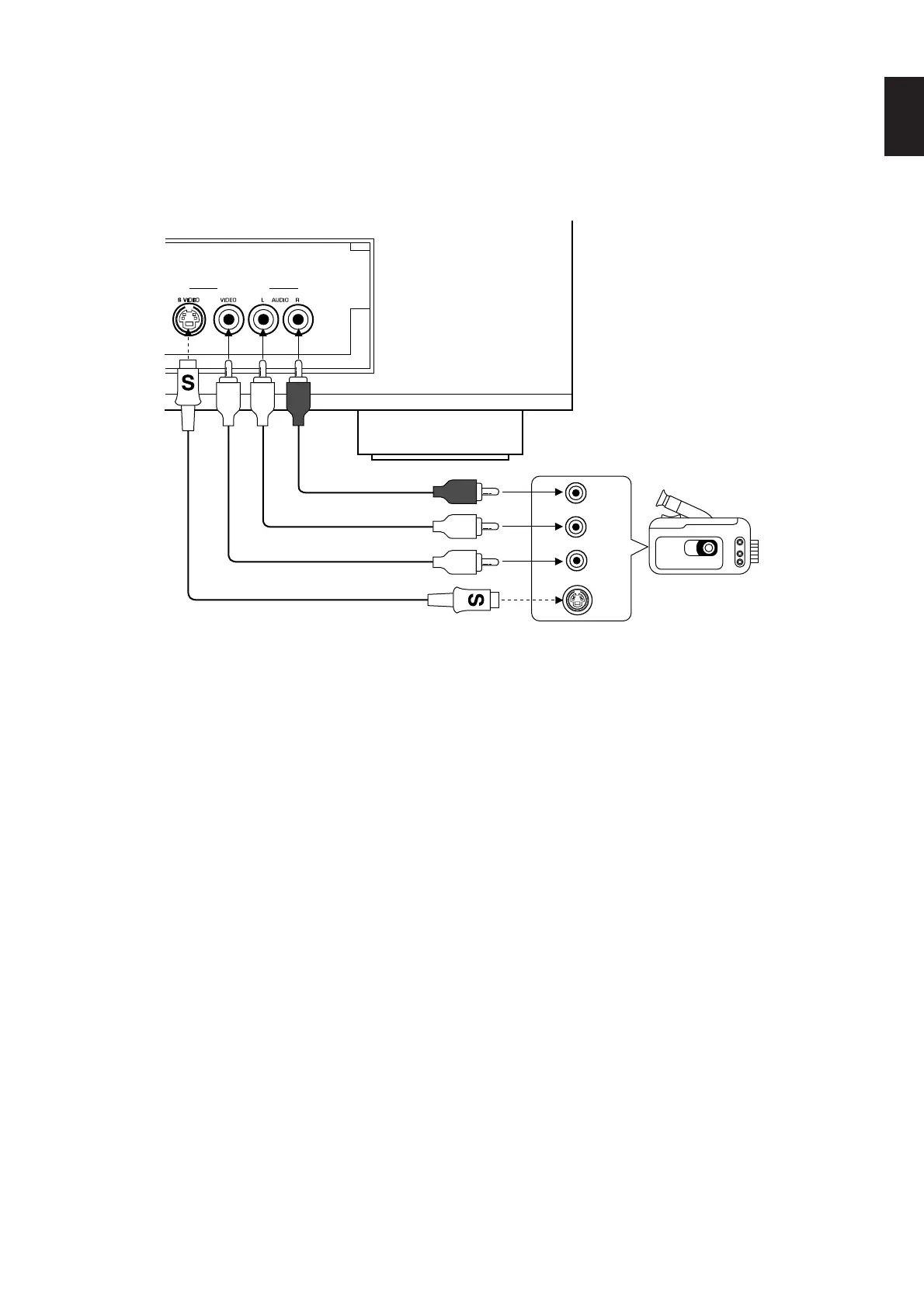

m Connecting to VIDEO AUX terminals (on the front panel)

These terminals are used to connect any video input source such as a camcorder to this unit.

VIDEO AUX

S VIDEO

VIDEO

VIDEO OUT

S VIDEO OUT

AUDIO OUT L

AUDIO OUT R

Camcorder

Safety Instructions2
Supplied Accessories3
- Table of Contents4
Features5
Caution5
- IMPEDANCE SELECTOR Switch6
Notes about the Remote Control7
Profile of this Unit7
- Dts Digital Surround8
Speaker Setup10
- Speaker System11
Connections12
- Connecting Audio/Video Source Equipment to this Unit12
- Connecting Speakers20
  - Impedance Selector Switch22
  - To Drive Main/Center/Front Effect/Rear Speakers with External Amplifiers23
- Plugging in this Unit24
Controls and Their Functions25
- Front Panel25
- Display Panel27
Adjustments before Using this Unit28
- Selecting the Output Modes Suitable for Your Speaker System (in the "Set Menu" Mode)28
- Speaker Balance Adjustment31
- Adjustments in the "Set Menu" Mode34
Adjustments in the “Set Menu” Mode41
Basic Operations41
- To Play a Source41
- To Record a Source to Tape (or MD) (or Dubbing from Atape to Another)44
- For Sound Control on this Unit46
Using Digital Sound Field Processor (Dsp)47
- Playing a Source with an Effect of the Digital Sound Field Processor (Dsp)47
- Adjusting Output Level of the Center, Right Rear, Left Rear, Front Effect Speakers and Subwoofer50
Brief Overview of Digital Sound Field Programs52
On Screen Display57
Creating Your Own Sound Fields58
- Selecting and Editing Program Parameters59
- Descriptions of the Digital Sound Field Parameters60
Setting the Sleep Timer63
Remote Control Transmitter64
- BASIC OPERATIONS (When the Lid Is Open)64
- LEARNING NEW CONTROL FUNCTIONS (When the Lid Is Open)66
- USING OPERATION CONTROL KEYS (When the Lid Is Closed)68
- MACRO OPERATIONS (When the Lid Is Closed)70
- Learning a New Function72
- Making a New Macro73
- Clearing Learned Functions74
Troubleshooting75
Specifications78

Questions and Answers:

Need help?

Do you have a question about the Yamaha DSP-A1 and is the answer not in the manual?

Yamaha DSP-A1 Specifications

General

Surround Sound	Dolby Digital, DTS, Dolby Pro Logic
Frequency Response	10 Hz-100 kHz +0, -3 dB
Total Harmonic Distortion	0.015%
Signal to Noise Ratio	96 dB
Output	Pre-out
Speaker Load Impedance	4-16 ohms
Digital Inputs	Coaxial, Optical
Video Inputs	Composite, S-Video
Dimensions	171 mm
Input Sensitivity	200mV (line)
