DSP-AX1/RX-V1
DSP-AX1/RX-V1
33
■ AMP ADJUSTMENTS
● IDLING CURRENT ADJUSTMENT
Before this adjustment, wait for 10 minutes with no signal
applied after the power is turned ON.

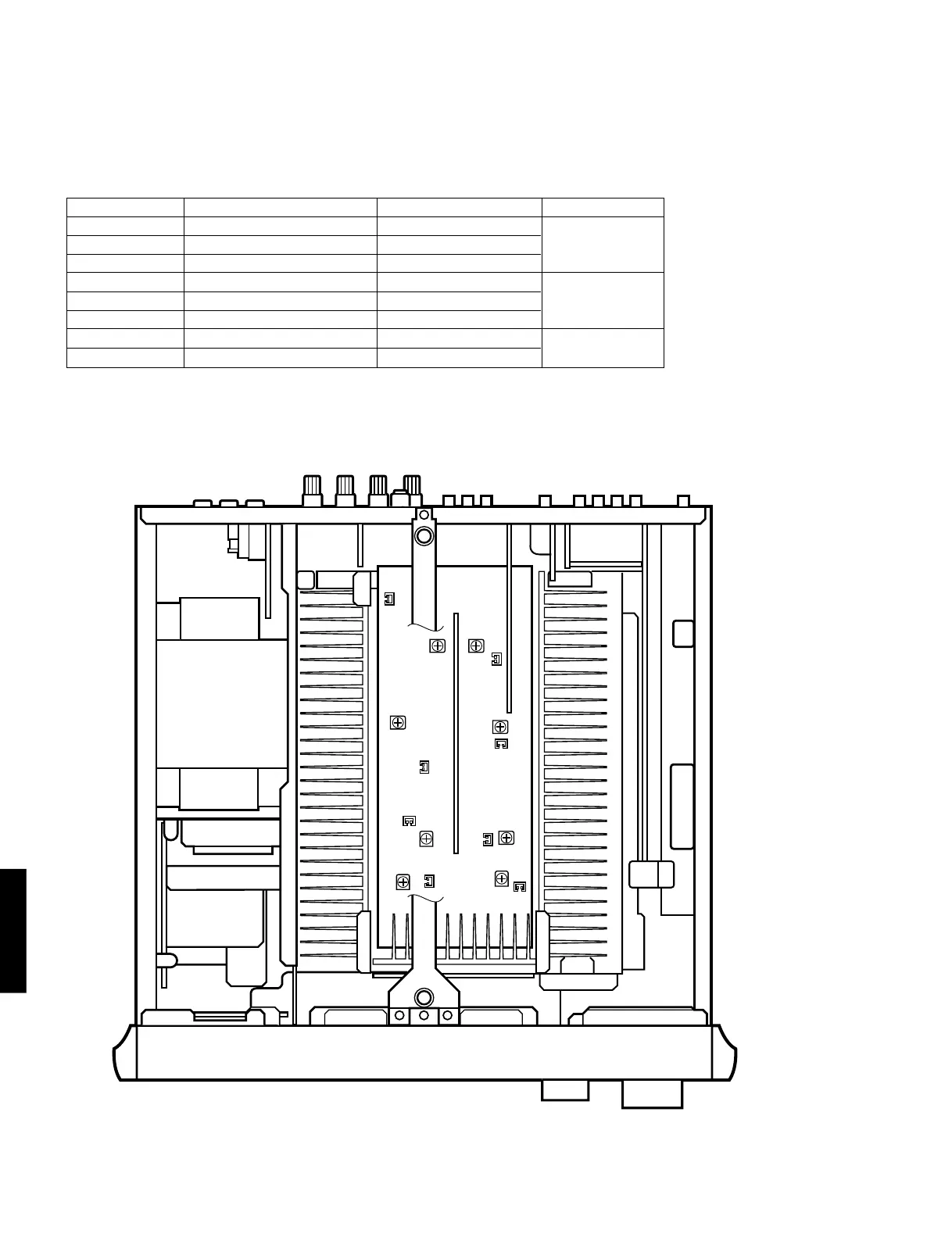

● Test Point
Test Point
CB503
CB504
CB505
CB506
CB507
CB508
CB509
CB510
Item
MAIN L
MAIN R
CENTER
REAR L
REAR R
REAR CENTER
FRONT L
FRONT R
Adjustment point
VR504
VR505
VR506
VR501
VR502
VR503
VR507
VR508
Rating (DC)
4.0mV to 12.0mV
2.0mV to 6.0mV
4.0mV to 12.0mV
CB503
CB504
CB508
CB505
CB506
CB507
CB509
CB510
VR504
VR505
VR506
VR503
VR501
VR507
VR502
VR508
