DSP-AX1/RX-V1
DSP-AX1/RX-V1
6
■ FM SECTION (RX-V1 only)
Tuning Range
U, C models . . . . . . . . . . . . . . . . . . . . . . .87.5 to 107.9MHz
A models . . . . . . . . . . . . . . . . . . . . . . .87.50 to 108.00MHz
50dB Quieting Sensitivity (IHF, 75 Ω)
U, C models only
Mono (1kHz, 100% Mod.) . . . . . . . . . . . . 1.6µV (15.3dBf)
Stereo (1kHz, 100% Mod.) . . . . . . . . . . . . 23µV (38.5dBf)
Usable Sensitivity (DIN, 75 Ω)
A model only
Mono (S/N 26dB) . . . . . . . . . . . . . . . . . . . . . . . . . . 0.9µV
Stereo (S/N 46dB) . . . . . . . . . . . . . . . . . . . . . . . . . . . 28µV
Alternate Channel Selectivity (± 400Hz)
U, C models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75dB
Selectivity (two signals, 40kHz Dev.) (± 300Hz)
A model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55dB
Signal-to-Noise Ratio
U, C models
Mono/Stereo (IHF) . . . . . . . . . . . . . . . . . . . . . . . 81/75dB
A model
Mono/Stereo (DIN-weighted, 40kHz Dev.) . . . . . 75/69dB
Harmonic Distortion
Mono/Stereo (1kHz) . . . . . . . . . . . . . . . . . . . . . . . 0.1/0.2%
Stereo Separation
1kHz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48dB
Frequency Response
20Hz to 15kHz . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0±1.0dB
Output Level
U, C models
FM 100% mod. 1kHz . . . . . . . . . . . . . . . . . . . . . . 550mV
A models
FM 40kHz Dev. 1kHz . . . . . . . . . . . . . . . . . . . . . . 550mV
Antenna Input . . . . . . . . . . . . . . . . . . . . . . . 75 Ω unbalanced
■ AM SECTION (RX-V1 only)
Tuning Range
U, C models . . . . . . . . . . . . . . . . . . . . . . . . 530 to 1,710kHz
A model . . . . . . . . . . . . . . . . . . . . . . . . . . . 531 to 1,611kHz
Usable Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . 300µV/m
Output Level
AM 30% mod. 1kHz . . . . . . . . . . . . . . . . . . . . . . . . 150mV
Signal-to-Noise Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . 52dB
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Loop antenna
■ GENERAL
Power Supply
U, C models . . . . . . . . . . . . . . . . . . . . . . . AC 120V, 60Hz
A model . . . . . . . . . . . . . . . . . . . . . . . . . . . AC 240V, 50Hz
B, G models . . . . . . . . . . . . . . . . . . . . . . . AC 230V, 50Hz
R, T models . . . . . . . . . . . AC 110/120/220/240V, 50/60Hz
Power Consumption
U model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 550W
C model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 550W/700VA
A, R, T models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 550W
Maximum Power Consumption (R, T models only) . . 770W
AC Outlets
U, R, T, G models, Switched x 3 . . . . . 100W max (Total)
C model, Switched x 3 . . . . . 100W max/1.0A max (Total)
A, B models, Switched x 1 . . . . . . . . . . . . . . . . 100W max
Dimensions (W x H x D) . . . . . . . . . . . 471 x 211.5 x 473mm
(18-9/16” x 8-5/16” x 18-5/8”)
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . 28.0 kg (61 lbs 11oz)
Finish
RX-V1 . . . . . . . . . . . . . . . . . . . . . . . Gold color/Black color
DSP-AX1 . . . . . . . . . . . . . . . . . . . . Gold color/Black color
Accessories
RX-V1 only . . . . . . . . . . . . . . . . . . . AM loop antenna x 1
Indoor FM antenna x 1
DSP-AX1/RX-V1 . . . . . . . Remote Control Transmitter x 1
Battery (size "AA", "R06") x 3
* Specifications subject to change without notice.
U . . . . . . . . . . USA model
C . . . . . .Canadian model
A . . . . . Australian model
B . . . . . . . . British model
G . . . . . European model
R . . . . . . . General model
T . . . . . . . . . China model

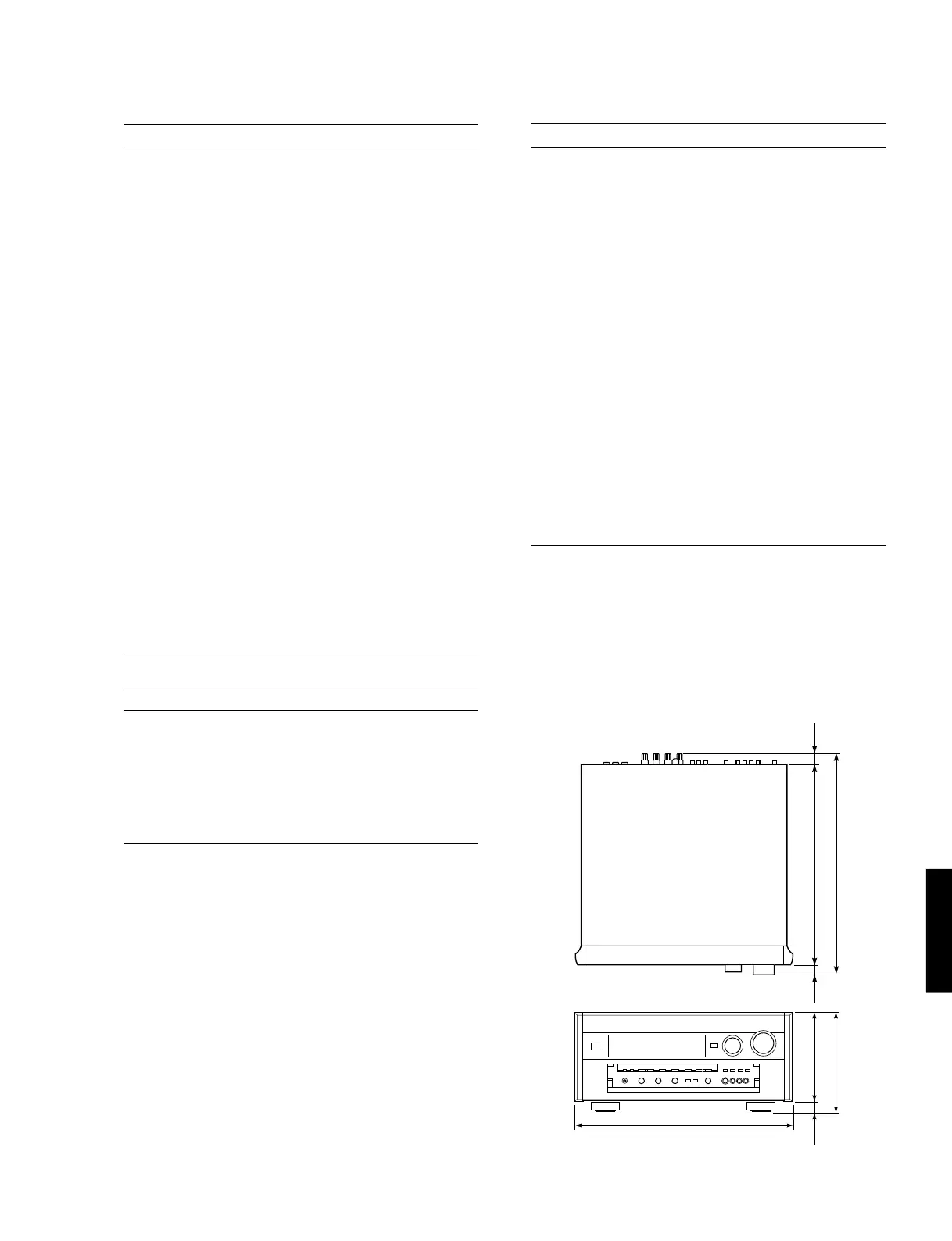

● DIMENSIONS
471 (18-9/16")
21
(13/16")
190.5 (7-1/2")
211.5 (8–5/16")
22.5
(7/8")
21.5
(7/8")
429 (16-7/8")
473 (18–5/8")
Units : mm (inch)
Manufactured under license from Dolby Laboratories.
"Dolby", "AC-3", "Pro Logic", and the double-D symbol V
are trademarks of Dolby Laboratories. © 1992-1997 Dolby
Laboratories. All rights reserved.
Manufactured under license from Digital Theater Systems,
Inc. US Pat. No. 5,451,942 and other world-wide patents
issued and pending. "DTS", "DTS Digital Surround", are
trademarks of Digital Theater Systems, Inc. copyright
1996 Digital Theater Systems, inc. All rights reserved.
