DSP-AX1/RX-V1
CIRCUIT CHANGES BY MARKET.
J U, C R, T A, B, G, L
R48, 55, 57, 58, 60 X X X O
T3 XXXO
J41 O O O X
J42 X X O X
SW1 X X O X
O : USED
X : NOT USED
Point o (Pin22 of IC2)
V : 2V/div H : 0.1 µsec/div
DC range 1 : 1 probe
0V
2V
SAMPLE 0.1us
There are two types of Tuner P.C.B. assembly for this model in terms of
construction of components.
One uses the Lead Type Device only and the other uses the Lead Type
device and Surface Mount Device (SMD).
These P.C.B. assemblies are interchangeable.
P.C.B. ASS’Y TUNER LIST
Model Markets Lead Type Lead & SMD
RX-V1 U, C V2518600 V2519300
RX-V1 A V2518800 V2519500
TUL
TE
TUR
+12
METER
TMUTE
/ST
CE
DI
CLK
DO
DEST or Rdo Rce
Rdi
Rclk
Rsyn
FROM: VIDEO (4)
SEPARATION
ADJ.
DISCRIMINATOR
BALANCE ADJ.
MONAURAL
DISTORTION
ADJ.
TUNER P.C.B. (Lead Type & SMD)
FREQUENCY
STEP
(R,T only)
AM
ANT
FM
ANT
GND
W1
AM SENSITIVITY
ADJ.
SIGNAL METER ADJ.
9
12
22
1
11
22
1
11
12
24
1
12
13
(Lead Type Device)
TUNER P.C.B. (Lead Type & SMD)
(Surface Mount Device)
13
TUL
TE
TUR
+12
METER
TMUTE
/ST
CE
DI
CLK
DO
DEST or Rdo
Rce
Rdi
Rclk
Rsyn
FROM: VIDEO (4)
FREQUENCY
STEP
(R,T only)
AM
ANT
FM
ANT
GND
SIGNAL
METER
ADJ.
AM SENSITIVITY
ADJ.
SEPARATION
ADJ.
DISCRIMINATOR
BALANCE ADJ.
MONAURAL
DISTORTION
ADJ.
12
1
24
TUNER P.C.B. (Lead Type)
1
22
12
22
1
11
12
W1
11
9

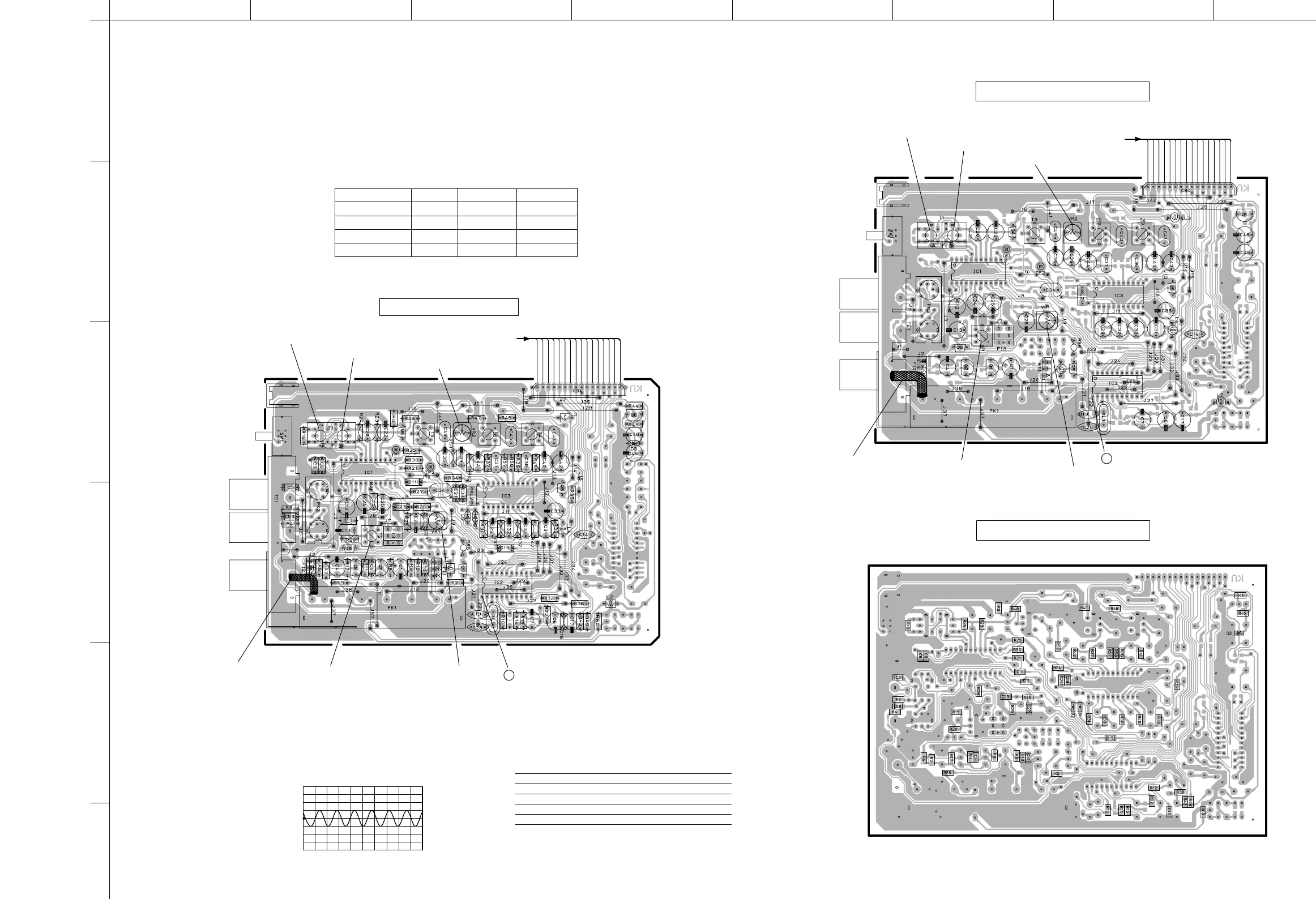

■ PRINTED CIRCUIT BOARD (Foil side)
E-83/J-75
