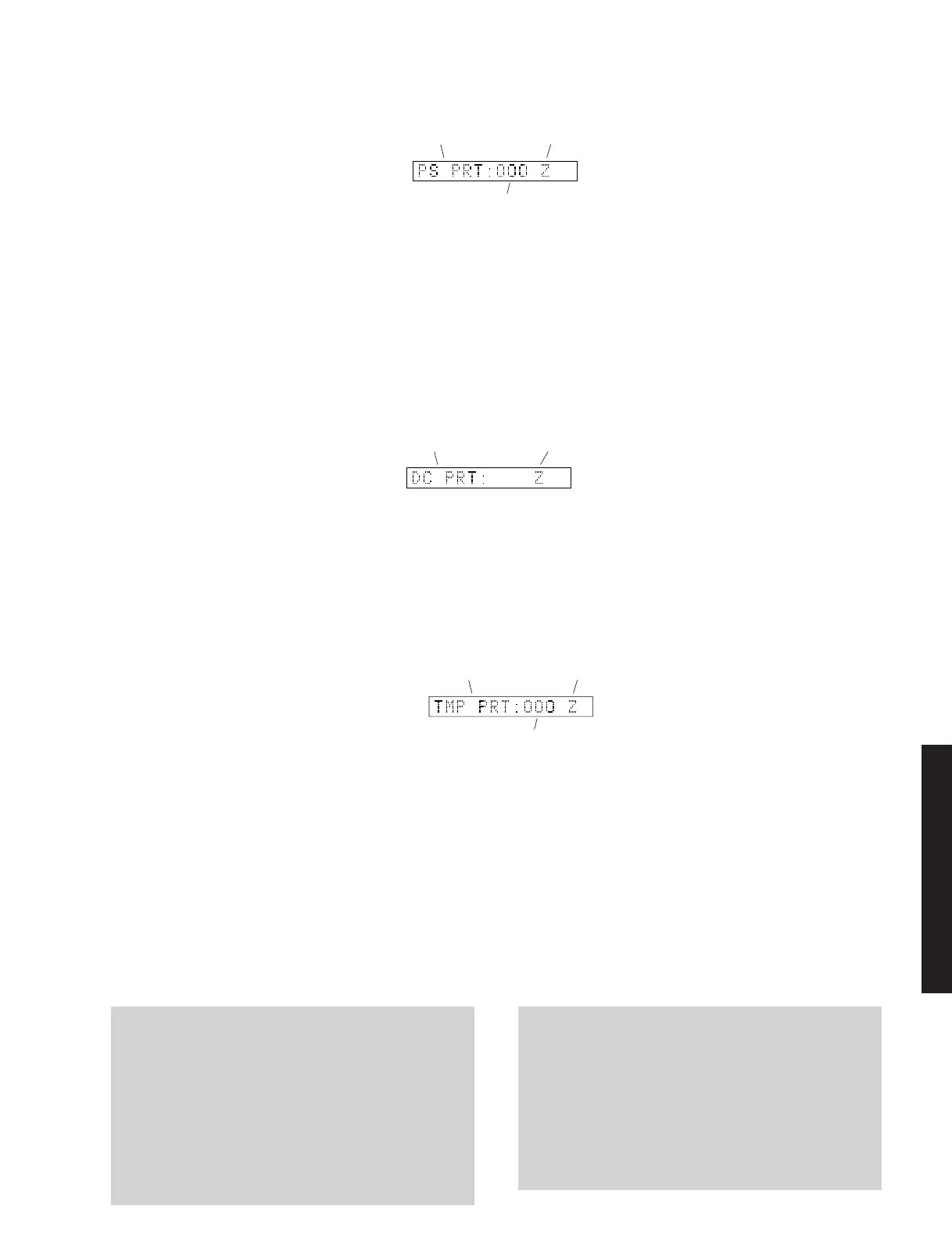

When there is a history of protection
function due to abnormal DC output
Version (1 alphabet)
When there is a history of protection
function due to excessive heat sink
temperature
Version (1 alphabet)
Voltage display in %
Cause: DC output of the power amplifier is abnormal.
Turning on the power without correcting the abnormality
will cause the protection function to work 3 seconds later
and the power supply will be shut off.
Cause: The temperature of the heat sink is excessive.
Supplementary information: The abnormal voltage is
displayed in % based on 5V as 500%.
Turning on the power without correcting the abnormality
will cause the protection function to work 1 second later
and the power supply will be shut off.
* Additional causes of protection can be due to loose
connections, associated components, CPU, etc.
* For the protection voltage value, refer to DIAG menu
No.10 described later.
• History of protection function
When the protection function has worked, its history is
stored in memory with a backup. Even if no abnormality
is noted while servicing the unit, an abnormality which
has occurred previously can be defined as long as the
backup data has been stored.
The history of the protection function is cleared when
DIAG is cancelled by selecting PRESET RESERVED
(Memory initialized) of DIAG menu No.9 or when the
backup data is erased.
●プロテクションの履歴
プロテクションが働いた場合、履歴をバックアップして
記憶しています。サービスのときに異常が認められなく
ても、バックアップが残っていれば、お客様のところで
起きた異常を区別できます。
プロテクションの履歴は、ダイアグメニューNo.9で
PRESETRESERVED（メモリーの初期化）を選んでダイ
アグを解除した場合や、バックアップが消えたときには
クリアされます。
Cause: The voltage in the power supply section is
abnormal.
Supplementary information: The abnormal voltage is
displayed in % based on 5V as 100%.
Turning on the power without correcting the abnormality
will cause the protection function to work 1 second later
and the power supply will be shut off.
When there is a history of protection
function due to an abnormal voltage in
the power supply section
Version (1 alphabet)
Voltage display in %
