• Functions in DIAG mode
In addition to the DIAG menu items, functions as listed
below are available.
• Input selection, 6CH input
• Center/Rear/Rear Center/Sub-woofer level adjustment
• Muting
• Power on/off
• Master volume
* Functions related to the tuner and the set menu are not
available.
* It is possible to confirm Menu No.11 IF STATUS while
keeping the signal process (operation status) of each
DIAG menu by using the input mode key of the main
unit.
• Initial settings used to start DIAG
The following initial settings are used when starting DIAG.
When DIAG is canceled, these settings are restored to
those before starting DIAG.
• Master volume: -40dB
• Input: DVD (6CH INPUT OFF)
• Effect level: 0dB
• Audio mute: OFF
• Speaker setting: LARGE / BASS OUT = BOTH
• DIAG menu: DSP THROUGH (1. ANALOG BYPASS)
●ダイアグ中の機能
●ダイアグ開始時の初期設定
DIAG menu selection
SUB-MENU selection

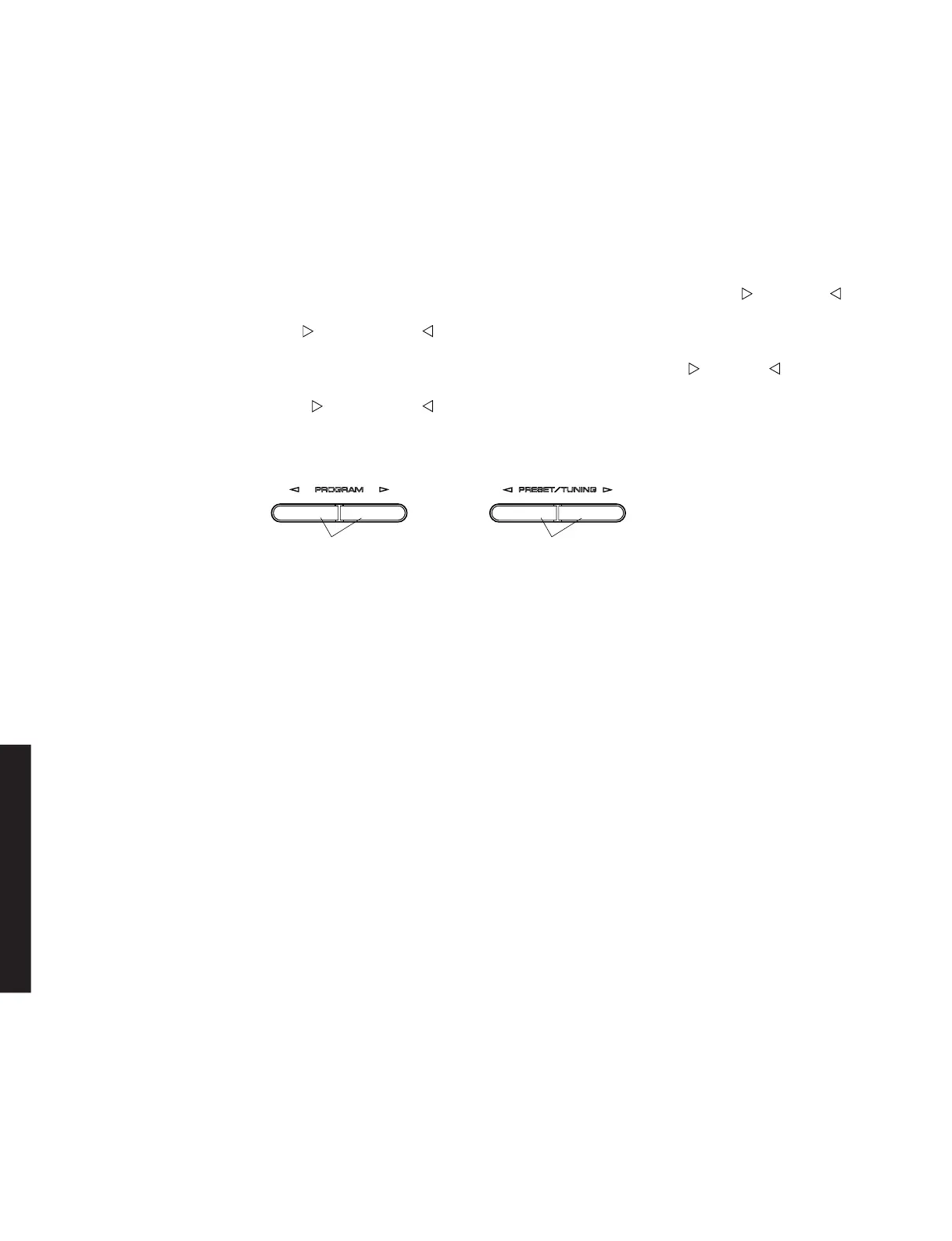

Keys of main unit/本体キー
• Display during menu operation
During the DIAG operation, the function at work is
indicated on the FL indicator. The contents displayed
during the function operation are described in the later
section on details of functions.
• Operation procedure of DIAG menu and
SUB-MENU
There are 15 MENU items, each of which has some SUB-
MENU items.
DIAG menu selection
Main unit: Select the menu using (Forward) and
(Reverse) keys of PRESET/TUNING.
SUB-MENU selection
Main unit: Select the sub-menu using (Forward) and
(Reverse) keys of PROGRAM.
●メニュー動作中の表示
●ダイアグメニューとサブメニューの操作
ダイアグメニューの選択
サブメニューの選択
