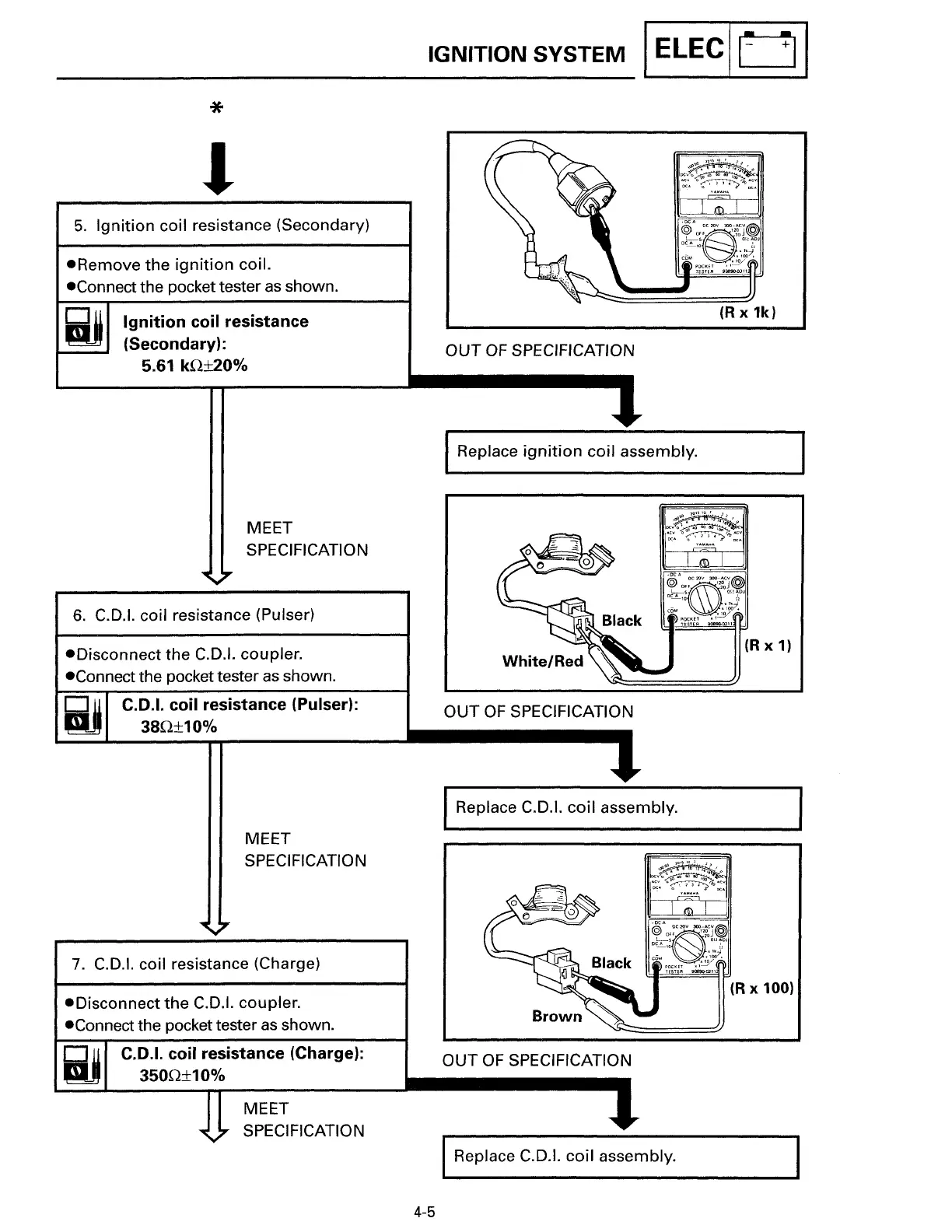

5.
Ignition
coil resistance (Secondary)
•Remove
the
ignition
coil.
•Connect the pocket tester
as
shown.
Ignition coil resistance
(Secondary):
5.61 kQ±20%
MEET
SPECIFICATION
6.
C.D.I. coil resistance (Pulser)
•Disconnect
the C.D.I. coupler.
•Connect the pocket tester
as
shown.
ts*J
C.D.I. coil resistance (Pulser):
38Q±10%
MEET
SPECIFICATION
7.
C.D.I. coil resistance (Charge)
•Disconnect
the
C.D.I. coupler.
•Connect the pocket tester
as
shown.
~
C.D.I. coil resistance (Charge):
350Q±10%
MEET
SPECIFICATION
IGNITION SYSTEM I ELEC I u I
(R
X 1k)
OUT
OF
SPECIFICATION
I Replace
ignition
coil assembly.
(R
x 1)
OUT
OF
SPECIFICATION
I Replace C.D.I. coil assembly.
(R
X 100)
OUT
OF
SPECIFICATION
I Replace C.D.I. coil assembly.
4-5
To Next Page
