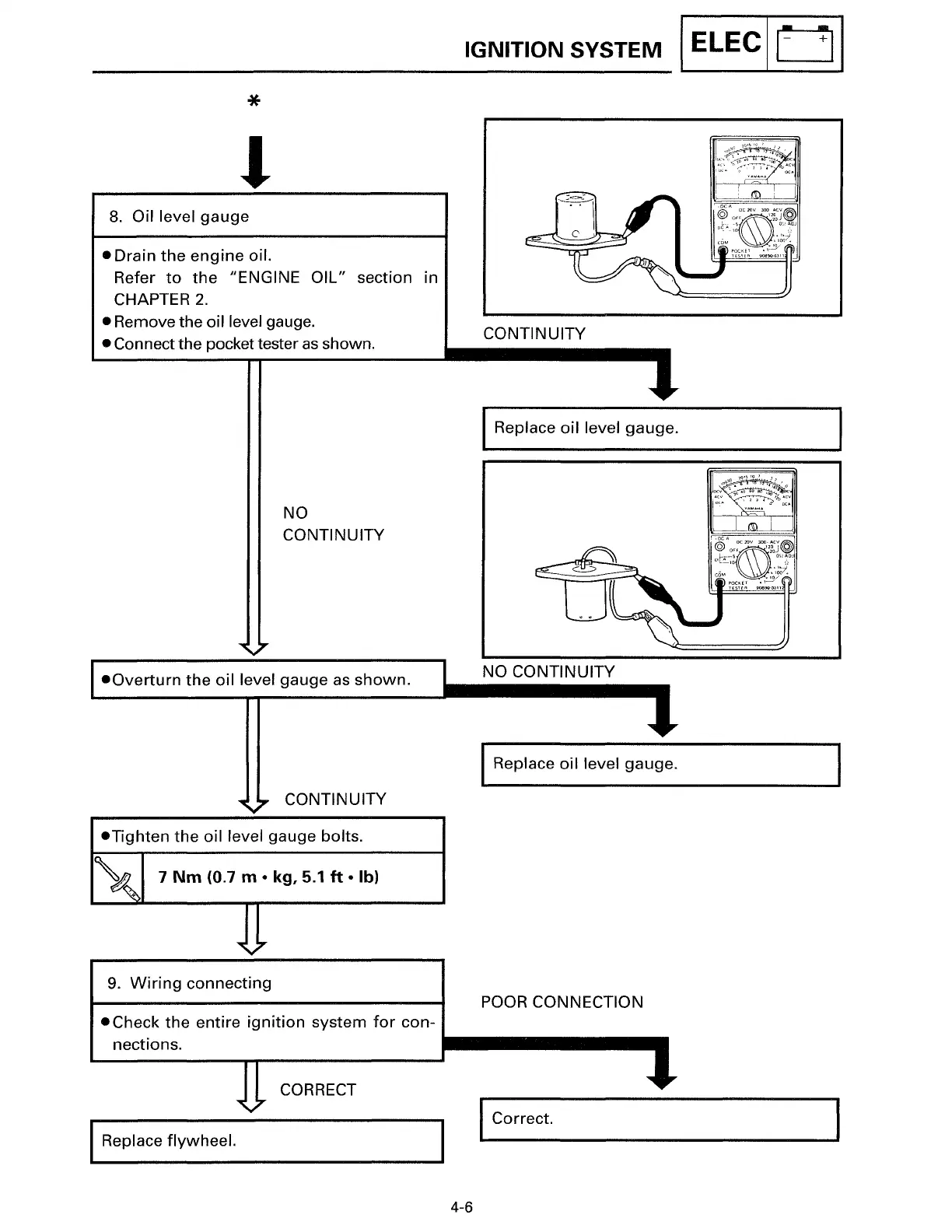

8. Oil level gauge
• Drain the engine oil.
Refer
to the "ENGINE OIL" section in
CHAPTER
2.
• Remove the oil level gauge.
• Connect the pocket tester
as shown.
NO
CONTINUITY
•Overturn the oil level gauge as shown.
CONTINUITY
•Tighten the oil level gauge bolts.
~. 7 Nm (0.7 m • kg, 5.1 ft •lbl
9. Wiring connecting
• Check the entire ignition system for con-
IGNITION SYSTEM I ELEC I I~ I
CONTINUITY
I Replace oil level gauge.
NO CONTINUITY
I Replace oil level gauge.
POOR CONNECTION
nections.
••••••••••
CORRECT
I Replace flywheel.
I Correct.
4-6
