Yamaha HTR-3068 User Manual

En 21
The unit is equipped with a variety of input jacks including HDMI input jacks to allow
you to connect different types of playback devices. For information on how to connect a
BLUETOOTH device, an iPod, or a USB storage device, see the following pages.
– Connecting a BLUETOOTH device (p.53)
– Connecting an iPod (p.54)
– Connecting a USB storage device (p.59)

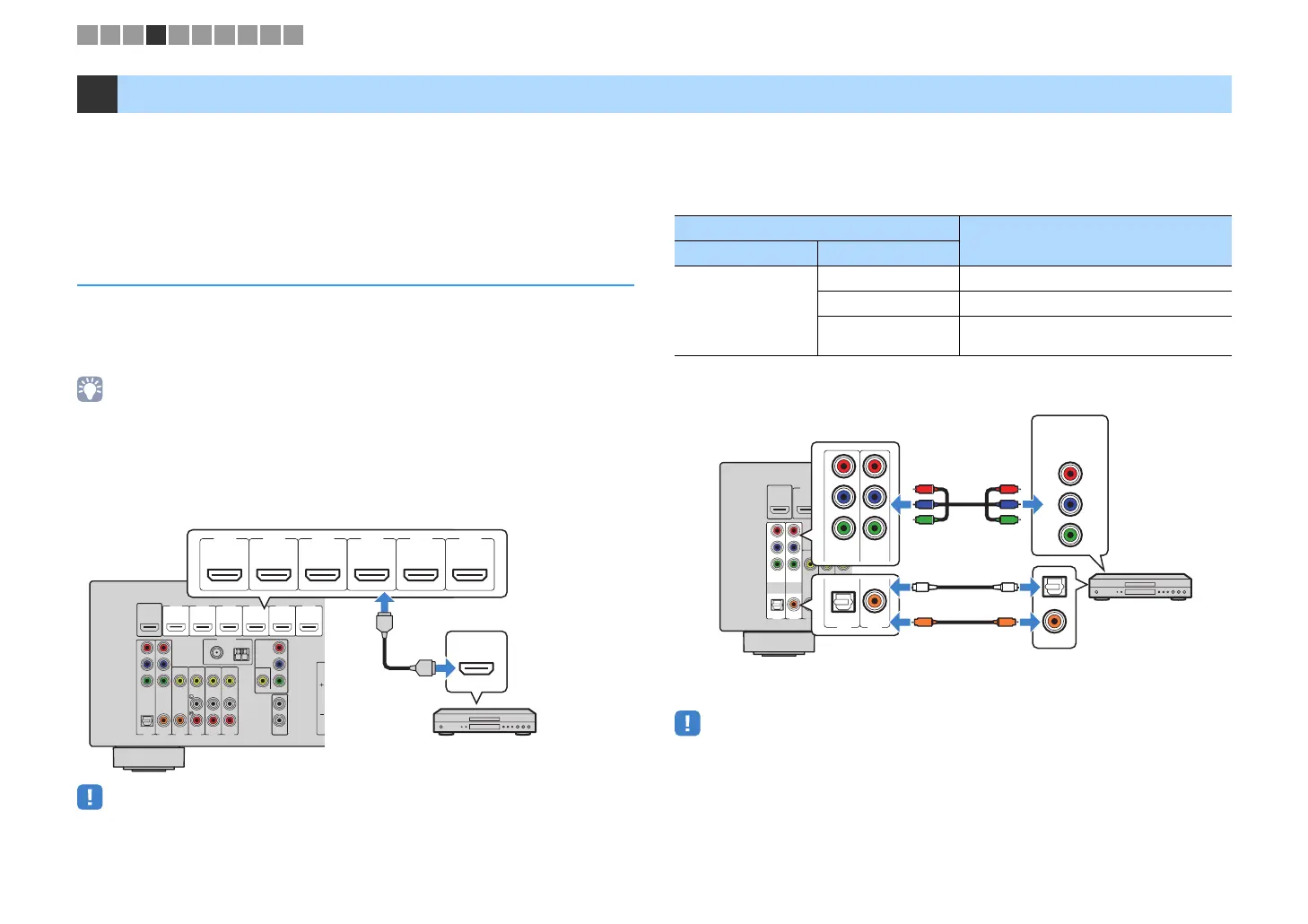

Connecting video devices (such as BD / DVD players)
Connect video devices such as BD/DVD players, set-top boxes (STBs) and game
consoles to the unit. Depending on the video/audio output jacks available on your video
device, choose one of the following connections. We recommend using an HDMI
connection if the video device has an HDMI output jack.
• If the combination of video/audio input jacks available on the unit does not match your video device, change
its combination according to the output jacks of your device (p.22).
■ HDMI connection
Connect a video device to the unit with an HDMI cable.
• If you connect a video device to the unit via HDMI, you need to connect your TV to the HDMI OUT jack of
the unit (p.19).
• For the HDCP 2.2-compatible HDMI device, use the HDMI 6 jack to connect it.
■ Component video connection (RX-V579)
Connect a video device to the unit with a component video cable and an audio cable
(digital optical or digital coaxial). Choose a set of input jacks (on the unit) depending on
the audio output jacks available on your video device.
• If you connect a video device to the unit via component video connection, you need to connect your TV to
the MONITOR OUT (COMPONENT VIDEO) jacks of the unit (p.19).
4 Connecting playback devices
OPTICAL
(TV)
COAXIAL
COAXIAL
VIDEO
COMPONENT
VIDEO
Y
P
B
P
R
FM
AM
75Ω
ANTENNA
(RADIO)
COMPONENT
VIDEO
VIDEO
MONITOROUT
Y
1
2
SUBWOOFER
PREOUT
HDMI2
HDMI3
HDMI4
HDMI5
HDMI6
HDCP2.2
HDMI1
(BD/DVD)
HDMIOUT
HDCP2.2
ARC
P
B
P
R
AV4
AV3
AV6
AV5
AV2
AV1
HDMI
HDMI
HDMI
HDMI 1
(
BD/DVD
)
HDMI 2 HDMI 3 HDMI 4
HDMI 5 HDMI 6
HDCP2.2
The unit (rear)
HDMI output
Video device
HDMI 1–6 jacks
Output jacks on video device
Input jacks on the unit
Video Audio
Component video
Digital optical AV 1 (COMPONENT VIDEO + OPTICAL)
Digital coaxial AV 2 (COMPONENT VIDEO + COAXIAL)
Analog Stereo
You need to change the combination of
video/audio input jacks (p.22).
COAXIAL
VIDEO
FM
75Ω
A
N
(
HDMI2
HDMI1
(BD/DVD)
HDMIOUT
HDCP2.2
ARC
OPTICAL
(TV)
COAXIAL
COMPONENT
VIDEO
Y
P
B
P
R
AV3
AV2
AV1
COAXIAL
OPTICAL
PR
PB
Y
COMPONENT
VIDEO
OPTICAL
( TV )
COAXIAL
COMPONENT
VIDEO
P R
P B
Y
AV 1
AV 2
O
O
C
C
P
R
P
B
Y
P
R
P
B
Y
The unit (rear)
AV 1-2 (COMPONENT VIDEO) jacks
Video output
(component video)
Video device
Audio output
(digital optical or digital coaxial)
AV 1 (OPTICAL) jack or
AV 2 (COAXIAL) jack
1 2 3 4 5 6 7 8 9 10
00_RX-V479_V579_om_U.book Page 21 Wednesday, March 25, 2015 9:59 AM

Yamaha HTR-3068 Specifications

General

Receiver type	Surround
Pre-out channels	1 SW
Pre-out connectivity	Yes
Audio output channels	5.1 channels
Total Harmonic Distortion (THD)	0.09 %
Dynamic power per channel (4 Ohm)	130 W
Power output per channel (1KHz@6 Ohm)	110 W
Power output per channel (20-20KHz@8 Ohm)	70 W
HDMI in	4
Audio (L/R) in	3
Composite video in	1
Digital audio coaxial in	2
Connectivity technology	Wireless
Speakers connectivity type	-
Ethernet LAN	No
Supported radio bands	AM, FM
Product color	Black
Audio decoders	DTS-HD Master Audio, Dolby Digital Plus, Dolby TrueHD
Sustainability certificates	ENERGY STAR
Power consumption (standby)	0.3 W

Weight and Dimensions

Depth	315 mm
Width	435 mm
Height	151 mm
Weight	7400 g
