Yamaha HTR-5830 Service Manual

RX-V357/HTR-5830
26
RX-V357/HTR-5830
6. OTHER INPUT
The signal input through the 6CH INPUT terminals is
output.
EXTERNAL DECODER
Reference data
INPUT: 6CH INPUT
SWFR: 50Hz, Others: 1kHz

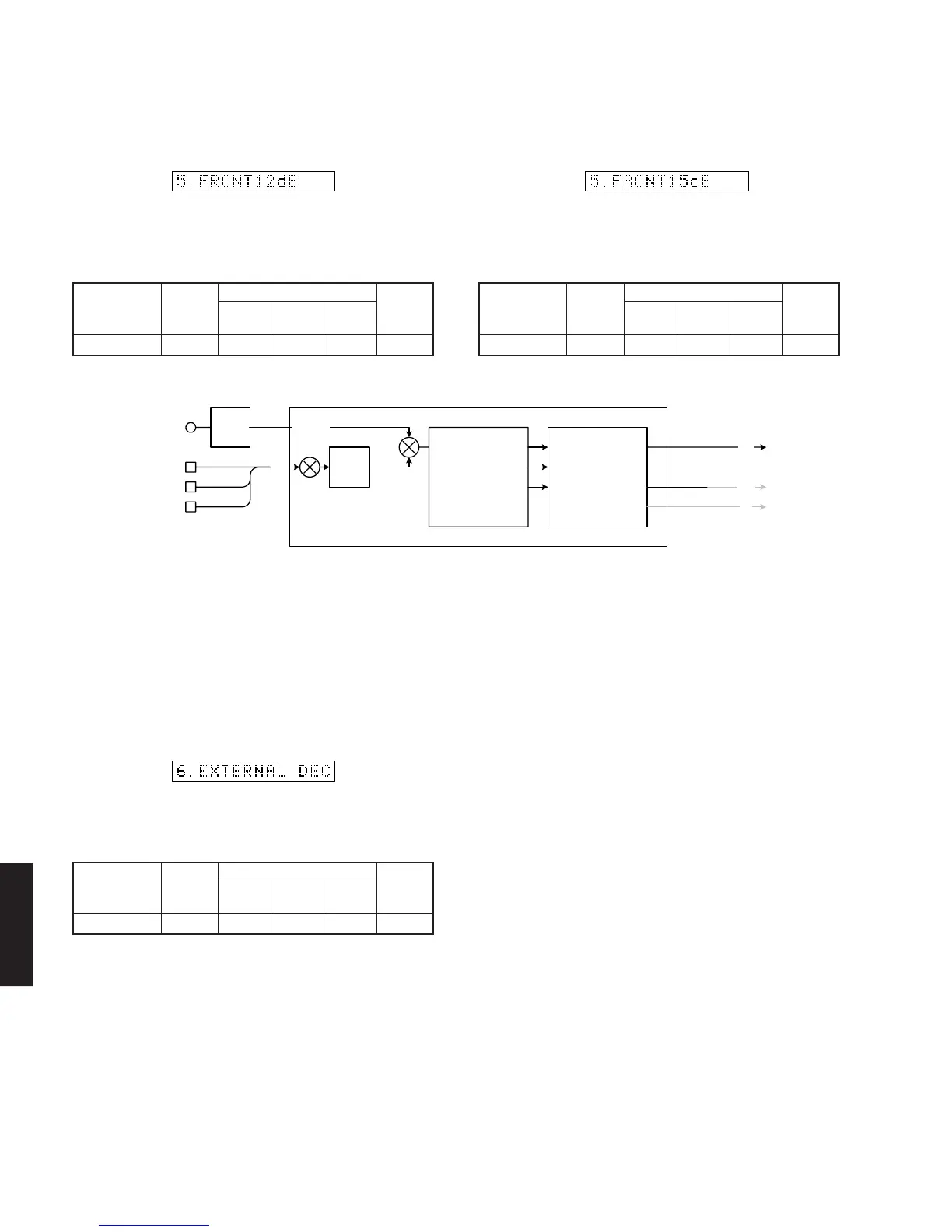

5. HP Test
The signal is output including the head margin.
FRONT 12dB MARGIN
Reference data
INPUT: DVD ANALOG
SWFR: 50Hz, Others: 1kHz
FRONT 15dB MARGIN
Reference data
INPUT: DVD ANALOG
SWFR: 50Hz, Others: 1kHz
Digital
Analog
Same as
"1. YSS"
(automatic
selection)
Same as
"1. YSS"
(automatic
selection)
A/D
DIR
Main DSP Sub DSP
AD or CS L/R
L/R
LS/RS
C/LFE
C/SW
SL/SR
L/R
(Shaded items not used in this example)
SPEAKER OUTPUT
(
1kHz
)
SUBWOOFER
Input level Volume FRONT
CENTER SL/SR
OUTPUT
L/R (50Hz)
Both ch, -20 dBm +6.0 dB +11.5 dBm - ∞ - ∞ - ∞
SPEAKER OUTPUT
(
1kHz
)
SUBWOOFER
Input level Volume FRONT
CENTER SL/SR
OUTPUT
L/R (50Hz)
Both ch, -20 dBm +6.0 dB +14.5 dBm - ∞ - ∞ - ∞
SPEAKER OUTPUT
(
1kHz
)
SUBWOOFER
Input level Volume FRONT
CENTER SL/SR
OUTPUT
L/R (50Hz)
Both ch, -20 dBm +6.0 dB +11.5 dBm +11.5 dBm +11.5 dBm -10.5 dBm

Yamaha HTR-5830 Specifications

General

Audio Channels	5.1
Frequency Response	10 Hz - 100 kHz
Component Video Inputs	2
Composite Video Inputs	4
Signal-To-Noise Ratio	100 dB
Input Sensitivity	200 mV
Built-in Decoders	Dolby Digital, DTS
Surround Sound Effects	Yes
Tuner Bands	AM/FM
Preset Station Qty	40
Surround Sound	Yes
S-Video Inputs/Outputs	2 inputs / 1 output
Digital Audio Inputs	2 (optical, coaxial)
Total Harmonic Distortion	0.06 %
Input Impedance	47 kΩ
Audio D/A Converter	24-bit/192 kHz
Tuning Range	FM: 87.5 - 108 MHz, AM: 530 - 1710 kHz
Width	17.1 in
Power Output	100 W
Connector Type	RCA
