Application Guide for
Yamaha Installation Series Speakers
11

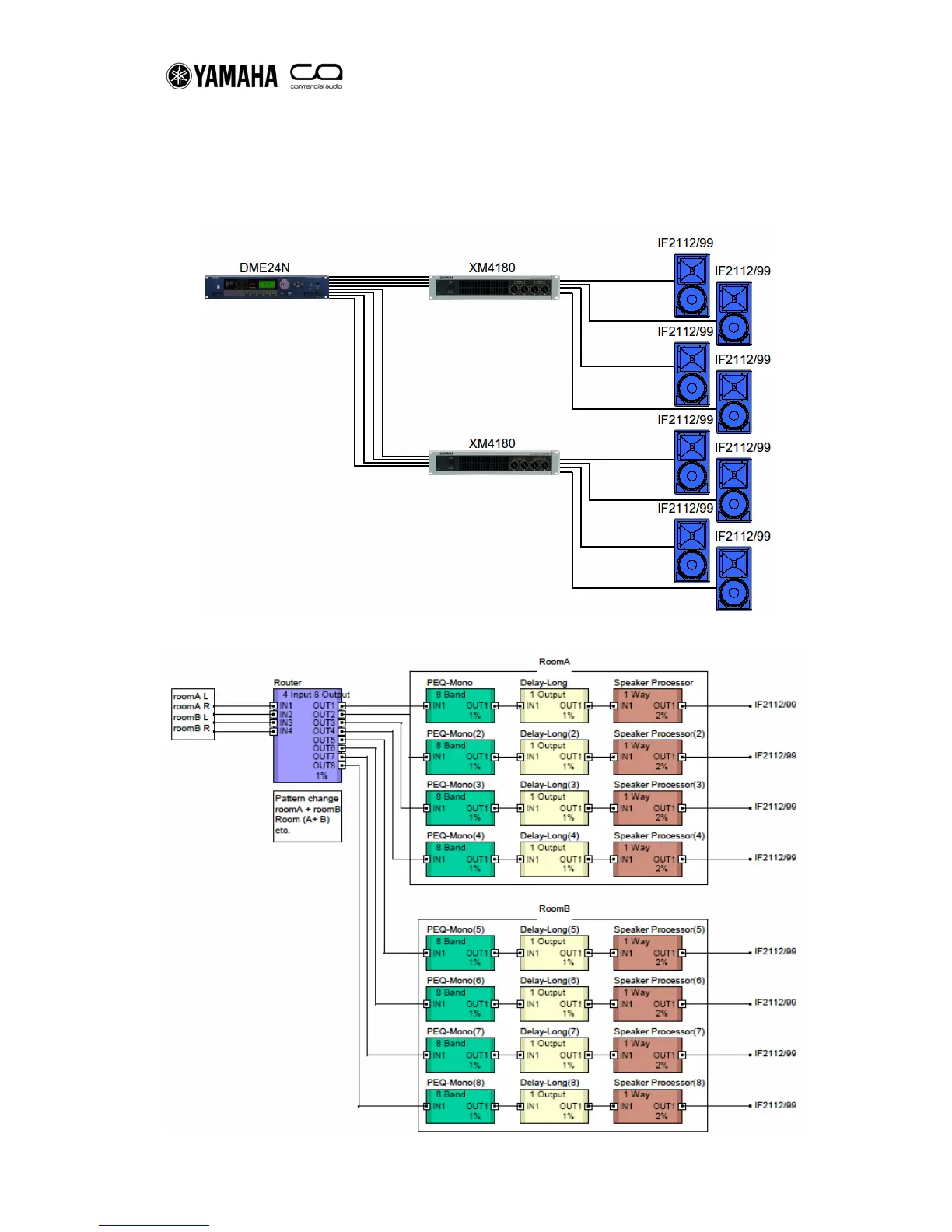

System Diagram
- Speaker Processing Component
1 x DME24N
- Power Amplifier
2 x XM4180
- Ceiling Mounted Speaker
8x IF2112/99
- Mounting Hardware
8 x UB2112
DME Configuration Example
