Large Installation: Theater
This installation example represents a sound system for large sized theater.
Applications
- Theater
- House of Worship
- Hall
- Performing Arts Center

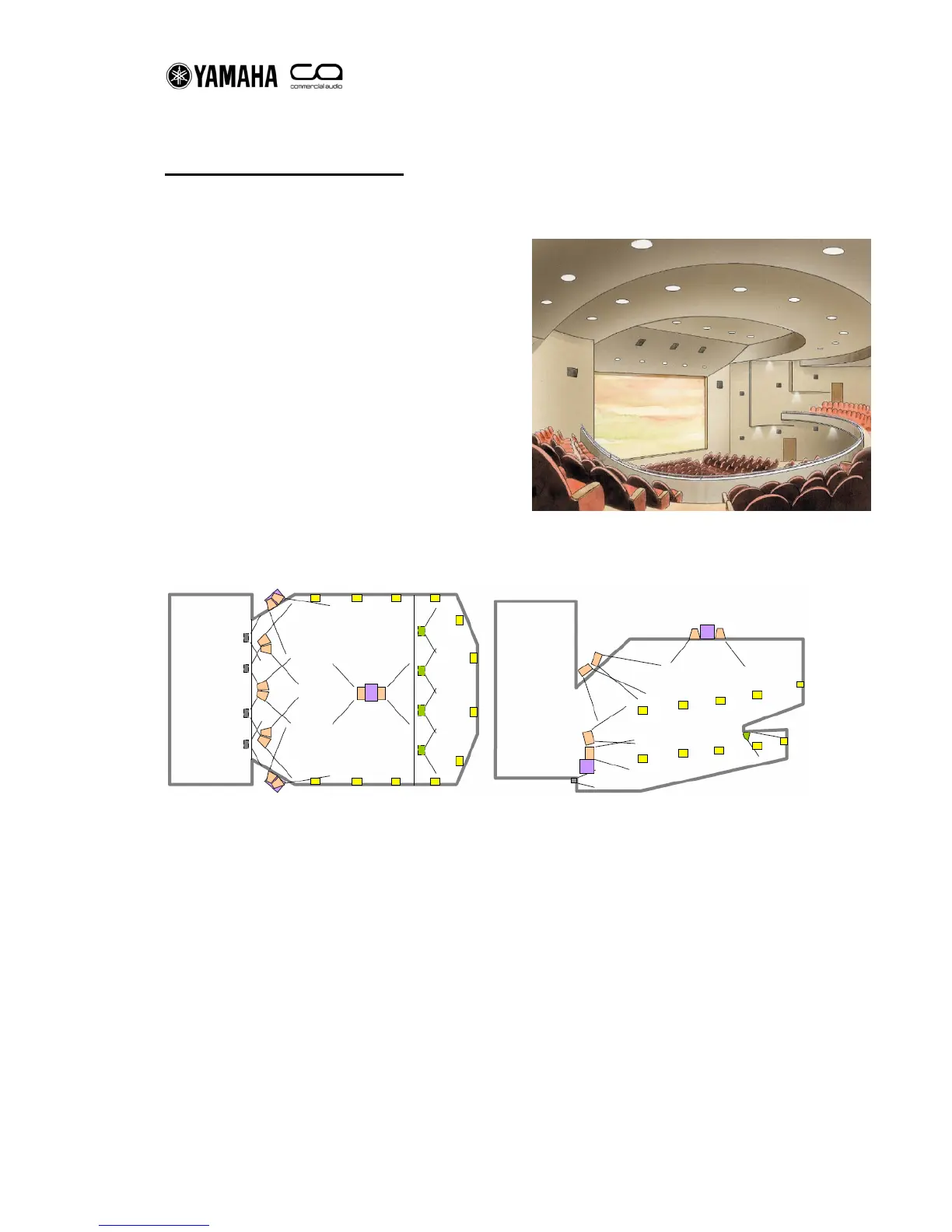

Speaker Layout
Speaker System Overview
• Left/Right/Center clusters are composed of 4x full-range speaker/IF2115/64.
• Side fills are composed of 4x IF2112 and 1x IS1215.
• Ceiling speaker and Wall speakers are installed for Sound Effect. Ceiling speaker has a subwoofer
to realize like Thunder Sound.
• Under Balcony seats are covered by 4x dual 8” LF 2way/IF2208.
• The front of stage seats are covered by 4x IF2205.
