Yamaha Installation Series Application Guide

Application Guide for
Yamaha Installation Series Speakers
12

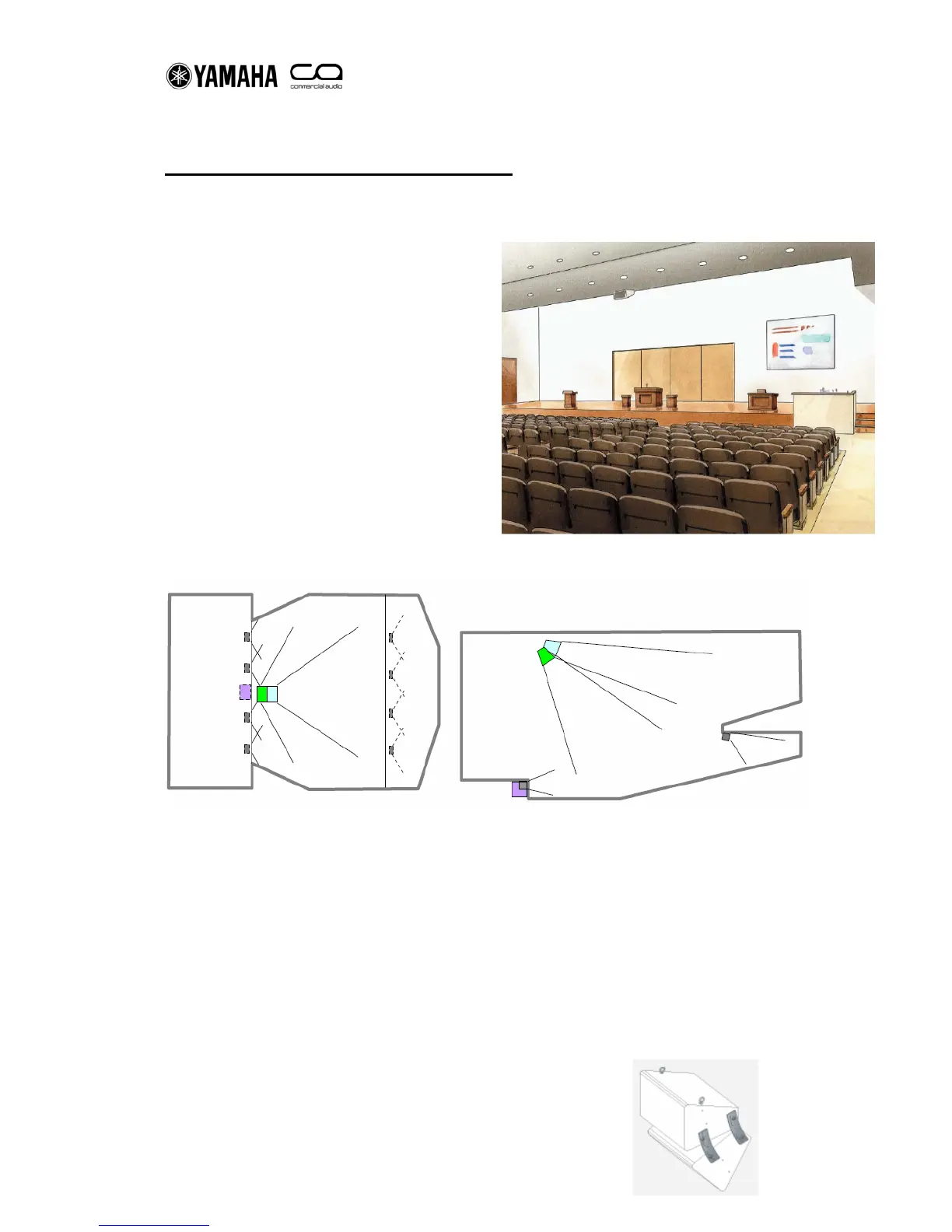

Medium Installation: House of Worship
This installation example represents a medium sized sound system.
Applications
- House of Worship
- Hall
- Performing Arts Center
Speaker Layout
Speaker System Overview
• This simple center cluster is a very good choice for medium size room needed wide vertical
coverage.
• Center Cluster is composed of IF2115/64 for long throw and IF2115/95 for short throw.
• Two speakers in center cluster are combined by Vertical array frame and easy to install.
• Small front fills, IF2205, cover the front of stage area. 6 inch height of IF2115 is designed to fit for
stair step.
• Under balcony area is covered by IF2205 having 90x60 CD horn and 1” high power compression
driver.
• IS1218 dual 18” subwoofer allows for extended low frequency bandwidth to meet music
applications.
Vertical Array Frame
