Yamaha Installation Series Application Guide

Application Guide for
Yamaha Installation Series Speakers
13

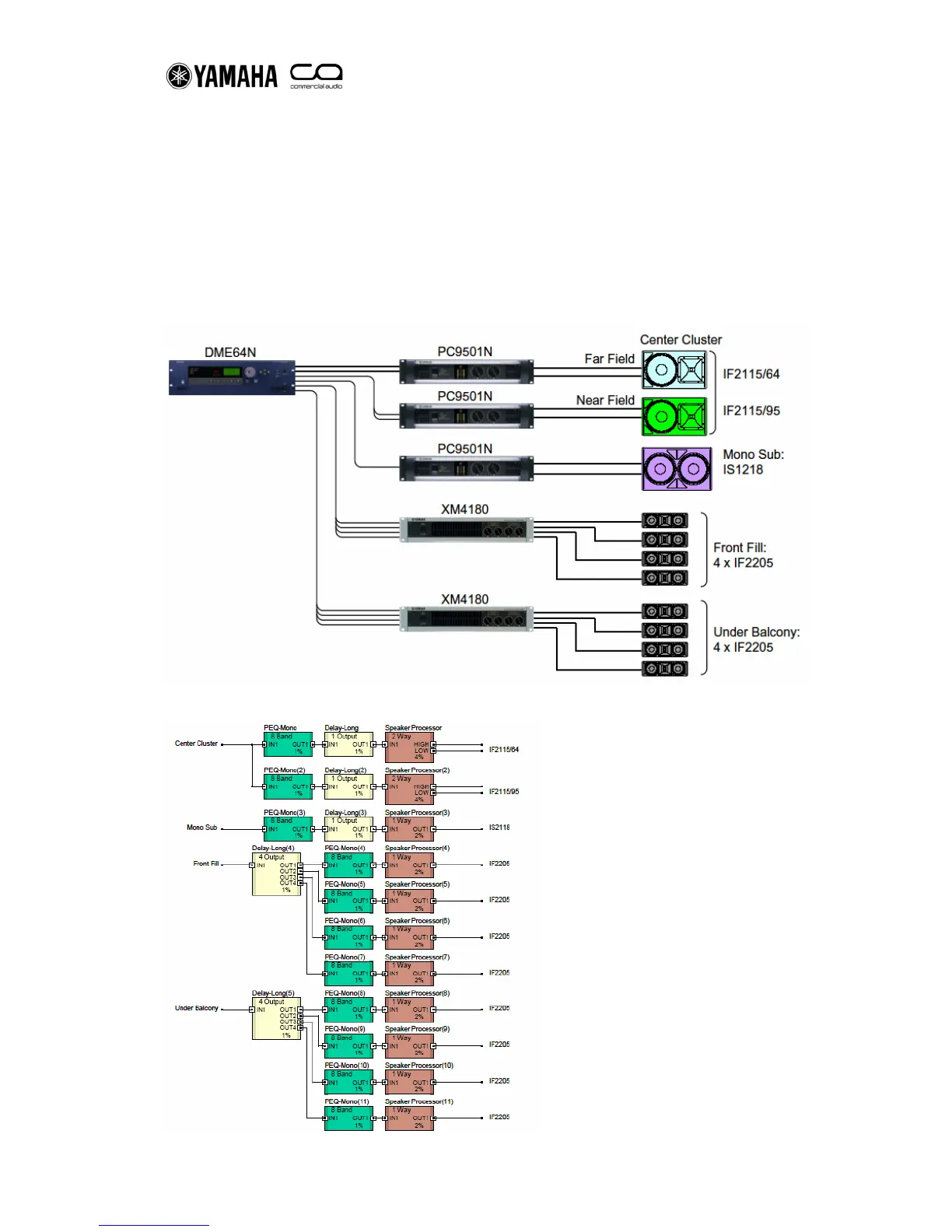

System Diagram
- Speaker Processing Component
1 x DME64N
- Power Amplifier
3 x PC9501N
2 x XM4180
- Center Cluster
1 x IF2115/64
1 x IF2115/95
- Subwoofer
1x IS1218
- Front Fill
4 x IF2205
- Under Balcony
4 x IF2205
- Mounting Hardware
1 x VAF2-2115 for Center Cluster
8 x UB2205 for Front Fill and Under
Balcony
DME Configuration Example
