Yamaha Installation Series Application Guide

Application Guide for
Yamaha Installation Series Speakers
4
Small Installation: Simple Center Cluster
This small installation example represents a typical simple center cluster application.
Applications
- Small Hall
- Small Church
- Meeting Room
- School Gymnasium
- School Auditorium

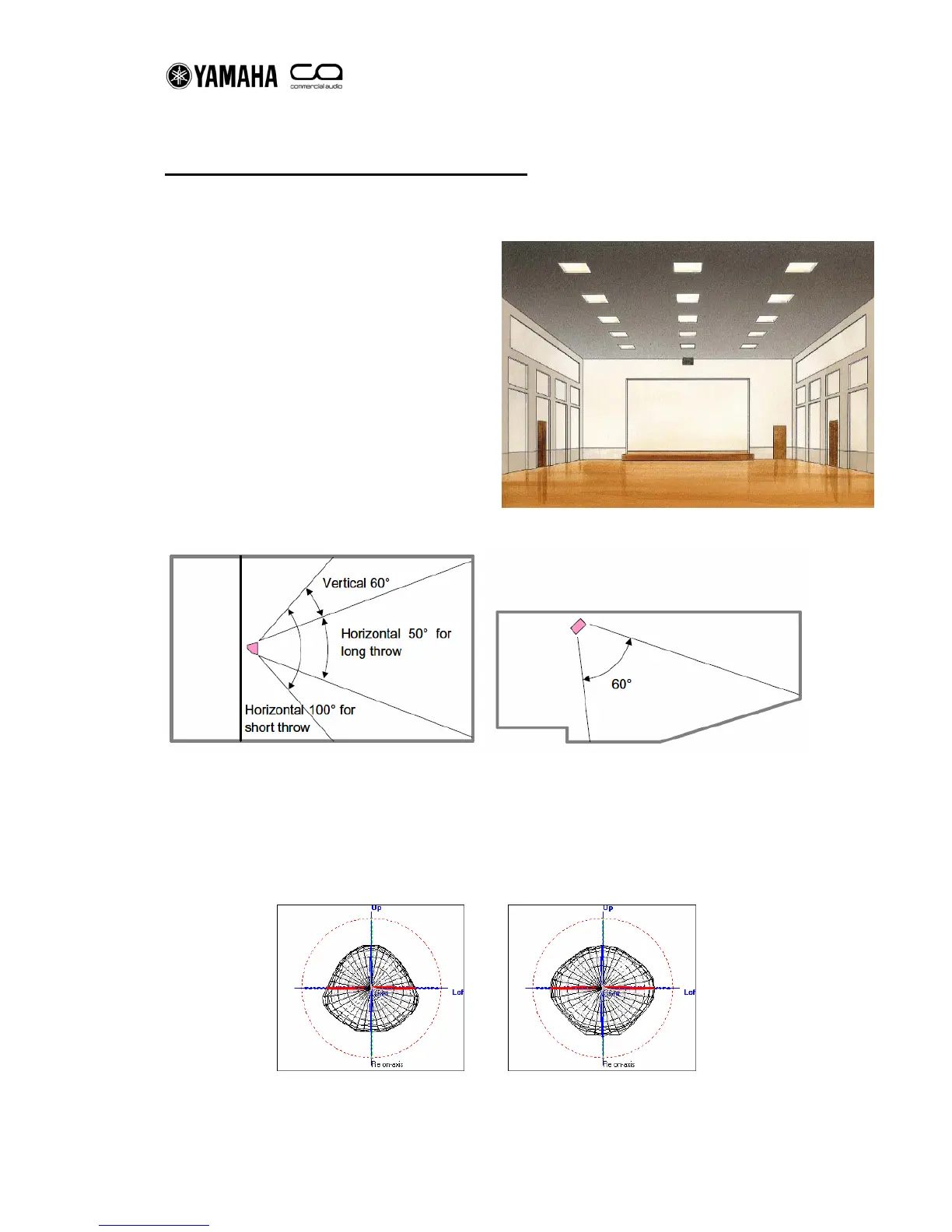

Speaker Layout
Speaker System Overview
• IF2115/AS is a good choice for a simple center cluster for small venue for speech system.
• Asymmetric CD horn can provide the narrow dispersion for far field and the wide dispersion for
near field.
Asymmetric horn Conventional horn
• Asymmetric CD horn is rotatable, allowing the speaker to be installed in either vertical or
horizontal orientation. Switchable between bi-amp or passive mode.
