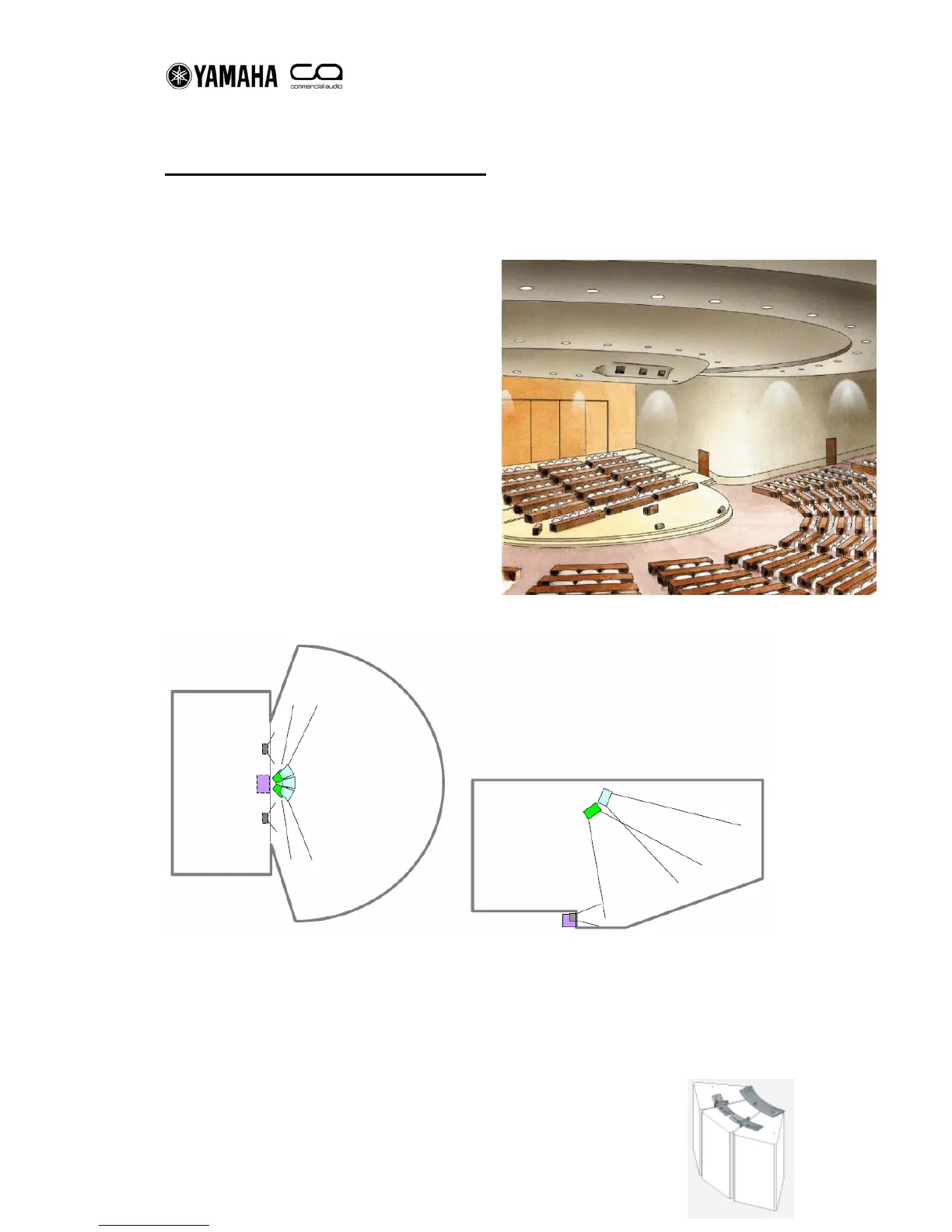

Application Guide for
Yamaha Installation Series Speakers
18
Medium Installation: Fan Shaped #2
This installation example represents a sound system for Fan Shaped Room covered by only
center cluster.
Applications
- House of Worship
- Hall
- Performing Arts Center
Speaker Layout
Speaker System Overview
This center cluster is covering the wide horizontal listening area.
Upper cluster of center cluster is composed of 3xIF2112/64 for long throw, lower cluster is
composed of 2x2112/95 for short throw.
Horizontal array frame is useful to combine 2 or 3 speakers horizontally and the splay angle is easy
to adjust in 5 degree increments.
Small front fills, IF2205, cover the front of stage area.
IS1218 dual 18” subwoofer allows for extended low
frequency bandwidth to meet music applications.
