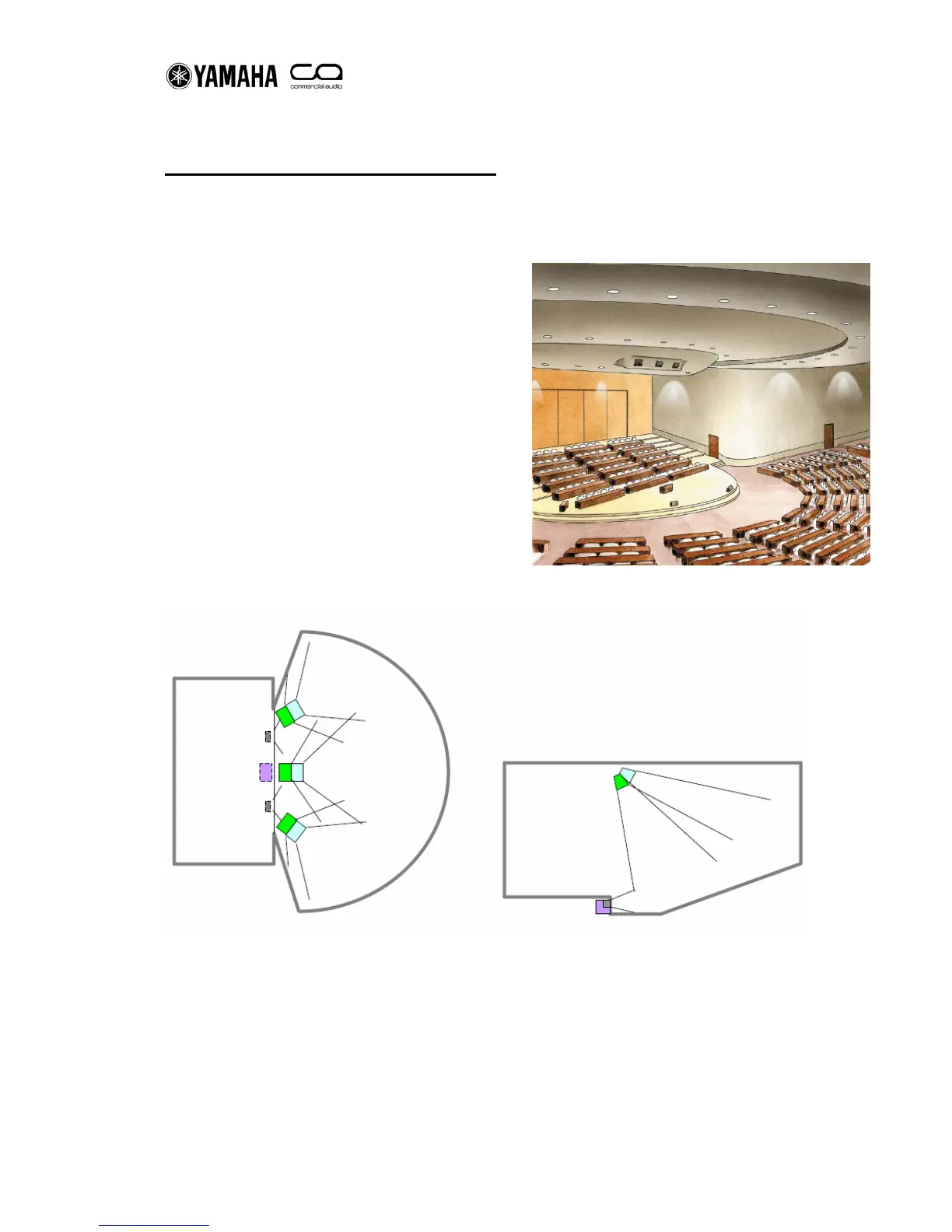

Medium Installation: Fan Shaped #1
This installation example represents a sound system for Fan Shaped Room covered by
three clusters.
Applications
- House of Worship
- Hall
- Performing Arts Center
Speaker Layout
Speaker System Overview
• These main speaker clusters are useful for fan shaped room needed wide horizontal coverage.
• Each main cluster is composed of IF2115/64 for long throw and IF2115/95 for short throw.
• Speakers in each main cluster are combined by Vertical array frame. The splay angle is easy to
adjust in 5 degree increments.
• Small front fills, IF2205, cover the front of stage area.
• IS1218 dual 18” subwoofer allows for extended low frequency bandwidth to meet music
applications
