Yamaha Installation Series Application Guide

Application Guide for
Yamaha Installation Series Speakers
8

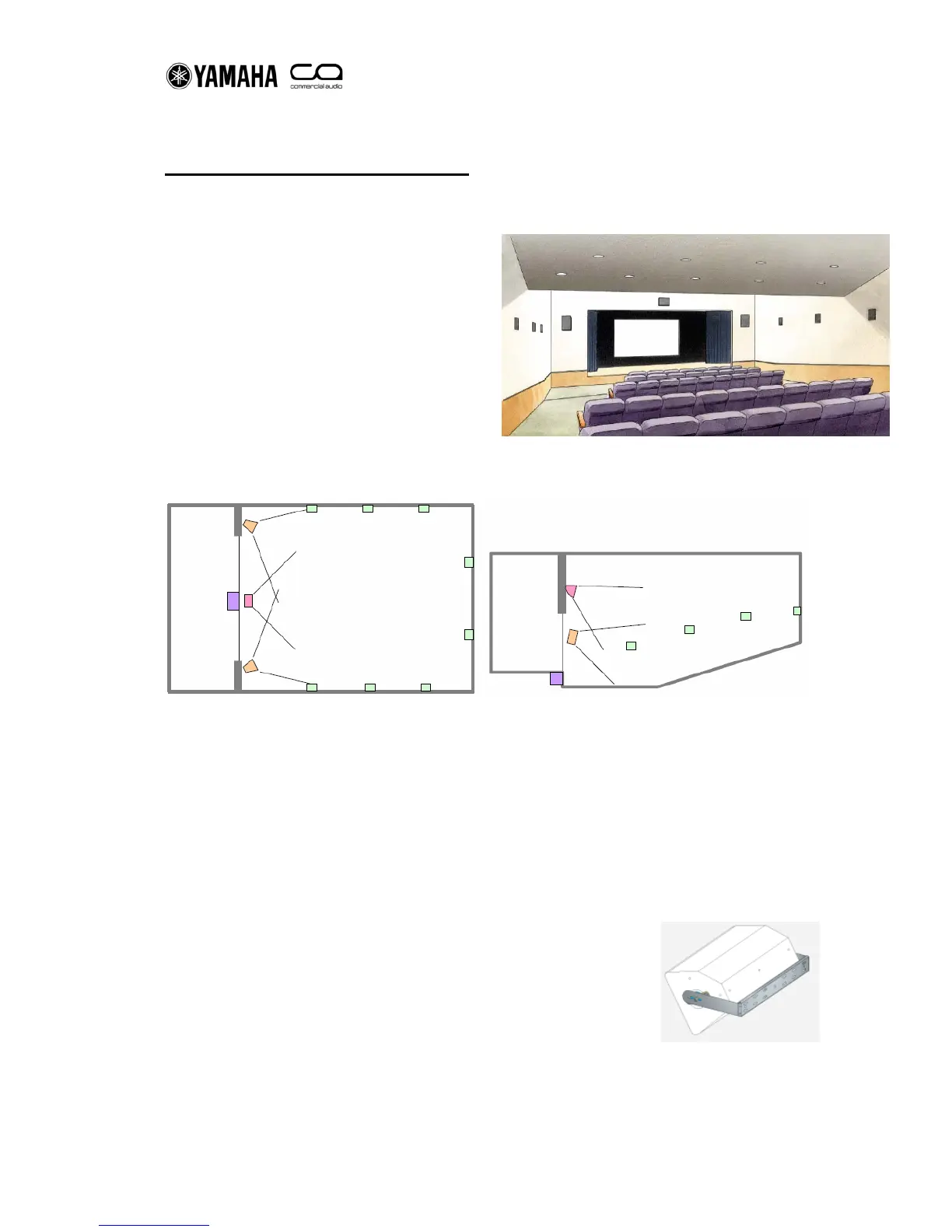

Small Installation: 5.1ch Surround
This small installation example represents a 5.1ch Surround application.
Applications
- Small Hall
- Meeting Room
- School
Speaker Layout
Speaker System Overview
• IF2112/95/AS for Left/Right/Center cluster, IS1215 for LFE, IF2108 for Surround is a good choice
for 5.1ch Surround system for small venue.
• All two-way and three-way models include a rotatable horn, allowing the speaker to be installed in
either vertical or horizontal.
• U-brackets are available for horizontal configuration.
• M8 screw nuts allow wall mounting in both horizontal and vertical orientation by using 3
rd
party
wall mount hardware such as Omni-Mount, Power-Drive.
• IF2112 can be operated in bi-amp or passive mode.
• IF2108 is designed for passive mode only.
• IS1215 can be operated in discrete or parallel mode.
U-Bracket
