Application Guide for
Yamaha Installation Series Speakers
7

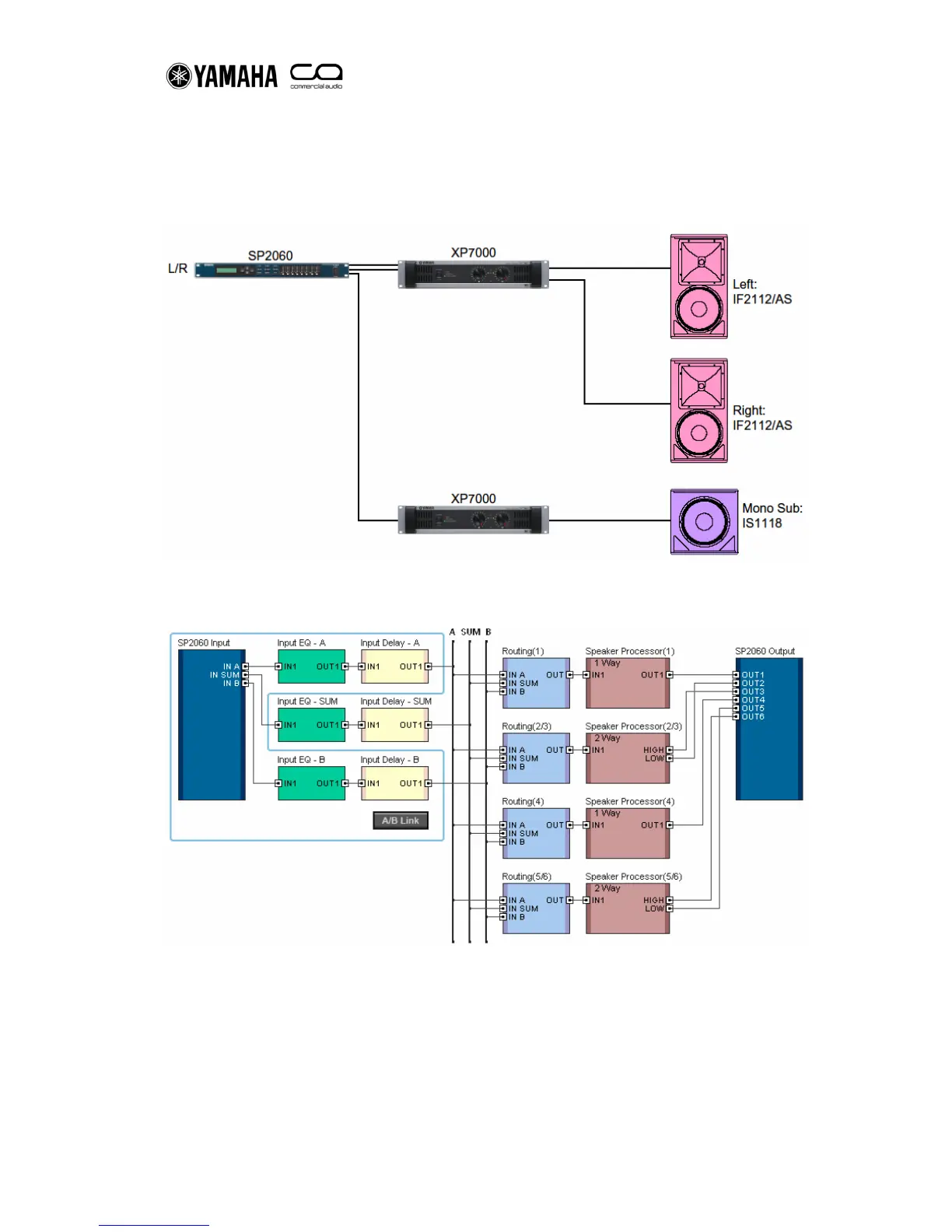

System Diagram
- Speaker Processing Component
1 x SP2060 (or DME24N)
- Power Amplifier
2 x XP7000
- Left/Right Cluster
1 x IF2115/AS for each
- Subwoofer
1x IS1118 (Bridged)
SP2060 Configuration Example
