Yamaha Installation Series Application Guide

Application Guide for
Yamaha Installation Series Speakers
24

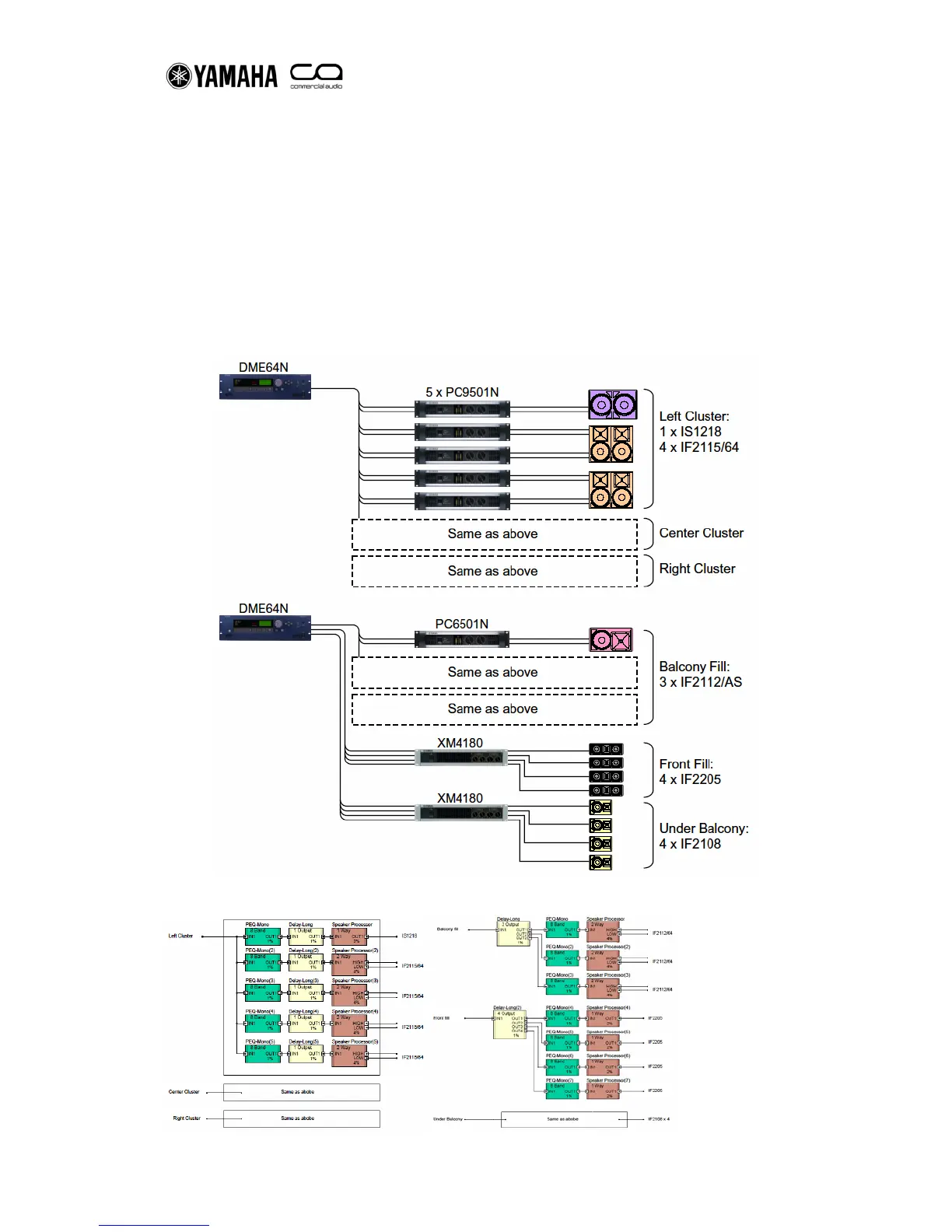

System Diagram
- Speaker Processing Component
2 x DME64N
- Power Amplifier
15 x PC9501N
3 x PC6501N
2 x XM4180
- Left/Right/Center Cluster
4 x IF2115/64 for each
1 x IS1218 for each
- Balcony Fill
3x IF2112/AS
- Front Fill
4 x IF2205
- Under Balcony
4 x IF2108
- Mounting Hardware
6 x HAF2-2112 for L/C/R Clusters
3 x UB2112 for Balcony Fill
4 x UB2205 for Front Fill
4 x UB2108 for Under Balcony
DME configuration example
