Application Guide for
Yamaha Installation Series Speakers
41

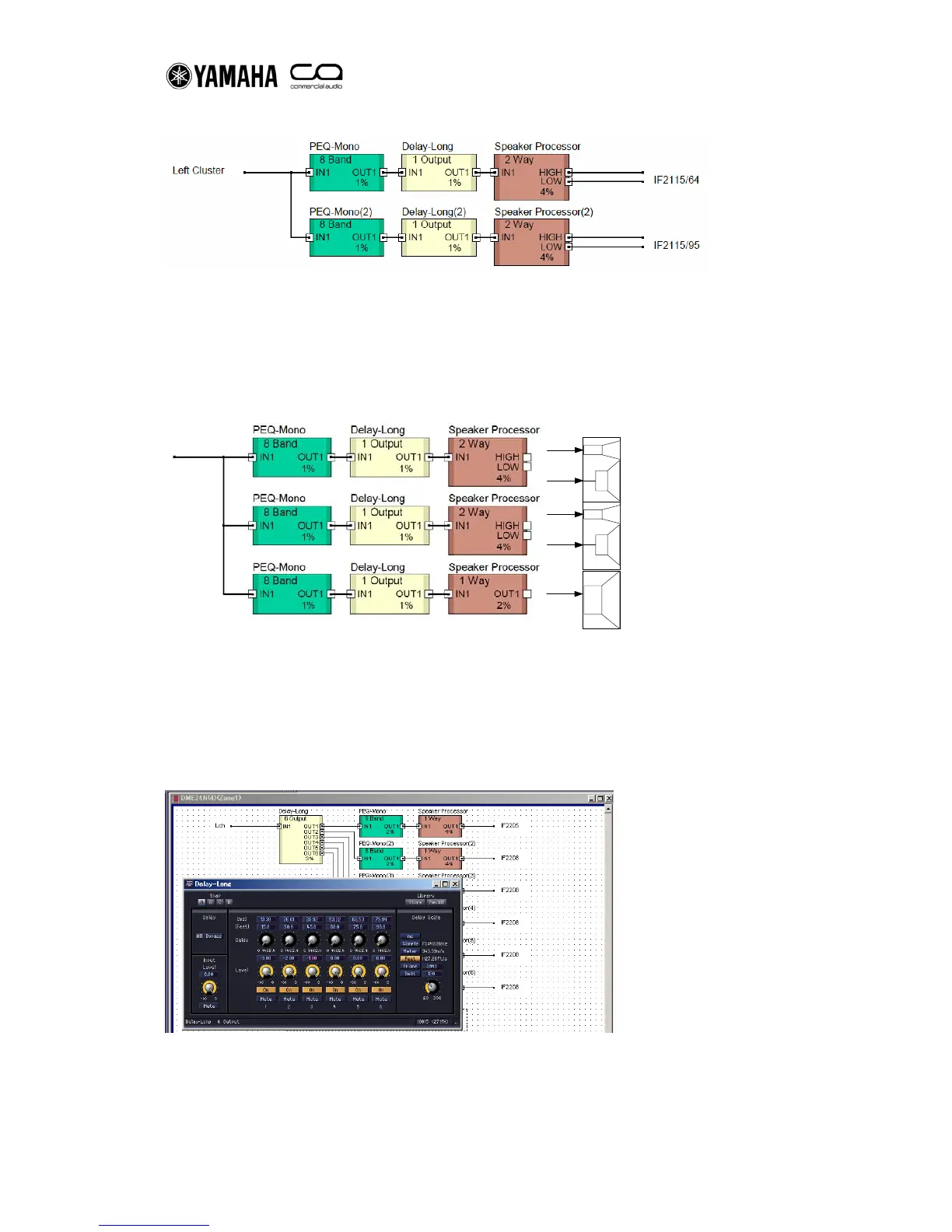

Fig. C: Simplified configuration in DME.
When using Installation Series Speakers in passive mode or using Subwoofers, “Speaker Processor
1Way” is recommended. Fig. D. shows the example of two Mid-High and 1 subwoofer system. It
has input level, Crossover (HPF and LPF), Delay (up to 500ms), 6 band PEQ, limiter and output
level. (DME has up to 6Way Speaker Processor components)
IF2115 biamp
IF2115 biamp
IS1118
Fig. D: DME configuration example of two Mid-High and 1 subwoofer system.
In the case of the balcony speakers, stage front speakers or simple symmetrical dispersion speakers,
Multi output delay will be useful because signal for each speakers is same and only delay and level
is changed and also the parameters of left side and right side is symmetrical. It is easy to set the
parameters using snapshot copy & paste.
Fig. E: Example of using multi-output delay
