37
MG82CX/MG102C
2-17-3 Frequency characteristic
Under the setting of Table 2-17-2, check that the output level at the INSERT OUT 1, 2 when the signal frequency is
set to 20 Hz and 20 kHz is within the range of ±3.0 dB compared with the output level when the signal frequency is
set to 1 kHz.
2-17-4 Distortion
Under the setting of Table 2-17-2, check that the distortion when the signal frequency is set to 20 Hz, 1 kHz, and 20
kHz is equal to or less than the values shown in Table 2-17-4.

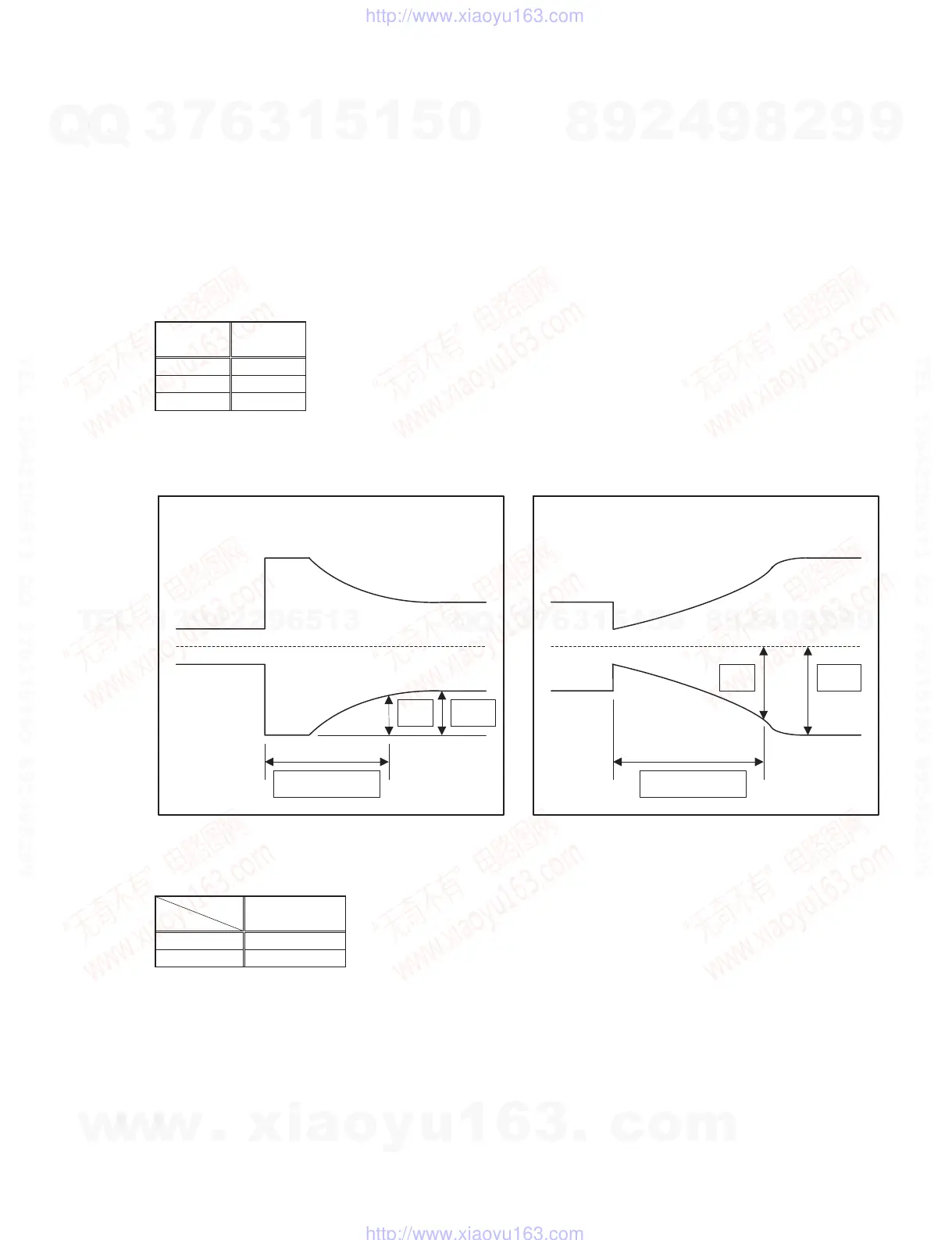

2-17-5 Attack, Release time
Under the setting of Table 2-17-2, check that the attack time and release time of output at the INSERT OUT 1, 2 are
within the range shown in Table 2-17-5.
* Attack time = Restoration time (at 90%) since the input is changed from –66.0 dBu to –56.0 dBu.
* Release time = Restoration time (at 90%) since the input is changed from –56.0 dBu to –66.0 dBu.
Table 2-17-4
Input
Frequency
Distortion
20 Hz 5.0 %
1 kHz 1.0 %
20 kHz 1.0 %
ATTACK TIME RELEASE TIME
90%
Restoration Time Restoration Time
100%
90% 100%
Table 2-17-5
INSERT OUT
(1, 2)
Attack time 15 ms - 35 ms
Release time 170 ms - 420 ms
