MG82CX/MG102C

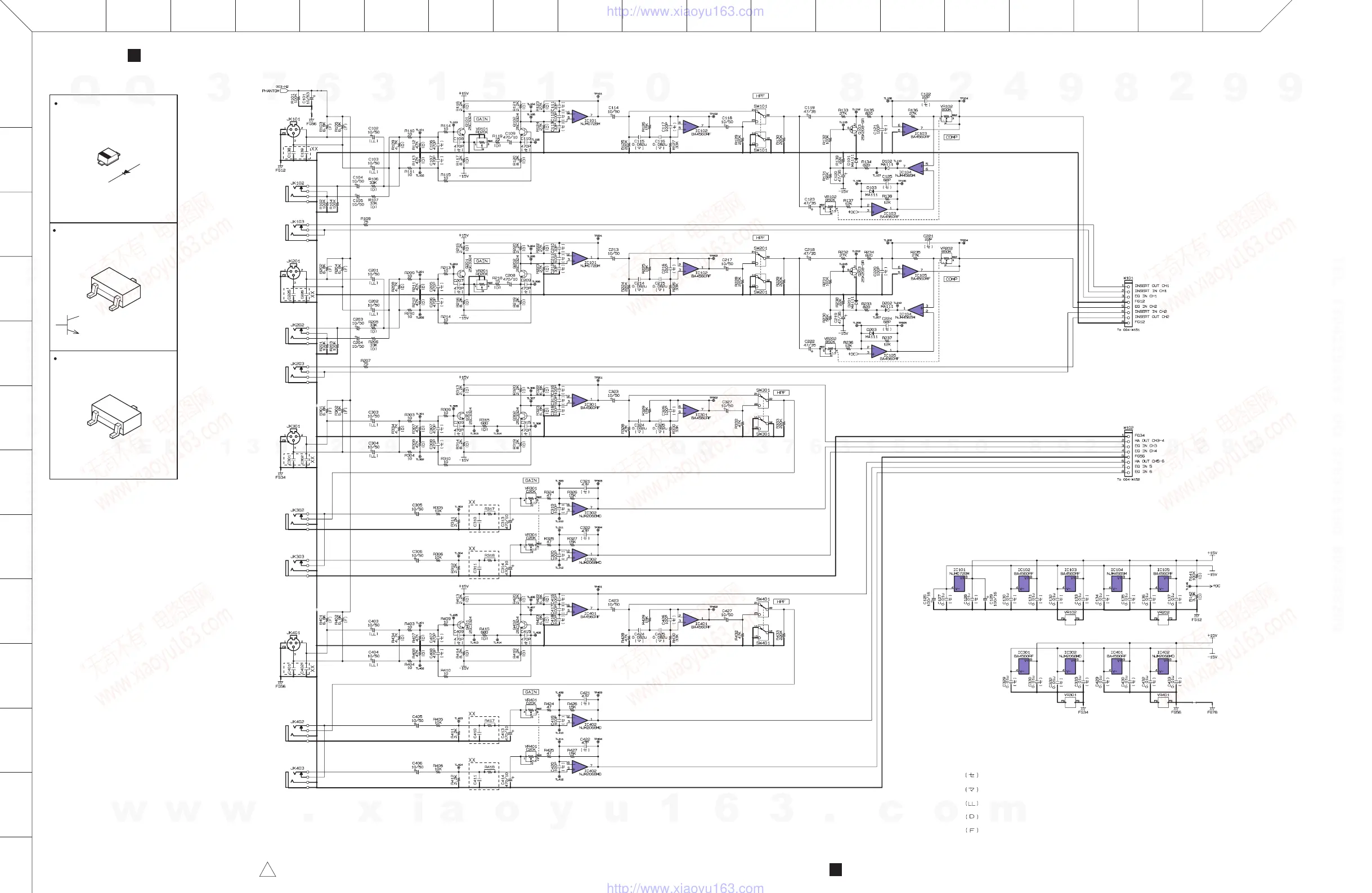

MAIN8 (JACK) CIRCUIT DIAGRAM (MG82CX) 001
MAIN8 (JACK) CIRCUIT DIAGRAM (MG82CX) 0016
28CC1-2001004885-1 2
OP AMP OP AMP
OP AMP
OP AMP
OP AMP
OP AMP
OP AMP
OP AMP
OP AMP
OP AMP
OP AMP
OP AMP
OP AMP
OP AMP
OP AMP
OP AMP
to MAIN8 (MAIN)
-W151
MIC (CH1)
[–60 to –16dBu]
[–60 to –16dBu]
[–60 to –16dBu]
[–60 to –16dBu]
[–34 to +10dBu]
[–34 to +10dBu]
[–34 to +10dBu]
[–34 to +10dBu]
[–34 to +10dBu]
[–34 to +10dBu]
0dBu
0dBu
MIC (CH2)
MIC (CH5/6)
MIC (CH3/4)
LINE (CH1)
LINE (CH2)
LINE L/MONO
(CH3)
LINE L/MONO
(CH5)
LINE R
(CH4)
LINE R
(CH6)
INSERT (CH1)
INSERT (CH2)
<Page 9: P-4>
to MAIN8 (MAIN)
-W152
<Page 9: P-6>
: Not installed
（未実装）
（セラミックコンデンサー）
（マイラーコンデンサー）
XX
: Ceramic Capacitor
: Mylar Capacitor
（電解コンデンサー）
: Electrolytic Capacitor
（金属被膜抵抗）
: Metal Film Resistor
（チップ抵抗）
: Carbon Resistor (chip)
MA111
(
VR496500
)
MAIN8: D101-103, D201-203
1: ANODE
2: CATHODE
1
2
2SC3324-GR, BL (V7421700)
TRANSISTOR
MAIN8: Q101, Q102, Q201, Q202,
Q301, Q302, Q401, Q402
1
3
2
1: BASE
2: EMITTER
3: COLLECTOR
1
2
3
2SK208-GR (WH249200)
FET
MAIN8: Q103, Q203
1
3
2
1: SOURCE
2: DRAIN
3: GATE
