MG82CX/MG102C

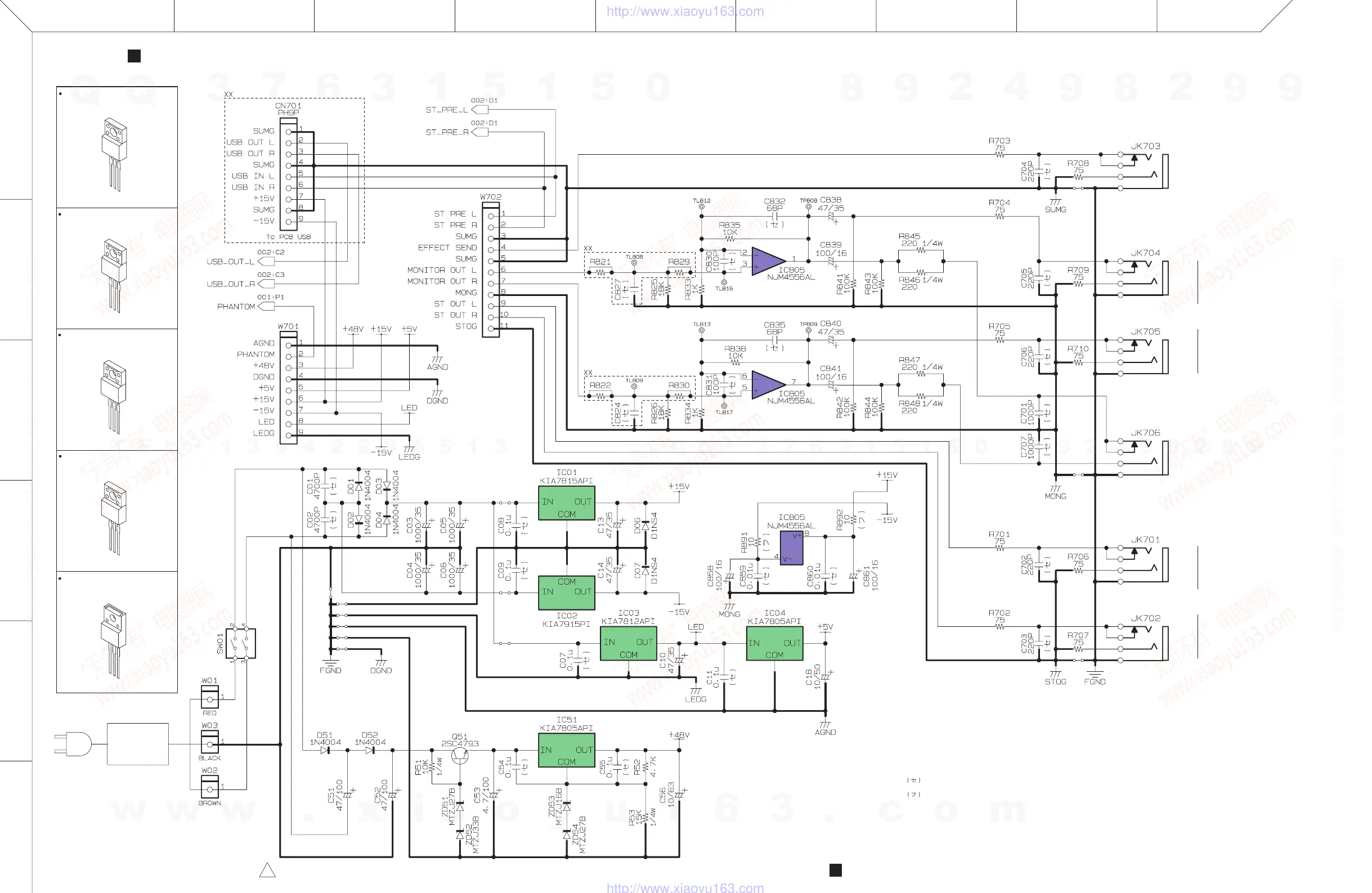

MAIN8 (JACK) CIRCUIT DIAGRAM (MG82CX) 003
MAIN8 (JACK) CIRCUIT DIAGRAM (MG82CX) 0038
28CC1-2001004885-3 2
AC POWER
ADAPTOR
PA-10
REGULATOR +15V
REGULATOR –15V
REGULATOR +12V
REGULATOR +5V
OP AMP
OP AMP
REGULATOR +5V
to MAIN8 (MAIN)
-W801
[+4dBu]
EFFECT SEND
L
R
<Page 11: G-8>
to MAIN8 (MAIN)
-W802
<Page 11: D-3>
: Not installed
（未実装）
（セラミックコンデンサー）
XX
: Ceramic Capacitor
[+4dBu]
MONITOR OUT
L
R
[+4dBu]
STEREO OUT
PHONES
[3mW @ 40ohms]
（不燃化カーボン抵抗）
: Frame Proof C. Resistor
KIA7815API-U/P (X4930A00)
REGULATOR +15V
MAIN8: IC01
1: INPUT
2: GND
3: OUTPUT
1
2
3
KIA7915PI-U/P (X4931A00)
REGULATOR –15V
MAIN8: IC02
1: COMMON
2: INPUT
3: OUTPUT
1
2
3
KIA7812API (X4153A00)
REGULATOR +12V
MAIN8: IC03
1: INPUT
2: GND
3: OUTPUT
1
2
3
KIA7805API/P(X4928A00)
REGULATOR +5V
MAIN8: IC04, IC51
1: INPUT
2: GND
3: OUTPUT
1
2
3
1
2
3
1: BASE
2:
COLLECTOR
3: EMITTER
2SC4793
(
VQ547300
)
TRANSISTOR
MAIN8: Q51
