4-14
SPEC

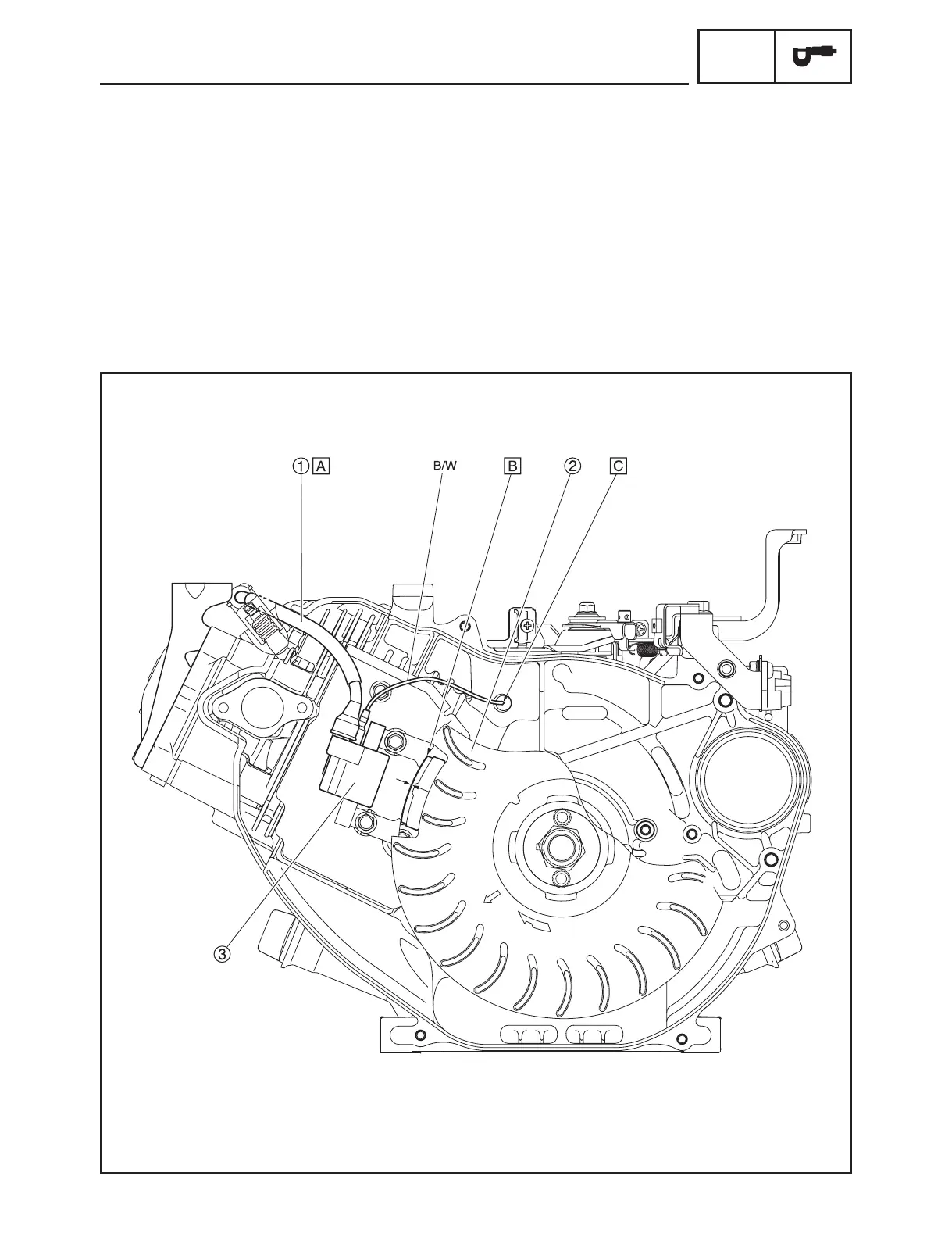

WIRE ROUTING DIAGRAM
TCI UNIT
1 High tension cord
2 Flywheel
3 TCI unit
A
Make sure that the high ten-
sion cord is not pinched when
installing the flywheel cover.
B
Adjust the TCI unit air gap
between 0.4–0.6 mm (0.0157–
0.0236 in) on both sides.
C
Pass the TCI unit lead through
the hole in the crankcase.
Color code
B/W .....Black/White
