Yamaha MX360 - Oil Level Switch (Crankcase Cover)

4-15
SPEC

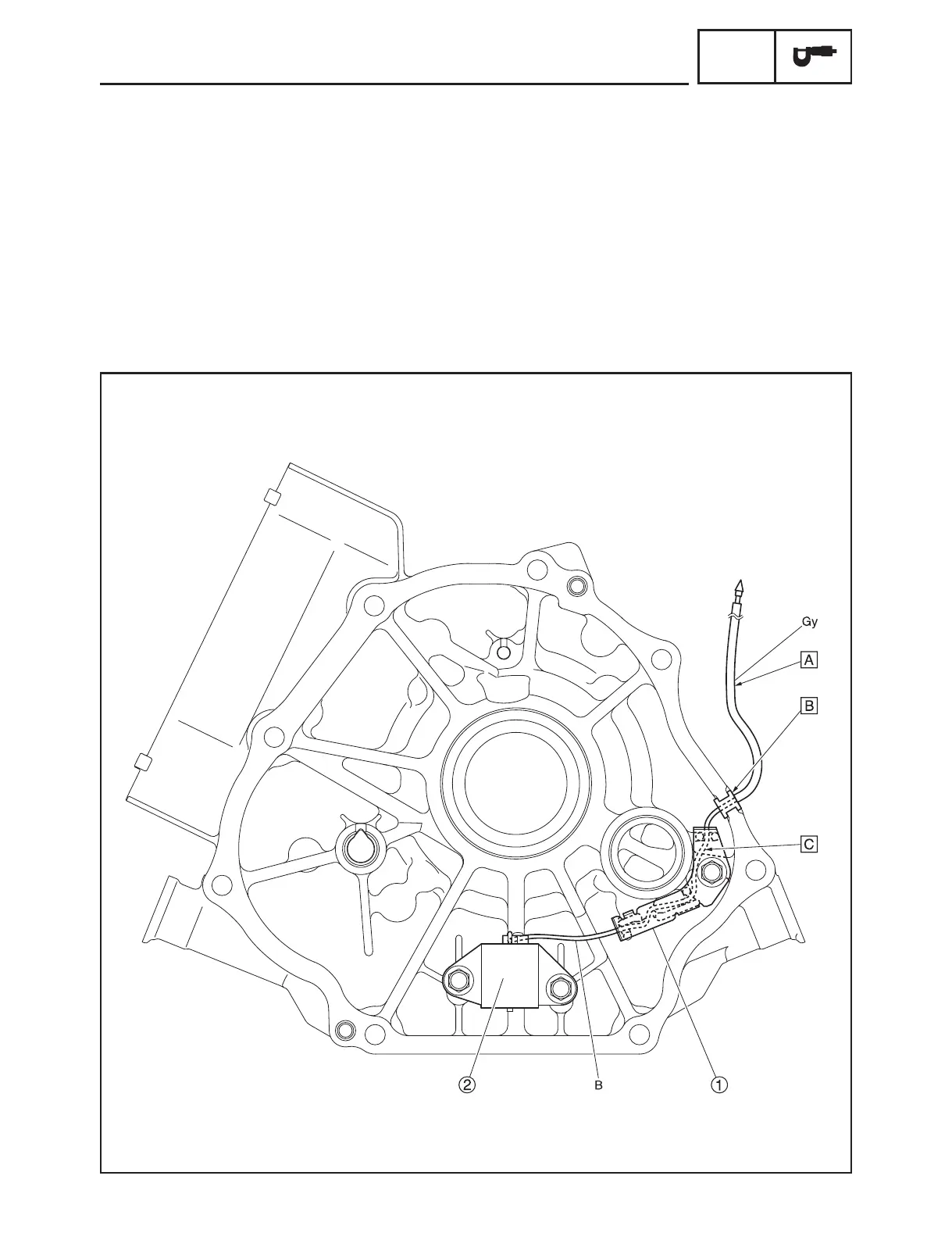

WIRE ROUTING DIAGRAM
1 Clamp
2 Oil level switch
A
The lead is black and the pro-
tector is gray.
B
Touch the tube (gray) with the
grommet.
C
Route the oil level switch lead
as shown.
Color code
B .........Black
Gy .......Gray
OIL LEVEL SWITCH (CRANKCASE COVER)
