Yamaha MX825 - Air Filter

3-3
1
2
3
4
5
6
7
8
9
10
ENGINE
AIR FILTER
AIR FILTER

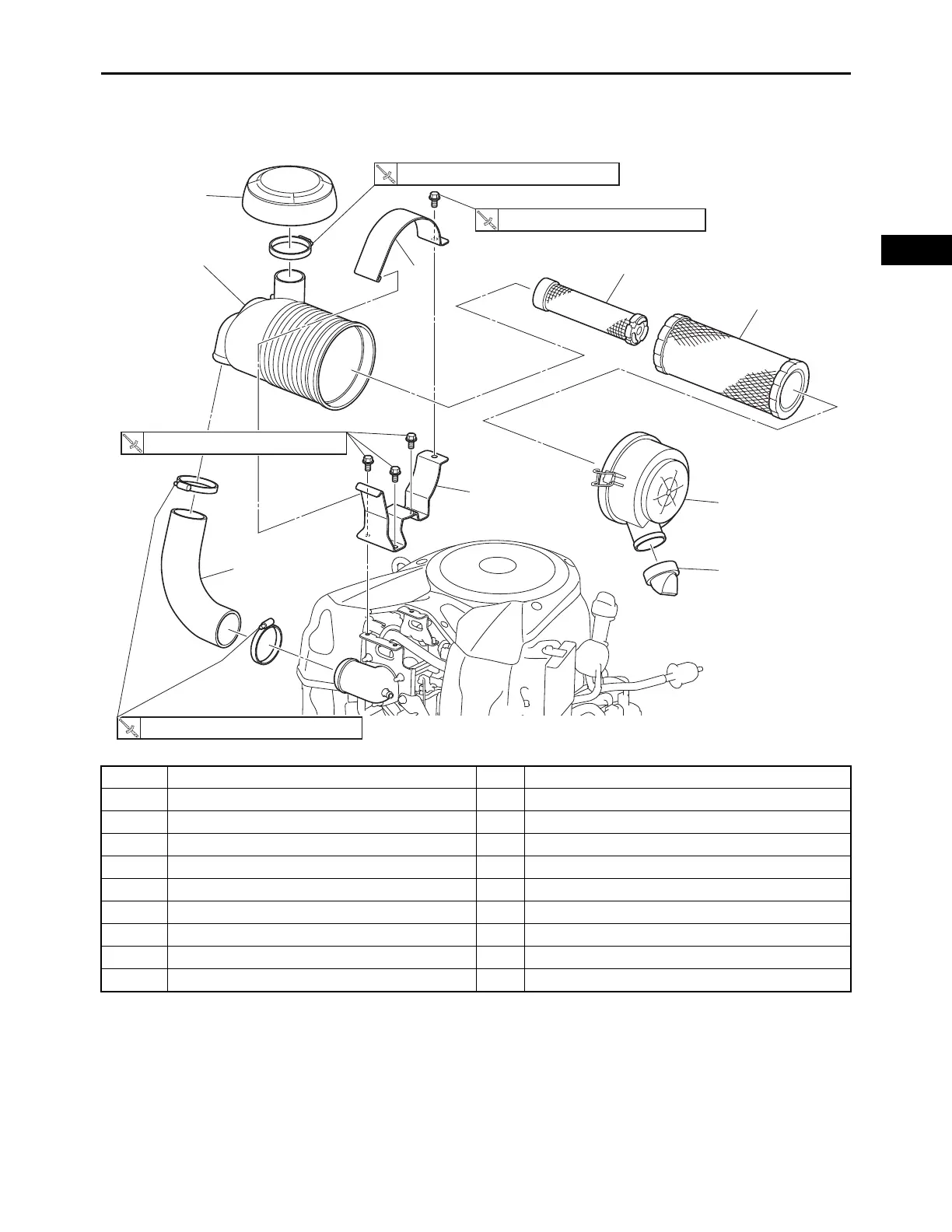

Order Job/Parts to remove Q’ty Remarks
Removing the air filter Remove the parts in the order listed.
1Dust cap 1
2 Air filter case cover 1
3 Air filter element 1
4 Inner element 1
5 Air filter cover 1 1
6 Air filter case stay 1
7 Air filter case 1
8Joint 2 1
1
2
3
4
5
6
6
7
8
10 N・m (1.0 kgf・m, 7.2 lb・ft)
1.8 N・m (0.18 kgf・m, 1.3 lb・ft)
1.8 N・m (0.18 kgf・m, 1.3 lb・ft)
7 N・m (0.7 kgf・m, 5.1 lb・ft)
