ENGINE
OIL PUMP

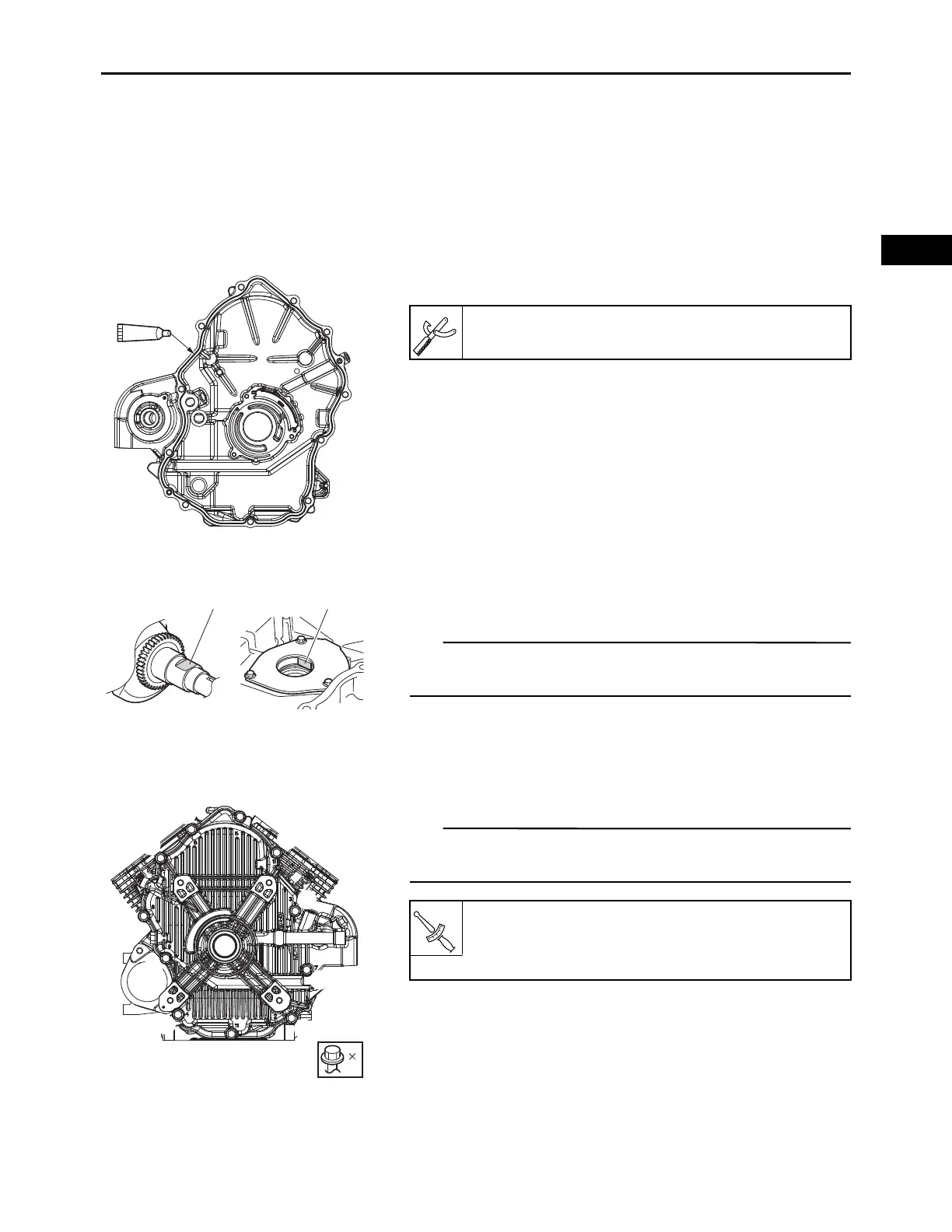

INSTALLING THE CRANKCASE COVER 2
1. Clean:
• Mating surfaces of the crankcase and the crank-
case cover 2
(with a cloth dampened with lacquer thinner)
2. Apply:
• Sealant
(onto the crankcase cover 2 mating surfaces)
3. Install:
• Crankcase cover 2
TIP
Align the inner rotor “a” of the oil pump with the flat portion
“b” of the crankshaft and install.
4. Install:
• Crankcase cover 2 bolts “1” to “11”
TIP
Tighten the bolts to the specified torque in two steps and in
order from “1” to “11”.
Three bond No.1217G®
ab
11
1
2
3
4
5
6
7
8
9
10
11
Crankcase cover 2 bolt:
1st: 12 N·m (1.2 kgf·m, 8.7 lb·ft)
2nd: 30 N·m (3.0 kgf·m, 22 lb·ft)
