Yamaha MX825 - Oil Cooler

3-5
1
2
3
4
5
6
7
8
9
10
ENGINE
OIL COOLER
OIL COOLER

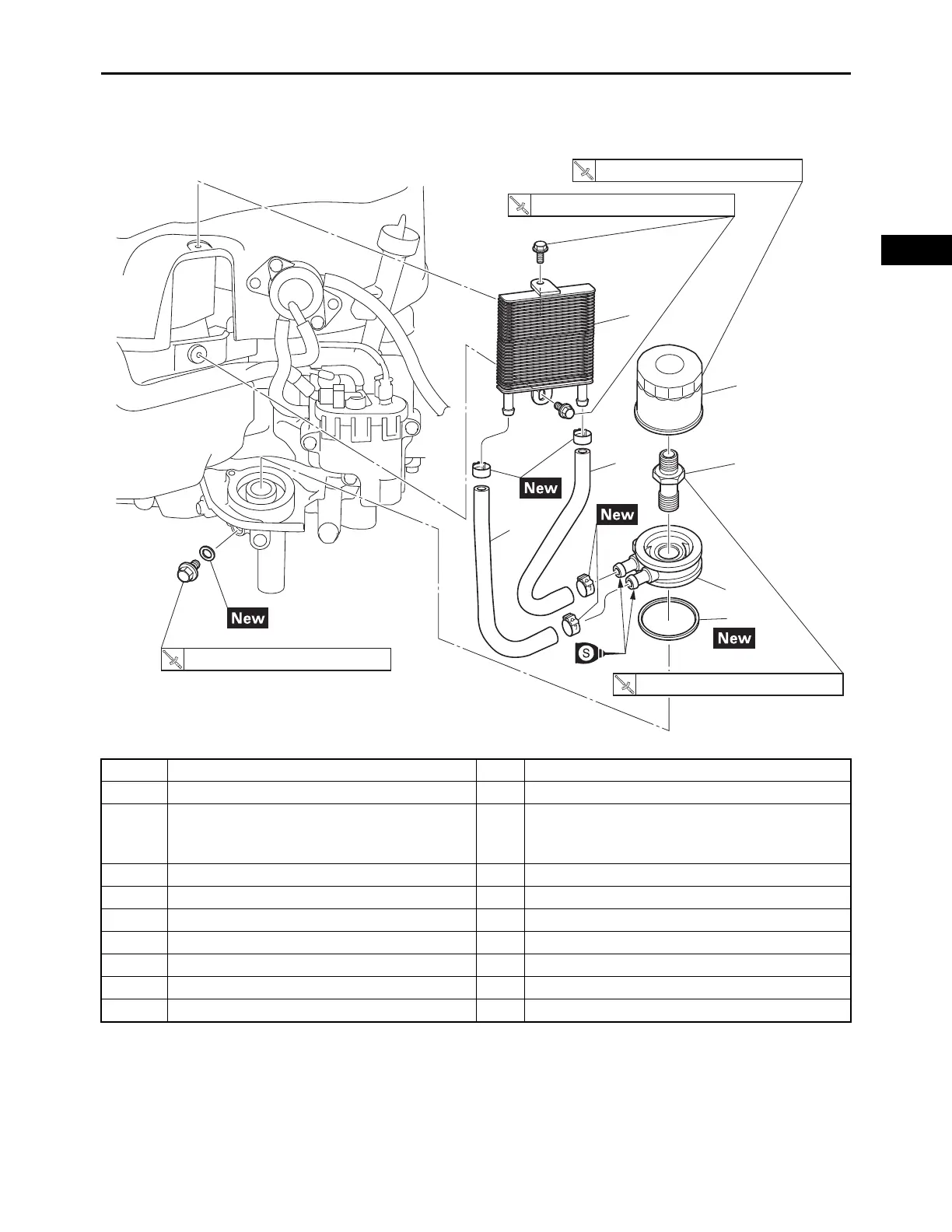

Order Job/Parts to remove Q’ty Remarks
Removing the oil cooler Remove the parts in the order listed.
Engine oil
Drain.
Refer to “REPLACING THE ENGINE OIL” on
page 2-6.
1 Oil cooler 1
2 Oil hose 1 1
3 Oil hose 2 1
4 Oil filter 1
5 Adapter union bolt 1
6 Adapter 1
7 Oil seal 1
17 N・m (1.7 kgf・m, 12 lb・ft)
14 N・m (1.4 kgf・m, 10 lb・ft)
9 N・m (0.9 kgf・m, 6.5 lb・ft)
62 N・m (6.2 kgf・m, 45 lb・ft)
1
2
3
4
5
6
7
